Product Description

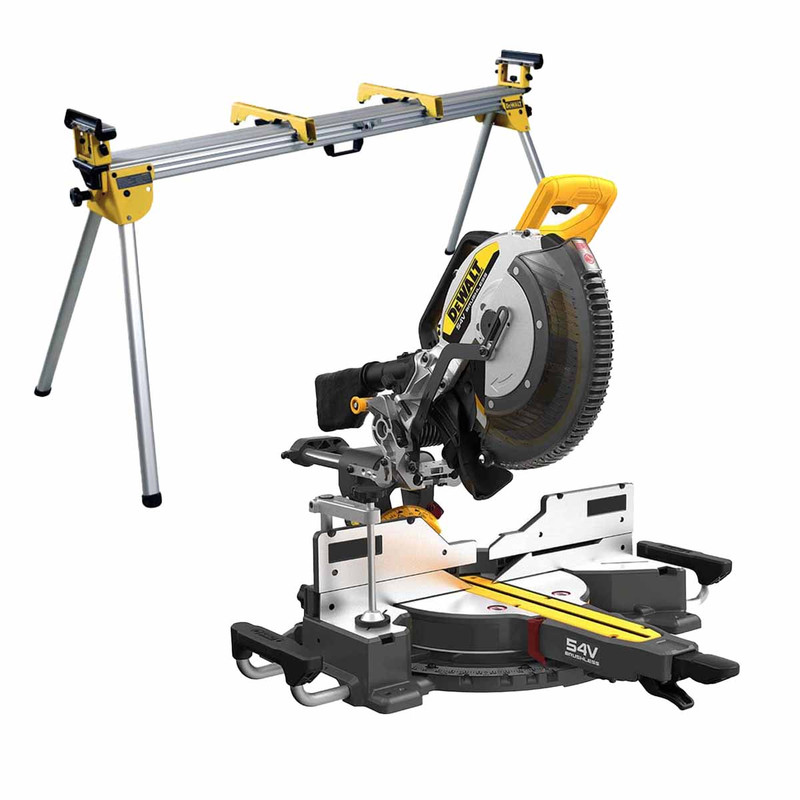

DeWalt DCS781N 54V XR Flexvolt Brushless 305mm Mitre Saw with DE7023 Universal Extendable Mitre Saw Stand

The DeWalt DCS781N is a powerful 54V XR FlexVolt brushless mitre saw with a large 305mm blade, delivering exceptional accuracy and cutting capacity for demanding applications. It features a double bevel design, XPS shadow line for precise cuts, and advanced dust extraction compatibility, making it ideal for professional use on site.

Supplied with the DE7023 universal stand, it provides a stable and extendable work platform for larger materials, along with essential accessories including a blade, dust bag, and material clamp—offering a complete, job-ready setup.

Features & Specification:

DCS781N 54V XR Flexvolt Brushless 305mm Mitre Saw:

• For 0.1° accuracy in critical applications, base and fence were designed, manufactured, and scrutinised to the highest levels of accuracy.
• With the help of a newly created Cam action mitre lock function, the user can easily modify angles between 0° and 50° left and 0° and 60° right.
• Compact and lightweight design elements result in a saw with application-specific capabilities that is simpler to transport about the jobsite.
• With the help of the cutting-edge grooving stop, grooving and rebating applications can have their cutting depth adjusted.
• In big material cuts at any angle or combination of angles, the massive dual sliding fence provides the most support possible.
• In order to cut materials with the greatest precision while still being lightweight, linear 20mm horizontal rail is equipped with three linear roller bearings.
• Quick release Bevel angles up to 48° left and right can be accurately and easily set using bevel setting.
• With the help of the XPS Shadow line cut indicator, the blade can be quickly and accurately aligned while the work piece is illuminated for greater efficiency.
• Machined side handles improve mobility and handling, comply with the most recent IEC table specifications, and provide a secure platform for broader material. A stabiliser is also supplied for use when the table is not on a stand.
• You get more run time on the job site with up to 675 cuts of 3 14" (95mm) MDF Base moulding (skirting) on a single 9.0ah battery charge.
• Direct connection to the vacuum through wireless tool control extends runtime and boosts effectiveness.
• The visibility of the cut line is improved, and the jobsites are cleaner and safer with AIRLOCK compatible dust extraction.
• Voltage: 54V
• Battery Type: Lithium-Ion
• Battery Compatibility: Dewalt FLEXVOLT Li-Ion
• Includes Case: No
• Brushless Motor: Yes
• Blade Diameter: 305mm
• No Load Speed (RPM): 3800
• Mitre Capacity: (Left 50*)(Right 60*)
• Bore Size: 30mm
• Max Cutting Capacity at 0°: 114mm x 284mm
• Max Cutting Capacity at 45°: mitre 114mm x 200.5mm
• Power Supply: Cordless
• Buying Option: Body Only
• Product Weight: 6.7kg

DE7023 Universal Extendable Mitre Saw Stand:

• 1.7 metre beam extends to support up to 3.83 metres for use with large workpieces
• The leg stand has a unique bracket mounting system that takes all DeWalt and most competitive mitre saws.
• The beam can support up to 227Kg providing significant flexibility and capacity
• Quick release spring loaded retractable legs create a secure working platform on the work site.
• A convenient carry handle on the underside of the stand ensures easy single-handed transportation
• Fits the following saws: DW777, DW712, DW717, DW718, DW780.
• Height: 820mm.
• Closed Length: 1.7m.
• Open Length: 3.83m.
• Max. Loading: 182kg.
• Weight: 19.8kg.

What is Included:

• 1x DCS781N 54V XR Flexvolt Brushless 305mm Mitre Saw
• 1x DE7023 Universal Extendable Mitre Saw Stand
• 1x DT99575-QZ 60T Extreme Blade
• 1x Dust Bag
• 1x Material Clamp
