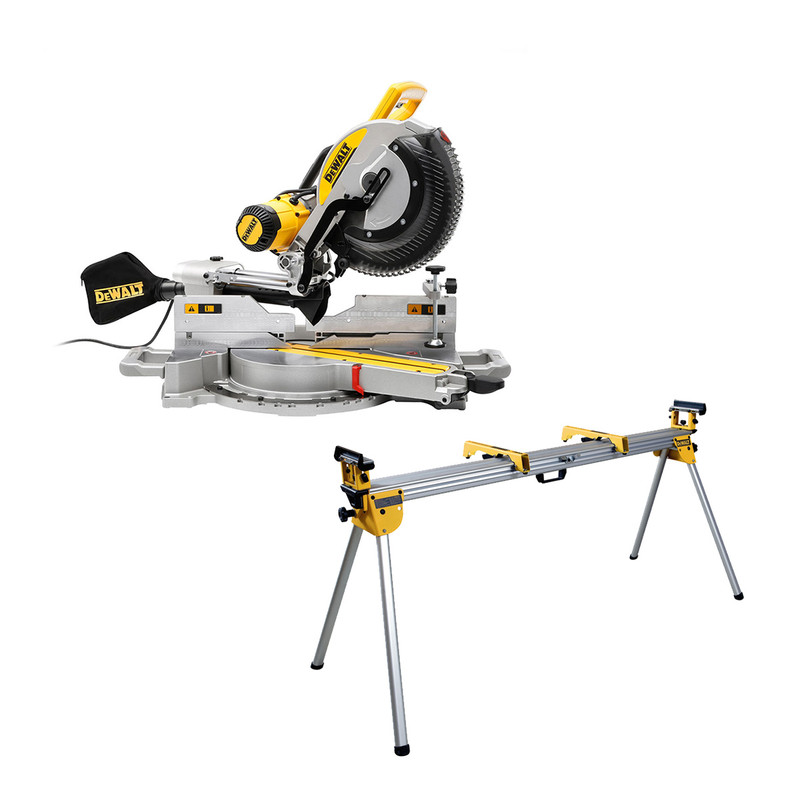

DeWalt DWS780-LX 110V 1675W 305mm Mitre Saw with DE7023-XJ Universal Mitre Saw Stand

Description

DeWalt DWS780-LX 110V 1675W 305mm Mitre Saw with DE7023-XJ Universal Mitre Saw Stand

The DWS780-LX mitre saw is the evolution of the highly popular DW718XPS and features increased capacity, a brighter XPS system, increased portability and better dust extraction. With massive cutting capability, this DeWalt Mitre Saw performs in both small profiles and large construction timbers up to 110 x 303 mm. The XPS Shadow line cut indicator provides accurate and fast alignment of the blade while lighting the job in hand for a faster work rate, with no adjustment required. Comes supplied with a DE7023-XJ Universal Mitre Saw Stand.

Features & Specification:

DWS780-GB 305mm Mitre Saw 1675W 110V

• POWERFUL 1675W MOTOR: High performance in all applications
• SPEED CONTROL: Adjust cutting speed for ultimate control when cutting wood and other materials
• IMPRESSIVE CROSS CUT CAPACITY: 110mm x 303mm at 90°
• LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of
• angles
• COMPACT & LIGHTWEIGHT: Huge cut capacities, with a lightweight compact design for easy transport around the jobsite
• XPS SHADOWLINE: Provides fast, accurate alignment of the blade with no adjustment required
• STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 12.25, 15, 22.5, 31.6 and 45 degrees
• AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection
• CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing for adjusting angles between 0° - 50° quickly left and 0° - 60° right
• DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
• DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications
• MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
• 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration
• Blade Bore [Metric]: 30 mm
• Blade Speed: 1900-3800 rpm
• Max. Cutting Capacity (45°/45°): 211 x 63 mm
• Max. Depth of Cut: 170 mm
• Saw Blade Thickness: 2.6 mm
• Max. Cutting Capacity (90°/90°):303 x 110 mm
• Product Width: 470 mm
• No Load Speed (RPM): 1900-3800
• Max. Cutting Capacity (45°/90°): 211 x 112 mm
• Product Height: 396 mm
• Product Weight: 25.5 Kg
• Blade Diameter: 305 mm
• Supplied in Storage Case Indicator: No
• Max. Cutting Capacity (90°/45°): 268 x 63 mm
• Power Source: Corded
• Power Input: 1675 W
• Product Length: 770 mm

DE7023-XJ Universal Mitre Saw Stand

• 1.7 metre beam extends to support up to 3.83 metres for use with large workpieces
• The leg stand has a unique bracket mounting system that takes all DeWalt and most competitive mitre saws
• The beam can support up to 227 kg, providing significant flexibility and capacity
• Quick-release, spring-loaded, retractable legs create a secure working platform on the work site
• A convenient carry handle on the underside of the stand ensures easy single-handed transportation
• Fits the following saws: DW777, DW712, DW717, DW718, DW780
• Height: 820mm
• Closed Length: 1.7m
• Open Length: 3.83m
• Max. Loading: 182kg
• Weight: 19.8kg

What is included:

• 1x DeWalt DWS780-LX 305mm Mitre Saw 1675W 110V
• 1x DeWalt DE7023-XJ Universal Mitre Saw Stand
