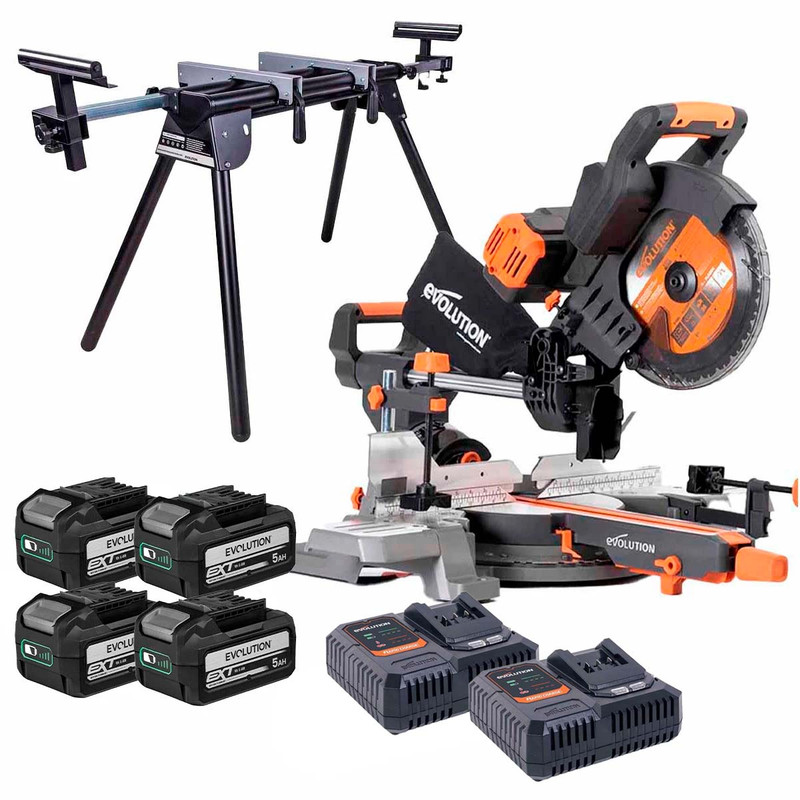

Evolution R255SMS-DB-Li 36V EXT Double Bevel Mitre Saw with Stand and 4x 5.0Ah Batteries

Description

Evolution R255SMS-DB-Li 36V EXT Double Bevel Mitre Saw with Stand and 4x 5.0Ah Batteries

The Evolution R255SMS-DB-Li is a powerful 36V cordless double bevel mitre saw kit designed for professional-grade cutting performance across wood, metal, plastics, and composite materials. Powered by Evolution’s EXT battery platform using dual 18V batteries, it features a brushless motor, 255mm multi-material blade, shadow line cutting guide, and precise bevel and mitre adjustments for accurate compound cuts.

This complete package includes four 5.0Ah batteries, a dual-port fast charger, and a heavy-duty mitre saw stand with extendable arms, making it ideal for both workshop and site use. With features such as soft start, electronic blade brake, dust extraction compatibility, and virtually spark-free metal cutting, it offers excellent versatility, portability, and safety for demanding trade applications.

Features & Specifications:

R255SMS-DB-Li 36V EXT Double Bevel Mitre Saw:

• Capable of double bevel cuts with a range of +/- 48° (left and right) and +/- 50° mitre angles.
• Features a high-power 36V Brushless DC motor for efficient operation.
• Utilises the EVO36 Powertrain, powered by 2x 18V Dual Batteries, optimised for extended battery life and runtime.
• Fast charge time of 60 minutes with 2 x 5Ah batteries.
• Offers accurate bevel, mitre, and compound cuts with detent stops at popular angles.
• Equipped with a stainless steel mitre angle guide for precise adjustments.
• Compatible with Mitre Saw Stands for enhanced support and stability.
• Features a Shadow Line kerf width blade cutting guide for accurate measurements.
• Multi-material capability with a premium Japanese 28T Tungsten Carbide Tipped TCT blade for cutting wood, metal, plastic composites, and more.
• Provides virtually spark-free metal cuts with no heat, burrs, and an instantly workable finish.
• Includes a Zero Clearance Insert for improved cutting accuracy.
• Depth Stop feature enables precise trench cuts, while the Back Stop feature allows maximum depth cuts.
• Dual-size blade arbour of 25.4mm and 5/8".
• Constructed with a cast alloy base and side extensions for durability.
• Features ergonomic ambidextrous handles for comfortable control.
• Improved front and top clamps with a self-levelling design for convenience.
• Incorporates Soft Start and quick-stop Electronic Blade Brake for safety.
• Compatible with vacuum systems for up to 97% dust extraction, using R11VAC-LI and R15VAC.
• Includes a Dust Bag and Dust Port Adaptor for cleaner work environments.
• Offers single-bolt blade change for quick and easy replacement.
• Integrated Carry Handles for portability.
• Compatible with diamond masonry blades.
• Blade change tool included for quick swaps.
• Provides EXT Li-ion cordless performance and versatility.
• Compatible with the Erbauer EXT battery system.
• Voltage / (Hz): 36v
• No Load Speed (min-1 rpm): 3,000rpm
• Net Weight: 16.6kg / 18kg
• Dust port Adaptor Size: 35mm
• Tool Dimensions: 451mm x 998mm x 771mm
• Mild steel Plate - Max Thickness: 6mm
• Mild Steel Tube Max Wall Thickness: 3mm
• Minimum Size Offcut (zero clearance insert): 20mm
• 0º Mitre x 0º Bevel: 305mm x 90mm
• 45º Mitre x 0º Bevel: 215mm x 90mm
• 0º Mitre x 45º Bevel (left): 305mm x 52mm (300mm x 33mm right)
• 45º Mitre x 45º Bevel: 215mm x 33mm
• Mitre Range: 50°- 50°
• Bevel Range: +/- 48° L&R
• Blade Diameter: 255mm
• Bore Diameter: 25.4mm
• No of Teeth: 28T
• Kerf: 2mm
• Sound pressure level Lpa: 84.5 db (A); K=3db (A)
• Sound power level Lwa: 97.5 db (A); K=3db (A)

R18BAT-Li5 18V EXT 5.0Ah Li-Ion Battery:

• EXT Li-ion cordless performance
• Over/under voltage protection
• Temperature protection
• Battery charge level indicator
• High capacity Premium 18650 cells
• Fast charge capable 60 mins
• Lightweight compact design
• Long run times
• Fits all evolution EXT cordless tools
• Erbauer compatible connector
• Amperage: 5.0Ah
• Voltage: 18V
• Chemistry: Li-ion
• Number of Cells: 10
• Weight: 720g
• Charge Time: 60 min.

R18RCH-Li2 Cordless 18V Li-Ion EXT Dual Port Fast Charger:

• EXT Li-ion cordless performance
• Rapid charger
• Variable current smart charging
• Overcharge protection
• Charge state indicator
• Lightweight compact design
• Suitable for all EXT batteries
• Single charge port
• 2-Year limited warranty
• Erbauer EXT battery system compatible
• Product Code: 108-0001A
• Charging Ports: 2
• Charging Voltage: 2x 21v
• Nominal Battery Voltage: 18 V
• Peak Charging Current: 2x 6A
• Input Voltage: 230/240V
• Dimensions: 330 x165 x70mm
• Weight: 1.66kg

005-0001 Mitre Saw Stand with Extendable Arms:

• Quick & easy set-up.
• Easy to transport and store away.
• Fits most brands of mitre saws.
• Height adjustable rollers with built-in end stop. Perfect for repeat cutting.
• Quick-release brackets for fast saw fitting and removal.
• Support up to 3m long work-pieces and up to 150kg of weight.
• 3 Year limited warranty.
• Max. Length Material Support: 3m
• Max. Load: 150kg
• Max. Saw Mounting Hole Spacing: 680mm x 330mm
• Collapsed Product Dimensions: 1000mm x 280mm x 230mm
• Assembled Product Dimensions: 1100mm x 600mm x 750mm
• Arms Fully Extended Product Dimensions: 1970mm x 600mm x 750mm
• Packaging Dimensions: 945mm x 265mm x 300mm
• Product Weight: 15.5kg
• Packaged Weight: 17.65kg

What is included:

• 1x Evolution R255SMS-DB-Li 36V EXT Double Bevel Mitre Saw
• 4x Evolution R18BAT-Li5 18V EXT 5.0Ah Li-Ion Batteries
• 1x R18RCH-Li2 Cordless 18V Li-Ion EXT Dual Port Fast Charger
• 1x 005-0001 Mitre Saw Stand with Extendable Arms
• 1x Instruction Manual
• 1x Multi-Material 28T TCT Blade 255mm
• 1x Top & Front Clamps
• 1x Zero Clearance Insert
• 1x Machine Table Extension = 4x socket headed screws
• 1x Double Ended Hex Key M6 x M4
• 1x Rotary Table & neck
• 1x Cutting Head
• 1x Carriage Slides
• 1x Multi-locking Knob
• 1x Dust Port Adaptor
• 1x Dust Bag
