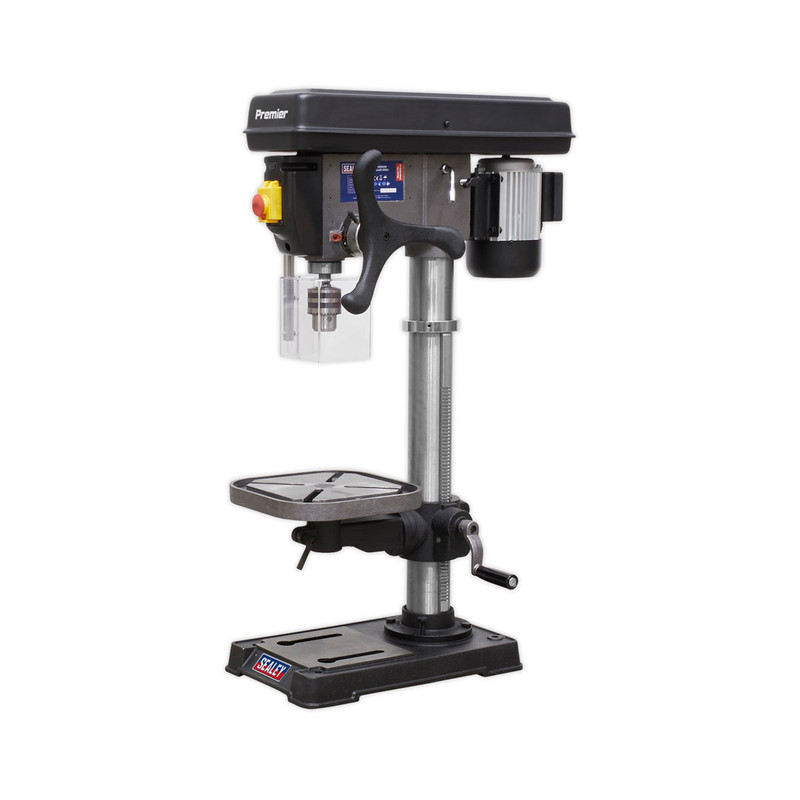

Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V

Description

Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V

One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.

PDM155B Features

• One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop
• Features heavy-duty aluminium-bodied motor for long and reliable performance
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process
• Supplied with an electrically inter-locked chuck guard
• Large sized square table fitted with precision rack and pinion height adjustment

PDM155B Specification

• Model No PDM155B
• Base Size: 495 x 290mm
• Brand: Premier
• Collar Diameter: 60mm
• Column Diameter: 80mm
• Drilling Capacity (Chuck Size): 16mm
• Integral Work Light: Yes
• Maximum Distance Spindle to Base: 660mm
• Maximum Distance Spindle to Table: 475mm
• Motor Power (Start): 370W(600W)
• Nett Weight: 55kg
• Number of Speeds: 16
• Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1050mm
• Speed Range: 190-3000rpm
• Spindle Centre to Column: 190mm
• Spindle Nose Taper: MT2
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 380mm
• Working Base Surface Size: 205 x 200mm
• Working Table Surface Size: 290 x 290mm

What is included:

• 1 x Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V
