Product Description

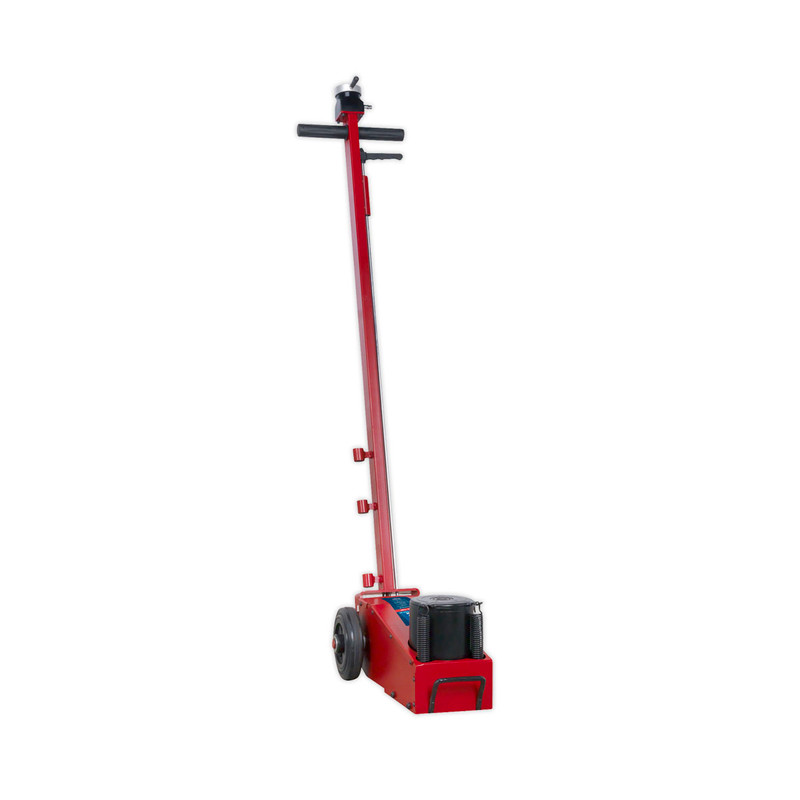

Sealey YAJ201 Air Operated Jack 20tonne - Single Stage

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See table for detailed specification.

YAJ201 Features

• Powerful and reliable, ideal for workshop or roadside use
• At modest cost, it takes the effort out of lifting heavy plant, tractors and commercial vehicles
• Supplied with 20mm, 50mm & 100mm extensions
• This jack will require a compressor of above 3hp

YAJ201 Specification

• Model No YAJ201
• Air Consumption: 10.5cfm
• Brand: Sealey
• Chassis Length: 525mm
• Extensions: 20/50/100mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 456/20
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): n/a
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
• Maximum Length: 1765mm
• Minimum Saddle Height: 215mm
• Nett Weight: 30kg
• Overall Width: 265mm
• Piston Stroke: 141mm
• Screw Extension: n/a
• Width without Wheels: 133mm
• Working Pressure: 116-174psi

What is included:

• 1 x Sealey YAJ201 Air Operated Jack 20tonne - Single Stage
