Product Description

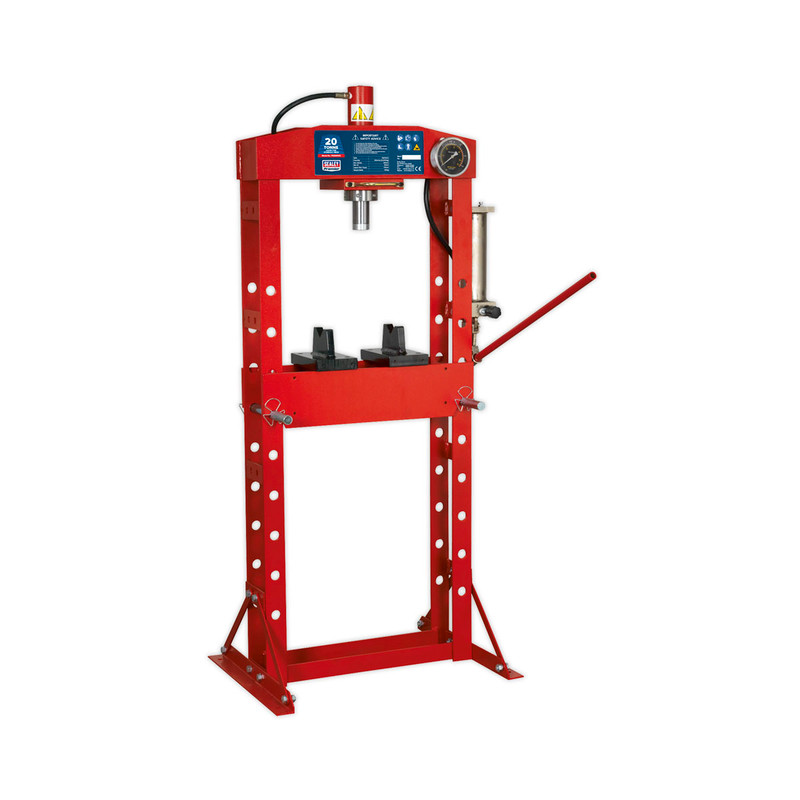

Sealey YK209F Hydraulic Press 20tonne Floor Type

Sliding hydraulic ram assembly giving 176mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.

YK209F Features

• Heavy-duty steel frame construction with hydraulic pump unit
• Sliding hydraulic ram assembly gives 176mm of lateral travel for off-centre pressing applications
• Frame head fitted with ram pressure gauge
• Supplied with flat pressing plate/V-blocks
• 2 Year guarantee*

YK209F Specification

• Model No YK209F
• Bench or Floor Mounting: Floor
• Brand: Premier
• Capacity: 20tonne
• Gauge Included: Yes
• Lateral Ram Travel: 176mm
• Maximum Height - Ram to Table: 918mm
• Minimum Height - Ram to Table: 38mm
• Nett Weight: 105kg
• Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1625mm
• Ram Diameter: 48mm
• Ram Stroke: 187mm
• Table Aperture: 152mm
• Type: Hydraulic
• Working Table Depth: 172mm
• Working Table Width: 630mm

What is included:

• 1 x Sealey YK209F Hydraulic Press 20tonne Floor Type
