Product Description

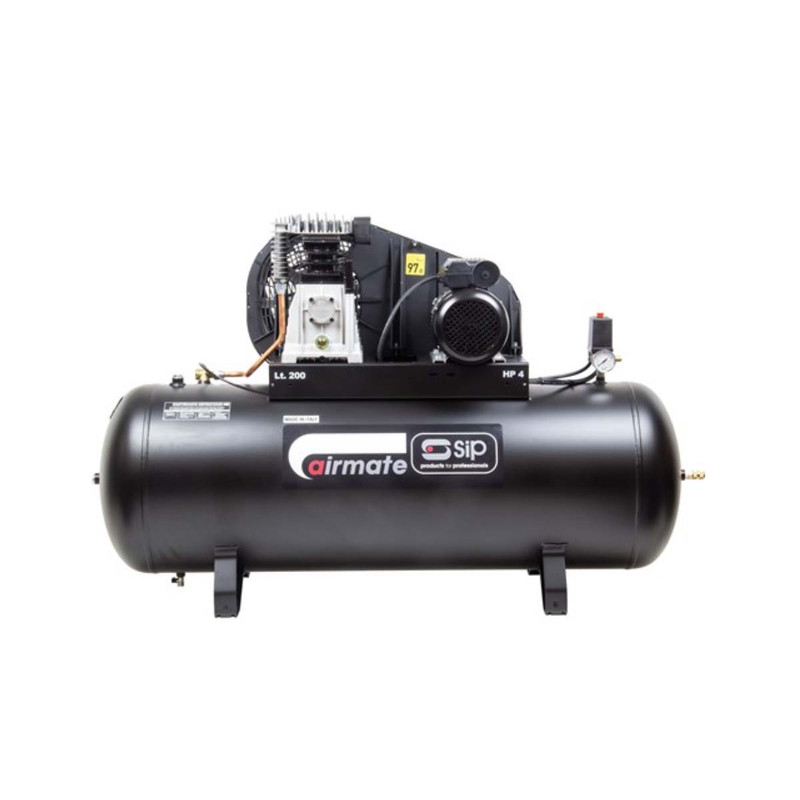

SIP 05311 PX4-3/200B Belt-Driven Compressor

The SIP PX4-3/200B Belt-Driven Compressor is an powerful oil-lubricated unit with a multi-finned flywheel, aluminium aftercooler, and heavy-duty B3800 pump for performance in all applications.

05311 Features:

• 400v (20A) 3-PHASE input supply; 4hp (3kW) motor
• Oil-lubricated and belt-driven compressor with a heavy-duty B3800B pump for rugged performance
• 200ltr air receiver; 145psi (10bar) max. air pressure
• 18CFM (510ltr/min) max. piston displacement
• 14CFM (396ltr/min) max. free air delivery (FAD)
• Multi-finned flywheel for improved cooling and longer pump life; powerful forced air cooling
• Fitted with a heavy-duty aluminium aftercooler
• Durable cast iron barrel and finned manifolds
• Oversized crankcase for improved lubrication
• Strong moulded plastic belt / flywheel guard
• Optional 02069 wheel kit sold separately
• Made in Italy / 2 year warranty

05311 Specification:

• ITEM NO. 05311
• Input Supply: 400v (20A) 3-PHASE
• Motor Power: 3kW (3.00hp)
• Receiver Size: 200ltr
• Piston Displacement: 18.00CFM (510ltr/min)
• Free Air Delivery (FAD): 14.00CFM (396ltr/min)
• Max. Air Pressure: 145psi (10bar)
• Noise Level: 97dB(A)

What is Included:

• 1x SIP 05311 PX4-3/200B Belt-Driven Compressor
