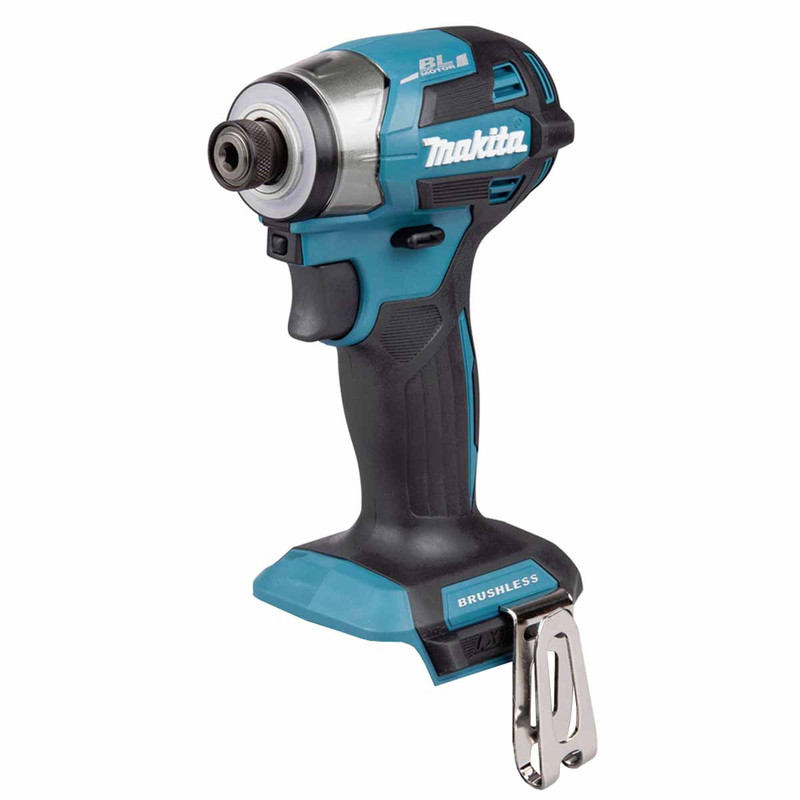

Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only)
The Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only) is a compact, high-performance power tool designed for fast, controlled screwdriving and bolt tightening in professional construction, installation and maintenance work. As part of the 18V LXT cordless power tools range, it combines a powerful 180 Nm brushless motor with an ultra-short 111 mm body, making it ideal for working in confined spaces or overhead. Four electronic impact modes, variable speed control and assist functions allow the user to optimise speed and impact rate for different fastener sizes and materials, helping to reduce cam-out and over-tightening. An anti-bit wobbling structure and ergonomic, rubber-moulded grip support accurate, comfortable handling throughout the working day. The integrated LED ring work light with selectable brightness improves visibility in dark corners and interior fixings. The Makita DTD173Z 18V Cordless Brushless Impact Driver is supplied as a bare unit with a belt hook, ready to use with existing Makita 18V LXT Li-ion batteries and chargers.
DTD173Z Features:
- Makita DTD173Z 18V Cordless Brushless Impact Driver delivers up to 180 Nm of torque for demanding fastening tasks in power tool applications
- High-efficiency brushless motor reduces maintenance and helps maximise runtime when paired with Makita 18V LXT batteries
- Ultra-compact 111 mm body and slim grip design improve access in tight spaces and support comfortable all-day use
- Electronic 4 stage impact power selection lets users match speed and impact rate to different screw sizes and materials
- Variable speed trigger provides precise control from 0-3,600 rpm for accurate starting and controlled driving
- Anti-bit wobbling structure with dual ball bearings keeps the bit stable for cleaner, more accurate fastening
- Electric brake stops rotation quickly to speed up repetitive driving and enhance operator safety
- Integrated LED ring work light with multiple brightness settings improves visibility on dark or enclosed jobsites
- 1/4" hex driving shank accepts a wide range of impact-rated bits commonly used across impact drivers
- Lightweight design from 1.2-1.5 kg with battery reduces fatigue during overhead or extended use
Warranty Information
1 Year Manufacturer Warranty (Extendable to 3 Years With Registration)Specification
| Country of Origin: | United Kingdom |
| brand-name-xt: | https://cdn11.bigcommerce.com/s-hczpll0y/product_images/uploaded_images/makita-logo.png |
| brand-link-xt: | https://www.toolden.co.uk/tool-brands/makita/ |
| top_feature: | Brushless motor delivers up to 180Nm fastening torque for demanding screwdriving applications |
| top_feature: | Ultra-compact 111mm body length provides excellent access in confined spaces |
| top_feature: | Four-stage electronic impact power selection optimises performance across different tasks |
| top_feature: | Variable speed trigger offers precise control up to 3,600rpm |
| top_feature: | Anti-bit wobble design improves fastening accuracy and bit stability |
| top_feature: | Electric brake enhances productivity and operator safety during repetitive work |
| top_feature: | LED ring light with adjustable brightness improves visibility in low-light areas |
| top_feature: | Compatible with Makita 18V LXT batteries and impact-rated accessories |
| FQQ: | Is the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only) supplied with batteries and a charger? |
| FAA: | No. It is supplied as a body-only tool, with no battery or charger included. |
| FQQ: | Which battery system does the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only) use? |
| FAA: | It runs on Makita 18V LXT Li-ion batteries. |
| FQQ: | What is the maximum fastening torque of the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only)? |
| FAA: | The driver delivers up to 180 Nm of fastening torque. |
| FQQ: | How many power modes does the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only) have? |
| FAA: | It features electronic 4-stage impact power selection for better control across tasks. |
| FQQ: | What are the no-load speed settings of the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only)? |
| FAA: | The speeds are 0-1,100, 0-2,100, 0-3,200 and 0-3,600 min¹. |
| FQQ: | What is the impact rate range of the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only)? |
| FAA: | The impact rates are 0-1,100, 0-2,600, 0-3,600 and 0-3,800 ipm. |
| FQQ: | What fastener sizes can the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only) tighten? |
| FAA: | It handles standard bolts M5-M16, machine screws M4-M8 and high-tensile bolts M5-M14. |
| FQQ: | What is the bit shank size of the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only)? |
| FAA: | It has a 1/4 inch hex driving shank. |
| FQQ: | What are the dimensions and weight of the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only)? |
| FAA: | The tool measures 111 x 81 x 234 mm. Net weight is about 0.85 kg, or approximately 1.2-1.5 kg with a battery fitted. |
| FQQ: | What features help with handling and safety on the Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only)? |
| FAA: | It has a slim body, a low centre of gravity and an anti-wobble bit structure for better control. An electric brake stops the tool quickly to maximise productivity and safety. |
| Included: | 1 x Makita DTD173Z 18V Cordless Brushless Impact Driver Body Only |
| Included: | 1 x Belt hook |
| Product name: | Makita DTD173Z 18V Cordless Brushless Impact Driver (Body Only) |
| Brand: | Makita |
| Series: | LXT |
| Product type: | Impact Driver |
| Model number: | DTD173Z |
| Voltage: | 18 V |
| Battery chemistry: | Li-ion |
| Motor type: | Brushless |
| Max fastening torque: | 20 / 50 / 170 / 180 Nm |
| No load speed: | 0 - 1100 / 2100 / 3200 / 3600 min¹ |
| Impacts per minute: | 0 - 1100 / 2600 / 3600 / 3800 min¹ |
| Tightening capacity standard bolt: | M5 - M16 |
| Tightening capacity high tensile bolt: | M5 - M14 |
| Capacity machine screw: | M4 - M8 |
| Driving shank: | 1/4" hex |
| Sound power level (LWA): | 108 dB(A) |
| Sound pressure level (LpA): | 97 dB(A) |
| Noise uncertainty (K factor): | 3 dB(A) |
| Vibration level, impact tightening of fasteners of the maximum capacity of the tool: | 12.9 m/s² |
| Vibration uncertainty (K factor): | 1.5 m/s² |
| Product dimensions (L x W x H): | 111 x 81 x 234 mm |
| Product net weight: | 0.85 kg |
| Tool weight with battery: | 1.2 - 1.5 kg |
| Barcode: | 0088381779210 |
