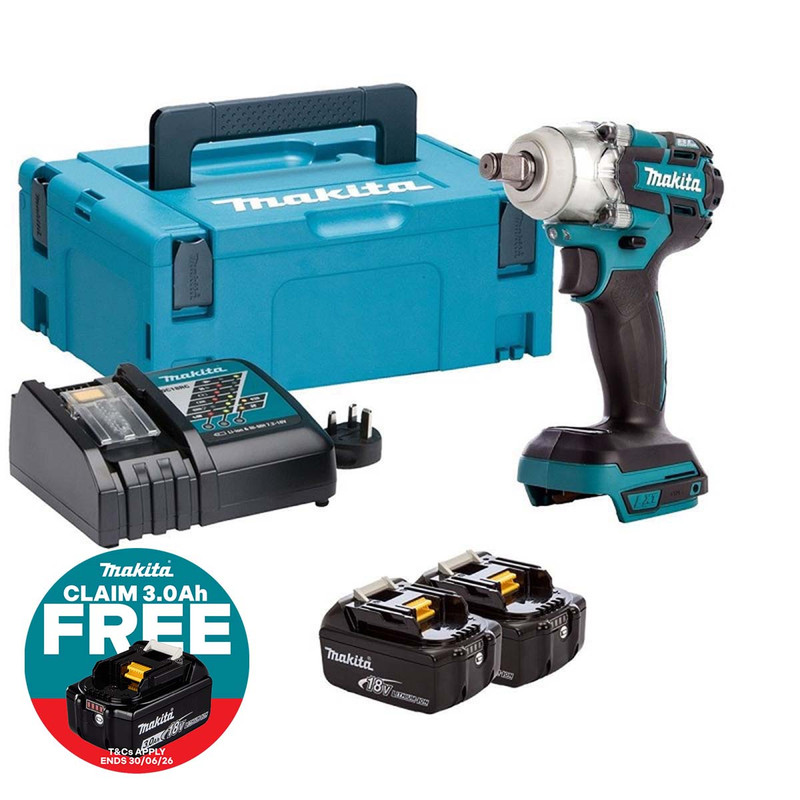

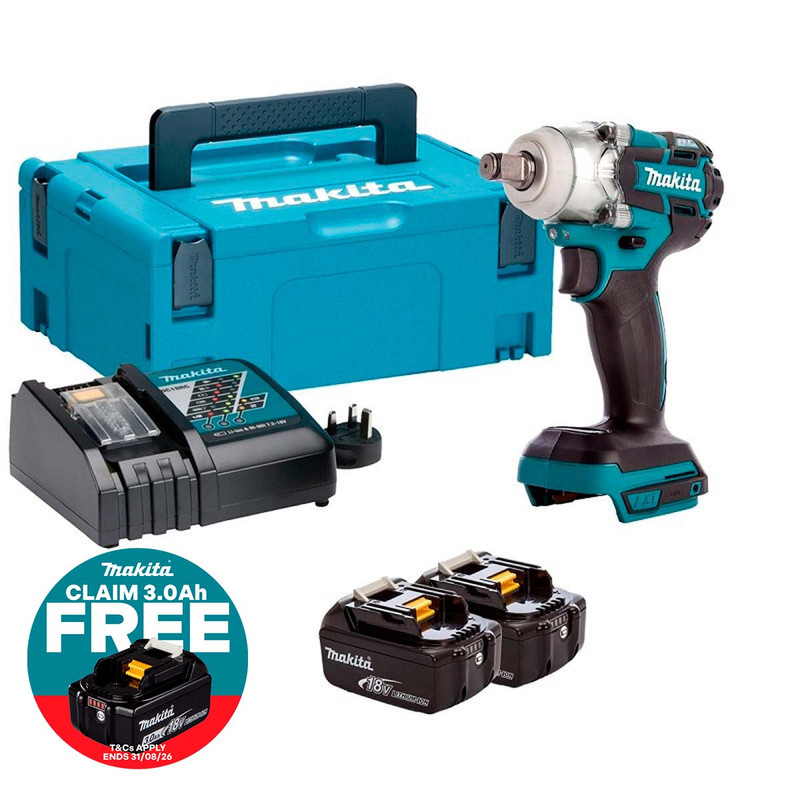

Makita DTW285RTJ 18V 1/2" LXT Brushless Impact Wrench Kit 2x 5.0Ah Batteries
Makita DTW285 is a cordless impact wrench with reverse rotation auto stop mode powered by 18V Li-ion battery and developed based on the model DTW281. Brushless motor for superior endurance, a longer lifetime and more compact design. Suitable for use with 1/2" square drive impact sockets with or without O-ring and center pin.
DTW285RTJ Features:
- The DTW285 is a fantastic, lightweight and compact impact wrench.
- The impact mode has 4 settings, soft, medium, hard and reverse rotation auto stop,
- Ideal for furniture assembly, medium for scaffold work.
- Hard for steel frame assembly and reverse rotation auto stop for disassembling bolts/nuts.
- The DTW285 is equipped with a protection circuit.
- Designed to protect the battery from overload, high temperature and over discharge.
- Other features include a battery power indicator.
- LED light for better visibility and an ergonomic soft grip handle.
- Compact design with overall length of 147mm.
- Reverse rotation auto stop mode.
- This mode works only with pulling the trigger fully in counter-clockwise rotation.
- When the bolt/nut gets loosened enough, the tool stops the impact and rotation in 0.2 seconds.
DTW285RTJ Specifications:
- Nut Busting Torque: 400 NmBattery Type Lithium-ion
- Voltage: 18 v
- Battery quantity: (5.0Ah) 2
- Driving Shank: 1/2" Square
- Blows per Minute (Hi) - ipm: 0 - 3500 ipm
- Blows per Minute (Med) - ipm: 0 - 2600 ipm
- Blows per Minute (Lo) - ipm: 0 - 1800 ipm
- Standard Bolt: M10-M20
- High Tensile Bolt: M10-M16
- Noise sound pressure: 96 dB(A)
- Noise sound power: 107 dB(A)
- Noise K factor: 3 dB(A)
- No Load Speed (hard/med/soft): 0-2800 / 2100 / 1600 rpm
- Max Fastening Torque: 280 Nm
- Vibration: Fastening Bolt: 11.5 m/sec²
- Vibration K factor: 1.5 m/sec²
- Net weight: 1.7 kg
What is included:
- 1 x DTW285 Impact Wrench
- 2 x BL1850 Batteries
- 1 x Charger
- 1 x Carry Case
