Product Description

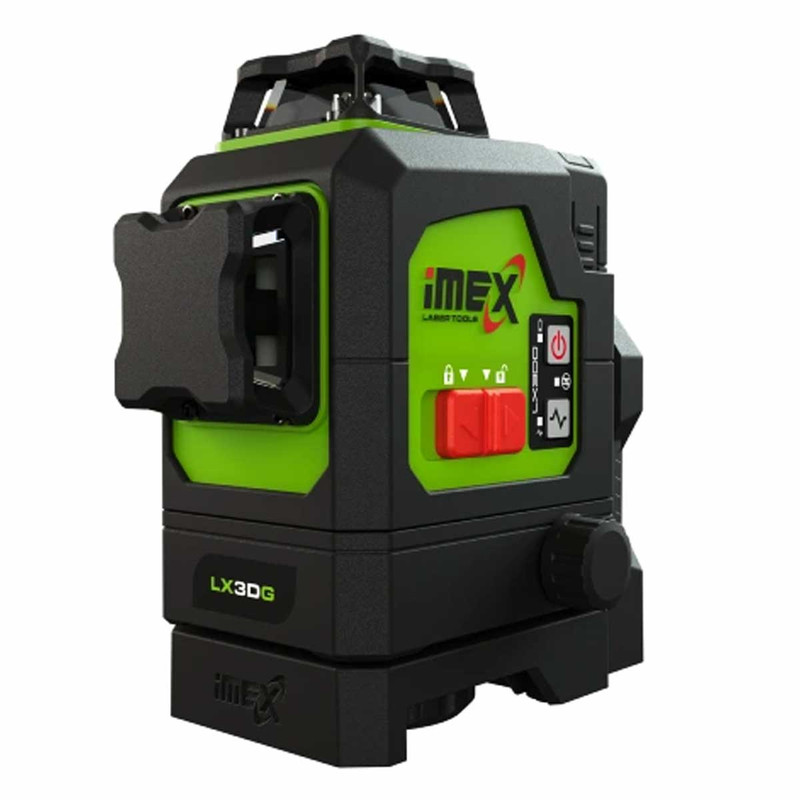

Imex LX3DG Series II 360 Degree Multi Line Green Laser Level in a Carry Case

The iMEX LX3DG is a multiline laser level with everything. Now with PreciseALIGN™ fine adjustment to get that perfect 90-degree set out.  With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks. Series II features an all-new quick release lithium battery platform, compatible across all Series II LX models, plus new rubberised housing for a comfortable, non-slip grip.

LX3DG Series II Features:

• NEW PreciseAlign™ fine adjustment to pivot laser
• NEW 5.2Ah lithium battery pack – swaps to all LX series II models.
• NEW rugged housing with non-slip rubberised moulding
• 360 degree horizontal and vertical laser lines
• Ultra visible green beam technology
• Pulse mode to work with laser detector
• 360 degree turntable and magnetic bracket
• Self levelling

LX3DG Series II Specifications:

• Self levelling range: 4° ± 1
• Out of level indication: Laser blinks on/off
• Laser accuracy ±3mm: @10m
• Laser class: Class 2
• Laser wavelength: 520 ± 10 nm
• Laser distance: 20m light-dependent
• Laser distance with optional detector: 50m
• Laser fan angle -lines: H 360° V 360°
• Power source: 5.2 Ah lithium-ion
• Charging type: USB-C
• Run time – all beams and dots: 6 hrs
• Control switch: 1 button, pendulum lock
• Unit adjustment: Precise align, fine adjustment screw
• IP Rating: IP54
• Operating temperature: -10° to +50°C
• Storage temperature: -20° to +70° C

What is Included:

• 1x LX3DG Series II 360 Degree Multi Line Green Laser Level
• 1x Lithium battery
• 1x USB-C
• 1x Alkaline batteries
• 1x Magnetic bracket operating manual
• 1x Plastic carry case
