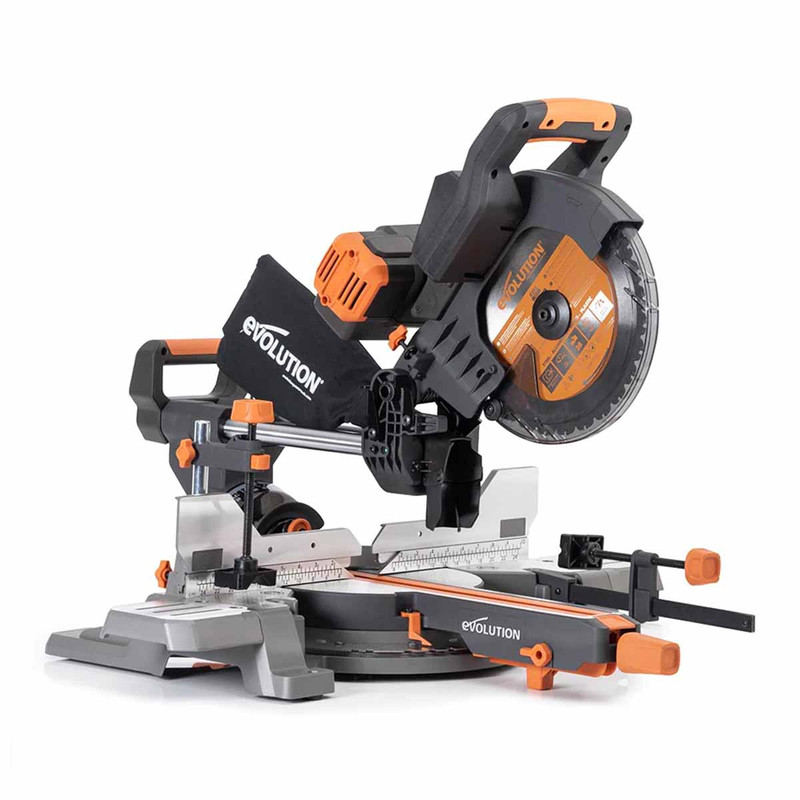

Evolution R255SMS-DB-Li 36V EXT 255mm Double Bevel Mitre Saw (Body Only)

Evolution R255SMS-DB-Li 36V EXT 255mm Double Bevel Mitre Saw (Body Only)

The Evolution R255SMS-DB-Li Cordless Mitre Saw is a versatile tool designed for both jobsite and DIY applications, featuring double bevel cutting with impressive capabilities. Its Brushless DC motor and optimised gearbox ensure reliable, smooth, and square cuts in various materials, supported by Multi-Material cutting technology. Weighing just 16.6kg, this saw is compact yet robust, powered by two 18V EXT batteries for long-lasting performance. With features like up to +/- 48-degree bevel and +/-50-degree mitre capability, alongside a large cross-cut capacity of 305mm x 90mm, it offers exceptional cutting versatility. The inclusion of innovative features like the Shadow Line LED cutting guide and Zero Clearance Insert enhances accuracy, making it ideal for precision cuts in wood, steel, and non-ferrous metals. Bundled with high-capacity batteries and a rapid charger, this saw delivers ample power and efficiency, capable of up to 320 cuts through 4x2" CLS on a single charge. With compatibility across Evolution's EXT Cordless Li-ion power tools, the R255SMS-DB-Li offers maximum versatility for various applications. If you seek a portable, powerful, and accurate Mitre Saw for cutting any material, anytime, the R255SMS-DB-Li stands out as a top choice.

100-0001 Features:

• Capable of double bevel cuts with a range of +/- 48° (left and right) and +/- 50° mitre angles.
• Features a high-power 36V Brushless DC motor for efficient operation.
• Utilises the EVO36 Powertrain, powered by 2x 18V Dual Batteries, optimised for extended battery life and runtime.
• Fast charge time of 60 minutes with 2 x 5Ah batteries.
• Offers accurate bevel, mitre, and compound cuts with detent stops at popular angles.
• Equipped with a stainless steel mitre angle guide for precise adjustments.
• Compatible with Mitre Saw Stands for enhanced support and stability.
• Features a Shadow Line kerf width blade cutting guide for accurate measurements.
• Multi-material capability with a premium Japanese 28T Tungsten Carbide Tipped TCT blade for cutting wood, metal, plastic composites, and more.
• Provides virtually spark-free metal cuts with no heat, burrs, and an instantly workable finish.
• Includes a Zero Clearance Insert for improved cutting accuracy.
• Depth Stop feature enables precise trench cuts, while the Back Stop feature allows maximum depth cuts.
• Dual-size blade arbour of 25.4mm and 5/8".
• Constructed with a cast alloy base and side extensions for durability.
• Features ergonomic ambidextrous handles for comfortable control.
• Improved front and top clamps with a self-levelling design for convenience.
• Incorporates Soft Start and quick-stop Electronic Blade Brake for safety.
• Compatible with vacuum systems for up to 97% dust extraction, using R11VAC-LI and R15VAC.
• Includes a Dust Bag and Dust Port Adaptor for cleaner work environments.
• Offers single-bolt blade change for quick and easy replacement.
• Integrated Carry Handles for portability.
• Compatible with diamond masonry blades.
• Blade change tool included for quick swaps.
• Provides EXT Li-ion cordless performance and versatility.
• Compatible with the Erbauer EXT battery system.

 100-0001 Specification:

• Voltage / (Hz): 36v
• No Load Speed (min-1 rpm): 3,000rpm
• Net Weight: 16.6kg / 18kg
• Dust port Adaptor Size: 35mm
• Tool Dimensions: 451mm x 998mm x 771mm
• Mild steel Plate - Max Thickness: 6mm
• Mild Steel Tube Max Wall Thickness: 3mm
• Minimum Size Offcut (zero clearance insert): 20mm
• 0º Mitre x 0º Bevel: 305mm x 90mm
• 45º Mitre x 0º Bevel: 215mm x 90mm
• 0º Mitre x 45º Bevel (left): 305mm x 52mm (300mm x 33mm right)
• 45º Mitre x 45º Bevel: 215mm x 33mm
• Mitre Range: 50°- 50°
• Bevel Range: +/- 48° L&R
• Blade Diameter: 255mm
• Bore Diameter: 25.4mm
• No of Teeth: 28T
• Kerf: 2mm
• Sound pressure level Lpa: 84.5 db (A); K=3db (A)
• Sound power level Lwa: 97.5 db (A); K=3db (A)

What is included:

• 1x Evolution R255SMS-DB-Li 36V EXT Double Bevel Mitre Saw
• 1x Instruction Manual
• 1x Multi-Material 28T TCT Blade 255mm
• 1x Top & Front Clamps
• 1x Zero Clearance Insert
• 1x Machine Table Extension = 4x socket headed screws
• 1x Double Ended Hex Key M6 x M4
• 1x Rotary Table & neck
• 1x Cutting Head
• 1x Carriage Slides
• 1x Multi-locking Knob
• 1x Dust Port Adaptor
• 1x Dust Bag
