Product Description

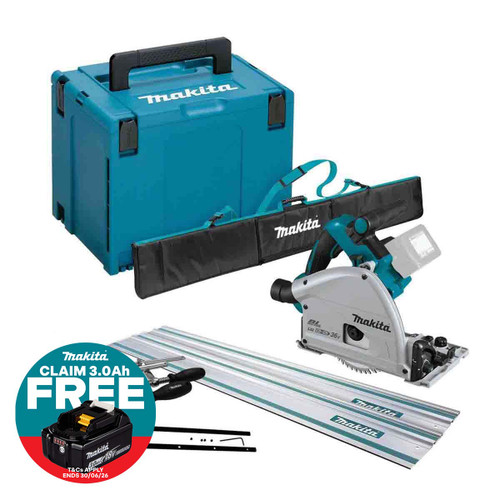

Makita DSP600 Twin 18V LXT 165mm Plunge Saw with Guide Rail Set & MAKPAC Carry Case (Body Only)
The Makita DSP600 Twin 18V LXT 165mm Plunge Saw with Guide Rail Set & MAKPAC Carry Case (Body Only) is a professional plunge cut saw designed for precise sheet material cutting in the Power Tools & Plunge Saws category. Driven by two 18V LXT Li-ion batteries in series to deliver 36V performance, it features a high-efficiency brushless motor, Automatic Torque Drive Technology and a variable speed range from 2500 to 6300 min?¹ for controlled, accurate cutting across a wide range of materials. With a 165mm blade, max cutting depth of 56mm at 90°, 40mm at 45° and bevel capacity from -1° to 48°, it is ideal for kitchen fitting, cabinetry, flooring and interior finishing work where clean, splinter-free edges are essential. Low vibration, soft start and an electric brake support safer, more comfortable operation, while the dust extraction port connects to compatible vacuums to help keep the work area cleaner. This body-only kit is supplied with guide rails, clamps and a MAKPAC carry case for organised transport and set-up.
DSP600BUNDLEB Features:
- Powered by twin 18V LXT Li-ion batteries delivering 36V performance for demanding plunge cutting tasks
- Brushless motor with Automatic Torque Drive Technology optimises speed and torque for consistent cutting in tough materials
- Variable speed control dial from 2500 to 6300 min?¹ allows you to match blade speed to different applications and materials
- Large cutting capacity with max cutting depth of 56 mm at 90°, 40 mm at 45° and 38 mm at 48° for versatile use on site
- Bevel range from -1° to 48° with positive stops enables precise angled cuts and easy set-up for mitres and scribing
- Electric brake and soft start improve user safety and control when starting and stopping cuts
- Compatible with Makita guide rails and supplied rail set for accurate, splinter-free cuts in sheet materials
- Integrated dust extraction port with vacuum connection optimises dust removal when used with compatible extractors
- Low vibration levels ? 2.5 m/s² help reduce user fatigue during prolonged professional use
- Supplied with MAKPAC carry case for organised storage and transport of the plunge saw and accessories
Specification
| top_feature: | Powered by twin 18V LXT Li-ion batteries delivering 36V performance for demanding plunge cutting tasks |
| top_feature: | Brushless motor with Automatic Torque Drive Technology optimises speed and torque for consistent cutting in tough materials |
| top_feature: | Variable speed control dial from 2500 to 6300 min?¹ allows you to match blade speed to different applications and materials |
| top_feature: | Large cutting capacity with max cutting depth of 56 mm at 90°, 40 mm at 45° and 38 mm at 48° for versatile use on site |
| top_feature: | Bevel range from -1° to 48° with positive stops enables precise angled cuts and easy set-up for mitres and scribing |
| top_feature: | Electric brake and soft start improve user safety and control when starting and stopping cuts |
| top_feature: | Compatible with Makita guide rails and supplied rail set for accurate, splinter-free cuts in sheet materials |
| top_feature: | Integrated dust extraction port with vacuum connection optimises dust removal when used with compatible extractors |
| FQQ: | What is included with the Makita DSP600 Twin 18V LXT 165mm Plunge Saw with Guide Rail Set & MAKPAC Carry Case (Body Only)? |
| FAA: | The bundle includes the Makita DSP600 Twin 18V LXT 165mm Plunge Saw (body only), a Makpac Type 4 carry case, a guide rail set and an E-05664 guide rail holder compatible with 1.4 metre and 1.5 metre guide rails. |
| FQQ: | What does 'body only' mean for this Makita DSP600 plunge saw? |
| FAA: | 'Body only' means the plunge saw is supplied without batteries or charger, so you will need compatible Makita 18V LXT batteries and a charger to operate it. |
| FQQ: | What power system does the Makita DSP600 plunge saw use? |
| FAA: | The saw is powered by two 18V LXT lithium-ion batteries used in series to provide 36V to the brushless DC motor drive system. |
| FQQ: | What is the maximum cutting depth of the Makita DSP600 plunge saw? |
| FAA: | The maximum cutting depth is 56mm at 90 degrees and 40mm at 45 degrees when used with the appropriate blade and guide setup. |
| FQQ: | What bevel range does the Makita DSP600 plunge saw offer? |
| FAA: | The saw offers a bevel range from -1 degree to 48 degrees, with positive stops for easy bevel adjustment. |
| FQQ: | Does the Makita DSP600 plunge saw have variable speed control? |
| FAA: | Yes, it has a variable speed control dial with a no-load speed range from 2,500 to 6,300 rpm, allowing you to adjust the cutting speed to suit different materials and tasks. |
| FQQ: | What safety and control features are built into the Makita DSP600 plunge saw? |
| FAA: | The saw features an electric brake that stops the motor when the trigger is released, soft start for gradual acceleration, and Automatic Torque Drive Technology which automatically changes cutting speed according to load for optimum operation. |
| FQQ: | Is the Makita DSP600 plunge saw compatible with guide rails? |
| FAA: | Yes, the DSP600 is designed to be used with Makita guide rails and the included E-05664 guide rail holder ensures stability when working with 1.4 metre and 1.5 metre rails. |
| FQQ: | What is the blade size supplied with the Makita DSP600 plunge saw? |
| FAA: | The saw uses a 165mm circular saw blade with a 20mm bore, and the supplied plunge saw includes a fine saw blade suitable for clean cutting. |
| FQQ: | What is the approximate weight of the Makita DSP600 plunge saw? |
| FAA: | The net weight of the Makita DSP600 plunge saw is about 5.1 kilograms, making it a robust yet portable cordless tool. |
| Product name: | Makita DSP600 Twin 18V LXT 165mm Plunge Saw with Guide Rail Set & MAKPAC Carry Case (Body Only) |
| Brand: | Makita |
| Product category: | Power Tools & Plunge Saws |
| Model code: | DSP600 |
| Voltage: | 36V (2 x 18V LXT) |
| Battery chemistry: | Li-ion |
| No load speed: | 2500 - 6300 min?¹ |
| Blade diameter: | 165 mm |
| Bore size: | 20 mm |
| Max cutting depth at 90°: | 56 mm |
| Max cutting depth at 45°: | 40 mm |
| Max cutting depth at 48°: | 38 mm |
| Max bevel range: | -1° to 48° |
| Sound pressure level LpA: | 92 - 95 dB(A) |
| Sound power level LWA: | 103 dB(A) |
| Noise uncertainty K factor: | 3 dB(A) |
| Vibration level cutting wood: | ? 2.5 m/s² |
| Vibration level cutting metal: | ? 2.5 m/s² |
| Vibration uncertainty K factor: | 1.5 m/s² |
| Vacuum cleaner connection diameter: | 35 / 43 mm |
| Tool weight with battery: | 4.4 - 5.1 kg |
| Product dimensions (L x W x H): | 346 x 241 x 272 mm |
| Symbols: | Variable speed, Brake, Soft start, Dust collection, Carrying case |
| Supplied as: | Body only |
| Included: | 1x Makita DSP600 36V (2x18V) 165mm Plunge Saw body only |
| Included: | 1x MAKPAC Type 4 carry case |
| Included: | 2x 1.5m guide rails |
| Included: | 1x guide rail connector kit |
| Included: | 1x pair of guide rail clamps |
| Included: | 1x guide rail bag |
| Included: | 1x 165mm saw blade |
