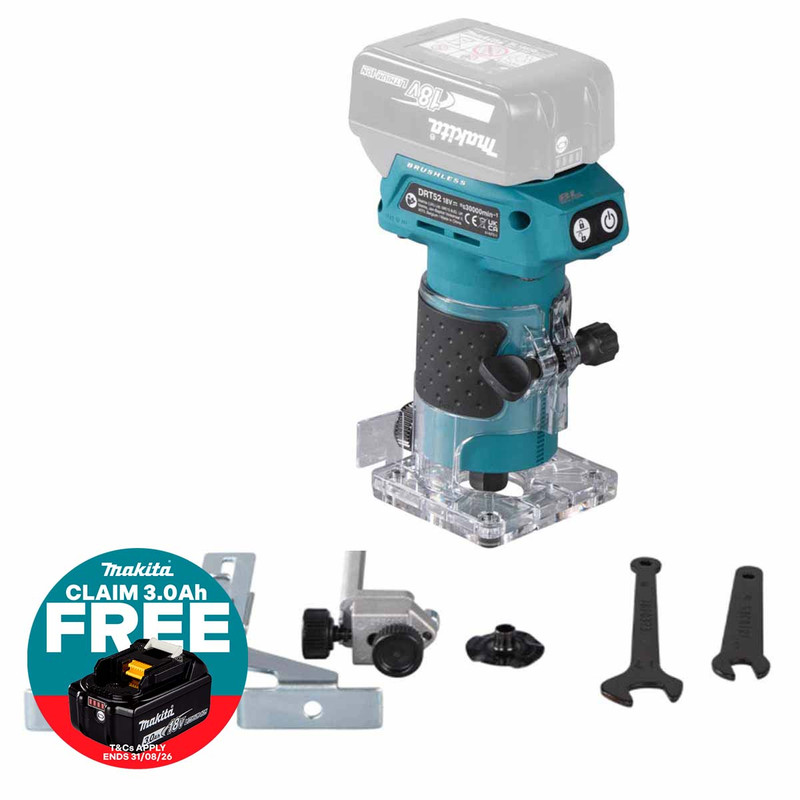

Makita DRT52Z 18V LXT 1/4" Brushless Router/Trimmer (Body Only)

The Makita DRT52Z 18V LXT Brushless Laminate Router/Trimmer is a versatile and compact tool suitable for various applications. It features an easy-to-use design with a convenient power control switch, making it ideal for milling laminated and veneer wood and tasks like engraving and edge rounding. The tool includes a ¼” collet with a depth capacity of up to 42mm, controlled by a front-mounted rack and pinion manual depth adjustment mechanism. Its square base, 82 x 90mm, provides a clear view of the cutting area. Despite its power, the trimmer operates with low vibration and minimal noise, enhanced by a rubberised soft grip handle for comfortable control during extended use. Powered by a brushless motor, the DRT52 delivers a fixed no-load speed of 30,000rpm, ensuring efficient performance. The brushless motor design maximises battery power utilisation while reducing heat generation, improving efficiency and reducing maintenance requirements. This technology ensures an optimal balance between battery power and usage, providing consistent performance whenever needed.

DRT52Z Features:

• Compact and Versatile: Suitable for various applications, including milling laminated wood and veneer, engraving, and edge rounding.
• Easy Access Power Control: Convenient switch for straightforward operation.
• ¼” Collet: Accommodates various router bits with a depth capacity of up to 42mm.
• Manual Depth Adjustment: Front-mounted rack and pinion mechanism for precise depth control.
• Square Base: This base provides a clear line of sight to the cutting area and measures 82 x 90mm.
• Low Vibration and Quiet Operation: Enhances user comfort during prolonged use.
• Rubberised Soft Grip: Ensures comfortable handling and control.
• Brushless Motor: Delivers a fixed no-load speed of 30,000rpm for efficient performance.
• Battery Efficiency: Utilizes battery power efficiently, reducing heat generation and extending tool life.
• Symmetrical Power Distribution: Ensures consistent power output for reliable performance.
• Versatility: Handles tasks such as door hinge work, engraving, and edge profiling easily.
• Durable Design: Built to withstand demanding job site conditions.
• Portability: Operates on Makita's 18V LXT battery platform, offering cordless convenience.
• Ease of Use: Designed for ergonomic comfort and ease of operation in various woodworking applications.

DRT52Z Specification:

• Brushless Motor: Yes
• Nominal Battery Voltage: 18 V
• Voltage LXT: Yes
• No Load Speed: 30000 min⁻¹
• Plunge Capacity: 0 - 42 mm
• Max. Collet Capacity: 6 mm
• Sound Power Level (LWA): 89 dB(A)
• Sound Pressure Level (LpA): 81 dB(A)
• Noise Uncertainty (K Factor): 3 dB(A)
• Tool Weight with Battery: 1.3 - 1.6 kg
• Product Dimensions (L x W x H): 134 x 90 x 220 mm
• Vibration Level, Rotation Without Load: ≤ 2.5 m/s²
• Vibration Uncertainty (K Factor), Rotation Without Load: 1.5 m/s²
• Battery Chemistry: Li-ion

What is included:

• 1x Makita DRT52Z 18V LXT 1/4" Brushless Router/Trimmer (Body Only)
• 1x Trimmer Guide
• 1x Straight Guide
• 1x Straight bit set (6mm)
• 1x Accessory set
• 1x Chip deflector
