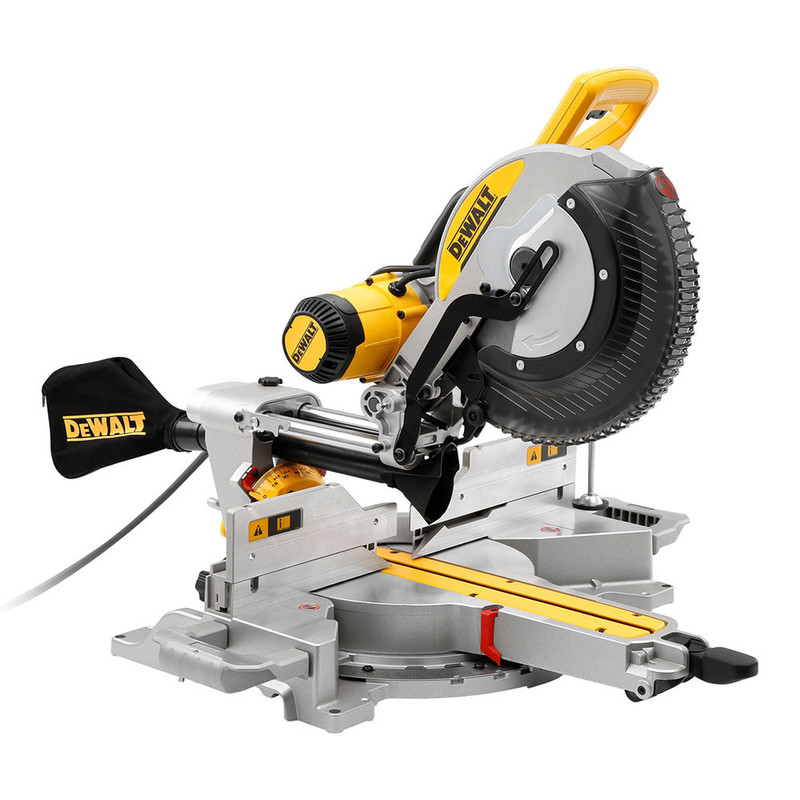

DeWalt DWS780-LX 305mm XPS Compound Slide Mitre Saw 1675W 110V

Description

DeWalt DWS780-LX 305mm XPS Compound Slide Mitre Saw 1675W 110V

The DeWalt DWS780-GB is a 305mm mitre saw engineered for repeatable accuracy, featuring dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3, and 45 degrees. The 1675-watt motor also offers a maximum cutting capacity of 305 x 77mm. Other features include an XPS crosscut positioning system for the ultimate in accuracy and visibility, with no calibration needed and machined side handles for increased portability on site.

DWS780-LX Features:

• POWERFUL 1675W MOTOR: High performance in all applications
• SPEED CONTROL: Adjust cutting speed for ultimate control when cutting wood and other materials
• IMPRESSIVE CROSS CUT CAPACITY: 110mm x 303mm at 90°
• LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of angles
• COMPACT & LIGHTWEIGHT: Huge cut capacities, with a lightweight compact design for easy transport around the jobsite
• XPS SHADOWLINE: Provides fast, accurate alignment of the blade with no adjustment required
• STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 12.25, 15, 22.5, 31.6 and 45 degrees
• AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection
• CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° - 50° left and 0° - 60° right
• DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
• DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications
• MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
• 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration

DWS780-LX Specification:

• Blade Bore [Metric]: 30 mm
• Blade Speed: 1900-3800 rpm
• Max. Cutting Capacity (45°/45°): 211 x 63 mm
• Max. Depth of Cut: 170 mm
• Saw Blade Thickness: 2.6 mm
• Max. Cutting Capacity (90°/90°):303 x 110 mm
• Product Width: 470 mm
• No Load Speed (RPM): 1900-3800
• Max. Cutting Capacity (45°/90°): 211 x 112 mm
• Product Height: 396 mm
• Product Weight: 25.5 Kg
• Blade Diameter: 305 mm
• Supplied in Storage Case Indicator: No
• Max. Cutting Capacity (90°/45°): 268 x 63 mm
• Power Source: Corded
• Power Input: 1675 W
• Product Length: 770 mm
• Voltage: 110V

What is included:

• 1x DWS780-XJ 305mm XPS Compound Slide Mitre Saw 1675W 110V
• 2x Base Extensions
• 1x Blade Wrench
• 1x 60 Tooth Blade
• 1x Dustbag
• 1x Material Clamp

*Please note that 110V machines require a transformer plug and are not suitable for standard 240V UK sockets. Please see our range of 240V products for domestic purposes.
