Product Description

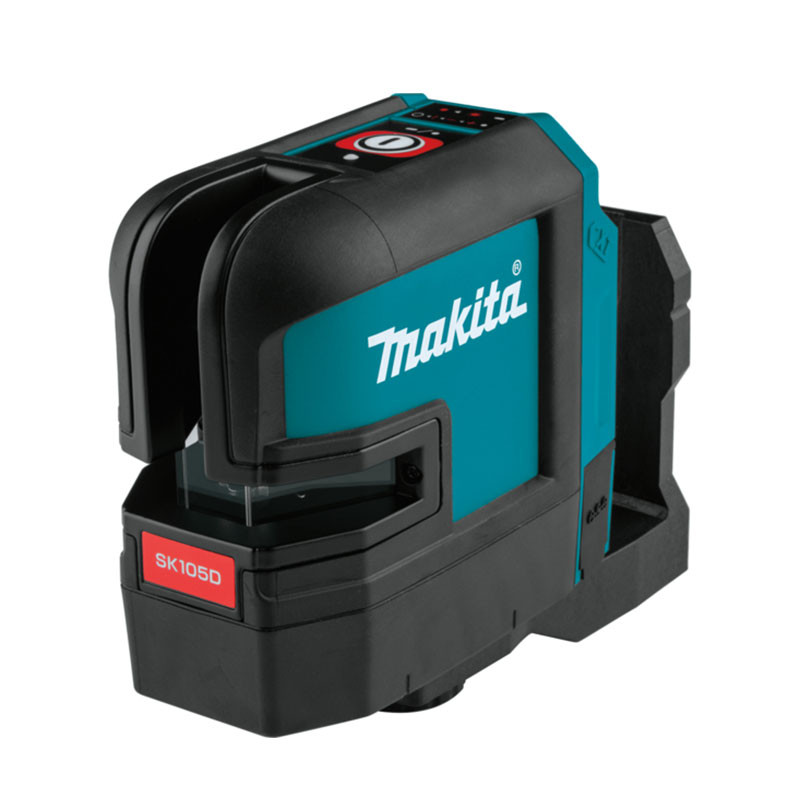

Makita SK105DZ 10.8V/12V Max CXT Self Levelling Red Laser Level (Body Only)

The Makita SK105DZ is a rechargeable red cross-line laser level powered by 12V Max CXT battery. The SK105DZ has a line visibility range up to 25m and is detectable up to 80m with a Makita Laser Detector (sold separately). It has a bright 635 nm class II red laser with ±0.3 mm/m = ±3.0 mm at 10m for best-in-class accuracy.

The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-levelling line stability is achieved in up to 3 seconds for increased productivity.

SK105DZ Features:

• Selectable horizontal/vertical cross reference lines required for level, align and plumb applications
• 10.8V/12V MAX CXT battery delivers the convenience of a rechargeable tool battery and up to 40 hours of continuous run-time (battery not included)
• Red line visibility range up to 25m depending on ambient light and detectable up to 80m with Makita Laser Detector (sold separately)
• Bright 635 nm class II red laser with ±0.3 mm/m = ±3.0 mm at 10m for best-in-class accuracy
• Laser line fan angle spans past the 180° horizontal line and 160° vertical line positions for full reference line coverage
• Fast self-levelling line stability is achieved in up to 3 seconds for increased productivity
• Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
• Self-levelling is correctable up to 4º of slope allowing operation on uneven surfaces
• Dust and water resistance with IP 54 rating for increased durability
• Highly protected laser windows are recessed into the housing for increased durability
• Rubberised housing over-mold for increased protection
• Simplified one button user interface for ease of operation
• Low laser brightness mode conserve battery power for extended run-time performance
• Multi-purpose magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods

SK105DZ Specification:

• Voltage: 12V
• Laser Colour: Red
• Beam Direction/Fan Angle: Vertical >160°, Horizontal >180°
• Range: 25m
• Range with Receiver: 80 m
• Self Levelling Accuracy: ±0.3 mm/m = ±3.0 mm @ 10m
• Horizontal/Vertical Line Accuracy: ±0.3 mm/m
• Self-Levelling Range: ± 4 º
• Self-Levelling Time: < 3 seconds
• Laser Type: 635 ± 5 nm, Class 2
• Laser Line Width at 5m Distance: < 2mm
• Approx. Continuous Run Time (4.0Ah): 40 hrs
• Operating Temperature Range: -10 - 50 ºC
• Storage Temperature Range: -25 - 70 ºC
• Tripod Thread: 1/4 "
• Net Weight: 0.67 - 0.84 kg
• Pulse Mode w/ Detector: Yes
• Pendulum Lock: Yes

What is included:

• 1 x SK105DZ Red Line Laser Body Only
• 1 x CD with User Manual
• 1 x Quick Reference Guide
• 1 x Safety Instructions
• 1 x Laser Target Plate
• 1 x L-Adaptor Mount (Magnetic)
• 1 x Carry Bag
