Product Description

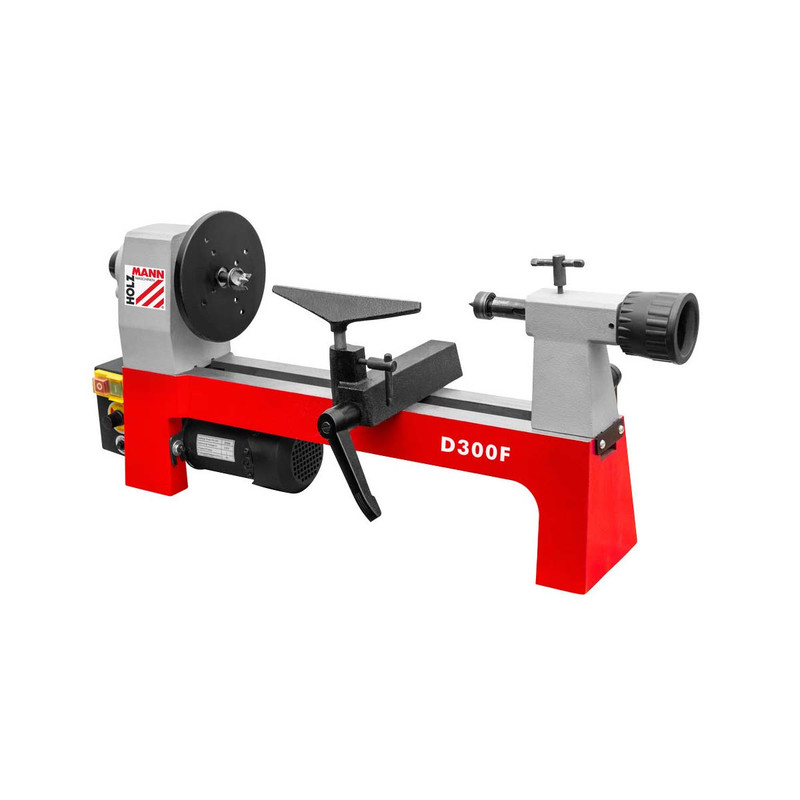

Holzmann D300F 300mm Vari-Speed Mini Woodturning Lathe

The Holzmann D300F is a small sized bench top woodturning lathe for the DIYer or woodturning enthusiast designed for doing small or miniature work. It features solid cast iron construction, smooth running 250 W induction motor with electric variable speed control, and 305 mm turning distance between centres. With a spindle center height of 105 mm allowing max. bowl turning Ø 210 mm. This hobby woodturning lathe is vibration free in use and is ideally suited to turning enthusiast wanting to create miniature work.

D300F Features:

• Grey cast iron machine bed, tail stock, tool rest and head stock made of grey cast iron
• MT1 tail stock with quick lock system
• Extremely quiet drive with POLY-V-belt
• Extended tool rest with quick lock system
• Quick adjustment for tail stock
• Large 145mm face plate, with rubber feet to minimize vibrations
• Spindle/tail stock bore 10mm
• 250 watt motor with overload protection
• Electronic variable speed control 750-3200 rpm

D300F Specifications:

• Voltage: 230V
• Motor power s1 in W: 250
• Center height in mm: 105
• Distance between centers in mm: 305
• Tailstock sleeve travel: 35
• Lathe spindle speed in min-1: 750-3200
• Tailstock cone: MK1/MT1
• Head stock spindle: M33 DIN800
• Gross weight in kg: 20
• Net weight in kg: 19
• Packaging width in mm: 335
• Packaging length in mm: 710
• Packaging height in mm: 190

What is Included:

• 1x Holzmann D300F 300mm Vari-Speed Mini Woodturning Lathe
• 1x 4-prong drive centre
• 1x Revolving centre punch
• 1x Face plate
• 2x Hand rest
• 1x Operational tools
