Milwaukee M18 FMDP-502C 18V Brushless Magnetic Drill with Permanent Magnet & 2x 5.0Ah Batteries

Description

Milwaukee M18 FMDP-502C 18V Brushless Magnetic Drill with Permanent Magnet & 2x 5.0Ah Batteries

The Milwaukee M18 FMDP-502C 18V Brushless Magnetic Drill with Permanent Magnet & 2x 5.0Ah Batteries is a cordless magnetic drill press designed for precision hole cutting in structural steel and heavy fabrication work. Powered by the M18 FUEL™ platform, it combines a POWERSTATE™ brushless motor, REDLINK PLUS™ intelligence and REDLITHIUM-ION™ batteries to deliver corded-level performance with the convenience of an 18V system. A self-powered permanent magnet with 8,890 N holding force and AUTOSTOP™ lift-off detection help maintain secure positioning on 1/4" steel while enhancing user protection. The 2-speed gear box offers optimised no-load speeds of 400 and 690 rpm for both annular cutters and twist drill bits, with a maximum broaching capacity of 38 mm diameter and 50 mm depth, plus 13 mm solid bit capacity. A 146 mm stroke length, keyless 19 mm Weldon reception and tool-free detachable handle support fast accessory changes and flexible control. Supplied with 2 x 5.0 Ah M18™ batteries, fast charger, kitbox, lubrication tank assembly and key accessories, it integrates seamlessly with the wider Milwaukee M18™ cordless range.

4933451013 Features:

• POWERSTATE™ brushless motor delivers corded magnetic drilling performance for demanding steel fabrication work
• Self-powered permanent magnet with 8,890 N holding force helps maintain secure attachment on 1/4" steel for safer operation
• 2-speed gear box with 400 and 690 rpm settings optimised for both annular cutters and twist drill bits
• Maximum broaching capacity of 38 mm and 50 mm depth supports a wide range of structural steel applications
• 13 mm straight shank drilling capacity allows the Milwaukee M18 FMDP-502C 18V Brushless Magnetic Drill to double as a compact drill press
• AUTOSTOP™ lift-off detection senses excess rotation and cuts power to enhance user protection
• REDLINK PLUS™ intelligence monitors load to protect the tool and batteries while maximising performance
• Supplied with 2 x 5.0 Ah M18™ REDLITHIUM-ION™ batteries for extended runtime on site
• On-board LED work light improves visibility when drilling in low-light or enclosed steelwork
• Tool-free detachable handle and 146 mm stroke length provide flexible control and accessory compatibility for magnetic drill tasks

4933451013 Specification:

• Brand: Milwaukee
• Model: M18 FMDP-502C
• System compatibility: M18™
• Voltage: 18 V
• Battery type: Li-ion
• Battery pack capacity: 5.0 Ah
• No load speed: 400 / 690 rpm
• Gearbox speeds: 2-speed
• Magnet type: Self-powered permanent magnet
• Magnet holding power (at drill point pressure): 8890 N
• Maximum diameter broaching capacity: 38 mm
• Maximum depth broaching capacity: 50 mm
• Maximum drilling capacity (solid bit): 13 mm
• Stroke length: 146 mm
• Holding force: 900 kg
• Minimum plate thickness: 6 mm
• Tool reception: Keyless 19 mm Weldon
• Chuck capacity: 13 mm
• Power supply: Cordless
• No. of batteries supplied: 2
• Charger supplied: 59 min
• Weight with battery pack: 13.0 kg
• Sound pressure level: 82.4 dBA
• Vibration level: 1.69 m/s²
• Product length: 350 mm
• Product type: Magnetic drill press
• Supplied in: Kitbox

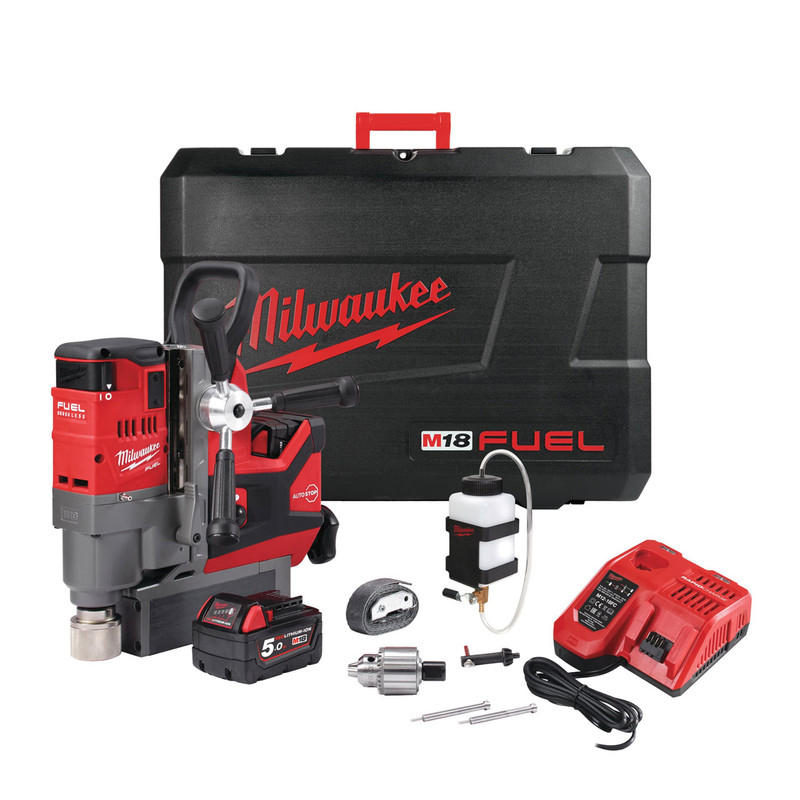

What is included:

• 1x Milwaukee M18 FMDP-502C 18V FUEL Brushless Magnetic Drill Press
• 2x M18 B5 18V 5.0 Ah REDLITHIUM-ION™ Batteries
• 1x M12-18 FC Multi-Voltage Fast Charger
• 1x Kitbox / blow-moulded carry case
• 1x Lubrication tank with hose
• 1x Magnetic lubrication tank holder
• 1x 13 mm chuck with Weldon adaptor
• 1x Chuck key
• 1x Ejector pin
• 1x Safety strap
