Product Description

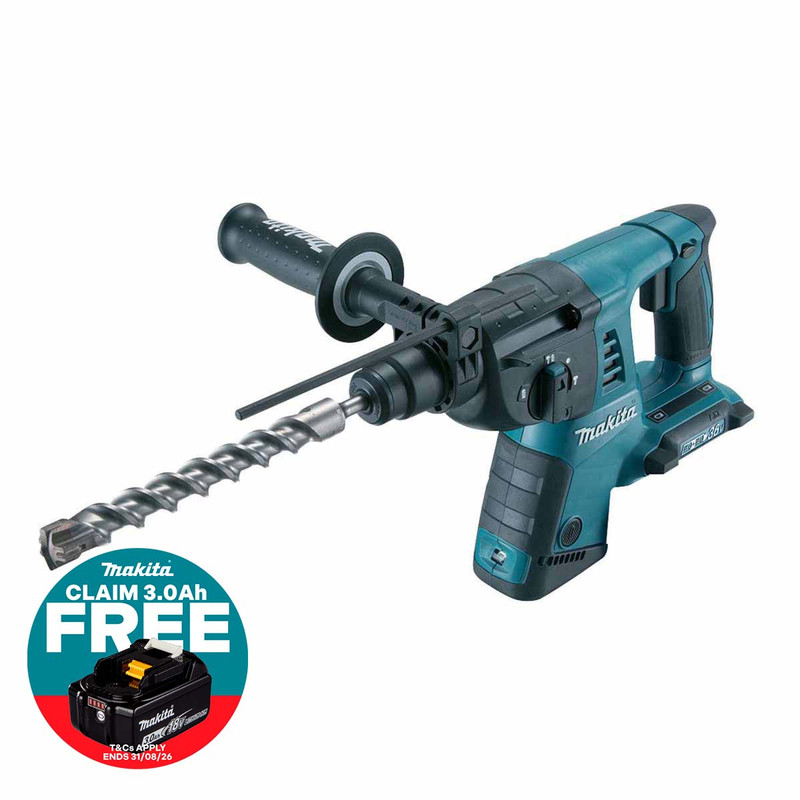

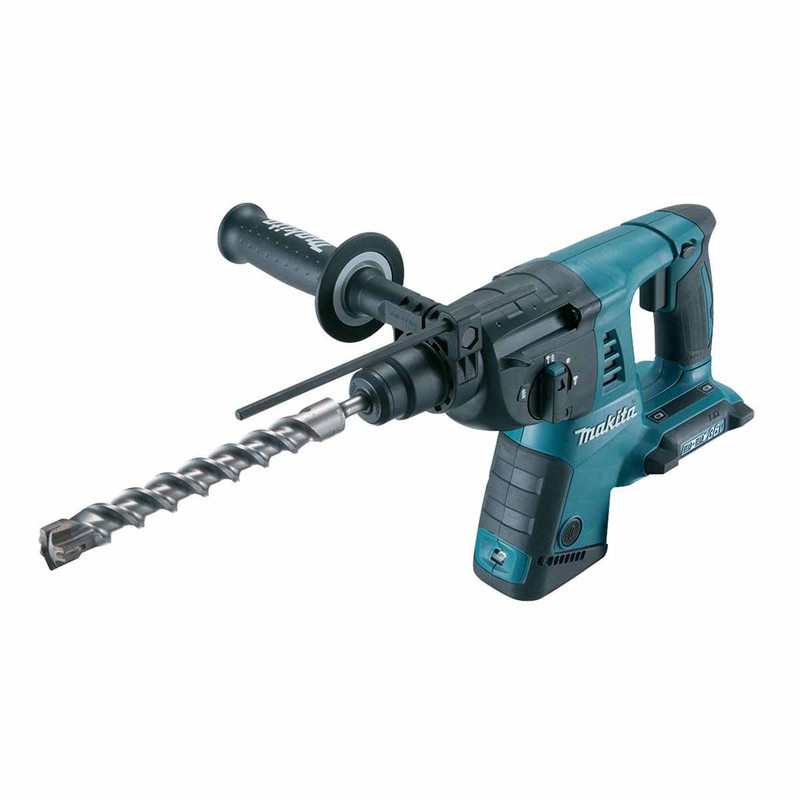

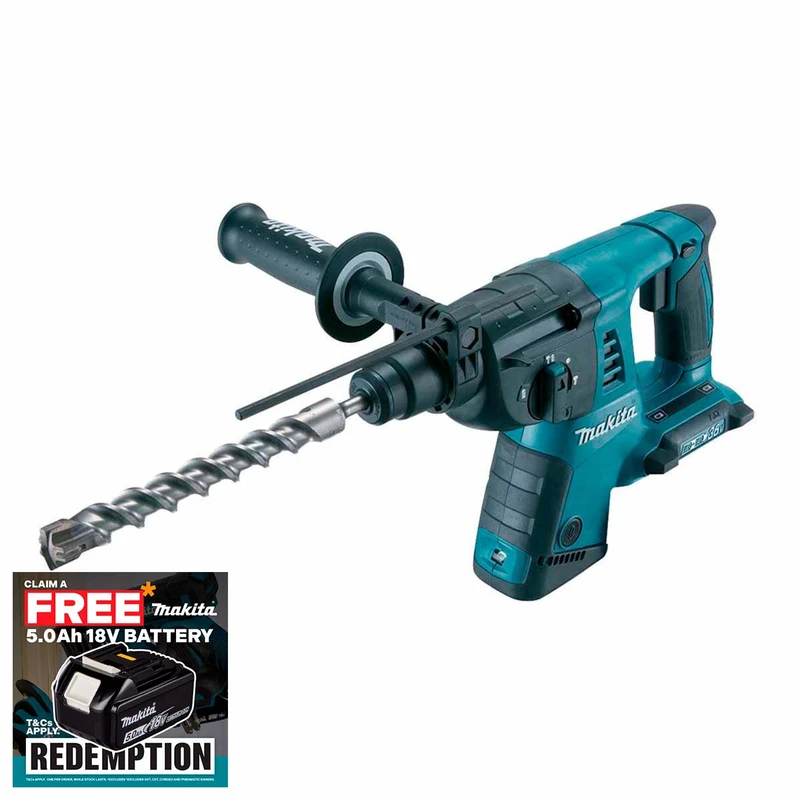

Makita DHR263Z Twin 18V 3-Mode SDS+ Rotary Hammer Drill (Body Only)
The Makita DHR263Z Twin 18V 3-Mode SDS+ Rotary Hammer Drill (Body Only) is a cordless SDS-PLUS hammer designed for professional drilling and chiselling in concrete, masonry, wood and steel. Powered by two 18V LXT lithium-ion batteries in series to deliver 36V performance, it offers three operating modes - rotation only, hammering only and rotary hammer - making it well suited to fixings, chasing and general construction work. With a maximum drilling capacity of 26mm in concrete, 32mm in wood and 13mm in steel, plus a no-load speed up to 1200rpm and impact rate up to 4800bpm, it provides fast, controlled drilling across common trade applications. The compact, ergonomic body, soft grip handle and LED job light support comfortable use and improved visibility on site, while the one-touch SDS-PLUS chuck and 40 bit-angle settings help you organise efficient bit changes and chisel positioning. This Makita cordless SDS+ hammer drill is supplied as a bare unit, with no batteries, charger or case included.
DHR263Z Features:
- Powered by twin 18V LXT batteries to deliver 36V performance for demanding SDS+ rotary hammer drilling
- Three-mode operation - rotation only, hammering only, or rotation with hammering - for versatile use across masonry and fixing tasks
- One-touch slide chuck accepts SDS-PLUS bits for fast, secure bit changes on site
- Impressive drilling capacity of up to 26mm in concrete, 32mm in wood and 13mm in steel to cover common trade applications
- High no-load speed up to 1200rpm and up to 4800 blows per minute for efficient drilling progress in tough materials
- Compact, ergonomic design with soft grip handle to maximise comfort and control during extended use
- LED job light with pre-glow and afterglow improves visibility when working in poorly lit areas
- 40 selectable bit-angle positions help you optimise chisel orientation for accurate breaking and chasing
- Battery capacity warning lamp and protection circuitry help safeguard batteries from over-discharge and overheating
- Supplied as a body-only cordless SDS+ hammer drill, ideal for trades already using Makita 18V LXT batteries
Specification
| top_feature: | Powered by twin 18V LXT batteries to deliver 36V performance for demanding SDS+ rotary hammer drilling |
| top_feature: | Three-mode operation - rotation only, hammering only, or rotation with hammering - for versatile use across masonry and fixing tasks |
| top_feature: | One-touch slide chuck accepts SDS-PLUS bits for fast, secure bit changes on site |
| top_feature: | Impressive drilling capacity of up to 26mm in concrete, 32mm in wood and 13mm in steel to cover common trade applications |
| top_feature: | High no-load speed up to 1200rpm and up to 4800 blows per minute for efficient drilling progress in tough materials |
| top_feature: | Compact, ergonomic design with soft grip handle to maximise comfort and control during extended use |
| top_feature: | LED job light with pre-glow and afterglow improves visibility when working in poorly lit areas |
| top_feature: | 40 selectable bit-angle positions help you optimise chisel orientation for accurate breaking and chasing |
| FQQ: | Is the Makita DHR263Z supplied with batteries and a charger? |
| FAA: | No, the Makita DHR263Z is supplied as a body-only tool. Batteries and charger are sold separately. |
| FQQ: | What type of bits does the Makita DHR263Z accept? |
| FAA: | The Makita DHR263Z is designed for SDS-PLUS bits. It features a one-touch sliding chuck for quick and easy bit changes. |
| FQQ: | How is the Makita DHR263Z powered? |
| FAA: | The DHR263Z is powered by two 18V LXT Li-ion batteries connected in series to deliver 36V performance. This twin-battery system provides the equivalent power of a 36V machine. |
| FQQ: | What are the operation modes of the Makita DHR263Z? |
| FAA: | The DHR263Z has three modes of operation: rotation only, hammering only, and rotation with hammering. This allows it to handle drilling, hammer drilling and chiselling applications. |
| FQQ: | What is the maximum drilling capacity of the Makita DHR263Z in different materials? |
| FAA: | The DHR263Z can drill up to 26mm in concrete, 32mm in wood and 13mm in steel. It also supports TCT core bits up to 54mm. |
| FQQ: | Does the Makita DHR263Z help reduce vibration and improve comfort? |
| FAA: | Yes, it has anti-vibration rear and side handles and an ergonomic soft grip for more comfortable operation. These features help reduce user fatigue during prolonged use. |
| FQQ: | What lighting features does the Makita DHR263Z include for working in dark areas? |
| FAA: | The DHR263Z is fitted with an LED job light that offers pre-glow and afterglow functions. This illuminates the work area for better visibility in low-light conditions. |
| FQQ: | What is the weight and overall size of the Makita DHR263Z? |
| FAA: | The DHR263Z has a net weight of approximately 4.7kg. Its compact, ergonomic design is about 350mm in length, helping to maintain easy handling and manoeuvrability. |
| FQQ: | How does the Makita DHR263Z manage battery capacity and protection? |
| FAA: | The tool features a battery capacity warning lamp and LED battery indicators to show charge level. A battery protection circuit helps protect against overloading, over-discharging and overheating, and the machine stops when the battery with less capa |
| FQQ: | What accessories are typically included with the Makita DHR263Z body-only tool? |
| FAA: | The body-only DHR263Z is typically supplied with a depth stop and side handle. No batteries, charger or carry case are included with the body-only version. |
| Model: | DHR263Z |
| Voltage: | 36V (2 x 18V LXT lithium-ion) |
| Battery type: | Lithium-Ion |
| Battery capacity compatibility: | Up to 5Ah |
| Chuck type: | SDS-PLUS |
| No-load speed: | 0-1200rpm |
| Impacts per minute: | 0-4800bpm |
| Impact energy: | 2.5J |
| Max drilling capacity in concrete: | 26mm |
| Max drilling capacity in wood: | 32mm |
| Max drilling capacity in steel: | 13mm |
| Drilling modes: | Rotation only, hammering only, rotary hammer |
| Bit-angle settings: | 40 positions |
| LED job light: | Pre-glow and afterglow functions |
| Reverse control: | Forward and reverse action |
| Speed control: | Variable speed |
| Product weight: | 4.7kg |
| Buying option: | Body only |
| Included: | 1x Makita DHR263Z Twin 18V 3-Mode SDS+ Rotary Hammer Drill (Body Only) |
| Power Supply: | Cordless |
| Voltage: | Twin 18V |
| Batteries Included: | Body Only |
| Motor Type: | Brushed |
| No. of Modes: | 3 |
