Product Description

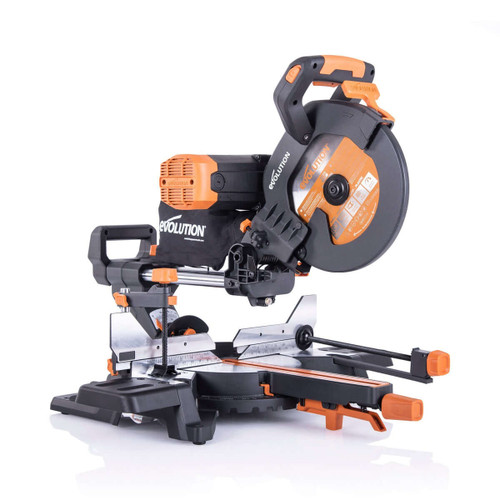

Evolution R255SMS-DB+ 255mm Double Bevel Sliding Mitre Saw 1600W 110V

The Evolution 240V 255mm Double Bevel Sliding Mitre Saw 053-0001A is ideal for use on-site by trade professionals. The saw can cut a variety of materials such as wood, mild steel, wood even with embedded nails, aluminium, plastic, copper and more thanks to the 28 tooth TCT blade and optimised gearbox and motor speed. When cutting mild steel, the saw produces a square, ready-to-weld cut with no heat, no burrs and virtually no sparks, far superior to abrasive cutting methods. The double bevel bevels 45° - 45° and mitres 50° - 50°. This saw is supplied with a wood blade, a multi-material blade, a top clamp, a front clamp a dust bag and three years warranty.

R255SMS-DB+ Features:

• Powerful 2000W motor optimised gearbox and blade system, designed to increase motor and blade life
• Precision cutting with laser guidance
• The Multi-material tungsten carbide tipped blade cuts wood, steel, aluminium, wood with embedded nails, plastic and many more material

R255SMS-DB+ Specification:

• Voltage: 110V
• Wattage: 1600W
• Speed No Load: 2600 min-1
• Max. Bevel (Left): 45° - 45°
• Max. Mitre: 50° - 50°
• Cable Length: 4m
• Blade Dia.: 255mm
• No. of Teeth: 28
• Bore: 25.4mm / 1 in.
• Kerf: 2mm
• Max. Cross Cut (0° x 0°): 300mm x 90mm
• Max. Bevel Cut Left (0° x 45°): 300mm x 52mm
• Max. Bevel Cut Right (0° x 45°): 300mm x 34mm
• Max. Mitre Cut (45° x 0°): 212mm x 90mm
• Max. Compound Cut Left (45° x 45°): 212mm x 52mm
• Max. Compound Cut Right (45° x 45°): 212mm x 34mm
• Mild Steel Plate (Max. Thickness): 1/4 in.
• Mild Steel Box Section (Max. Wall Thickness): 1/8 in.

What is included:

• R255SMS-DB+ 255mm Double Bevel Sliding Mitre Saw 1600W 110V
• 255mm (10 In.) 28 Tooth Multi-Material Cutting Blade
• Machine Table Extensions x2
• 6mm & 4mm Dual-Ended Hex Key
• Rotary Table And Neck
• Cutting Head
• Carriage Slides
• Mitre Locking Knob
• Mains Cable
• Guide/Clamp
• Self Tapping Cap Screw x1
• M6 x 16mm Socket Headed
• Screws x4 M5 x 12mm
• Socket Headed Screws x2
• Laser Lens Cap
• Cable Clip
• Slide Locking Knob
• Dust Port Adaptor
• Dust Collection Bag
• Quick Release Hold Down Clamp
• Instruction Manual
