Description

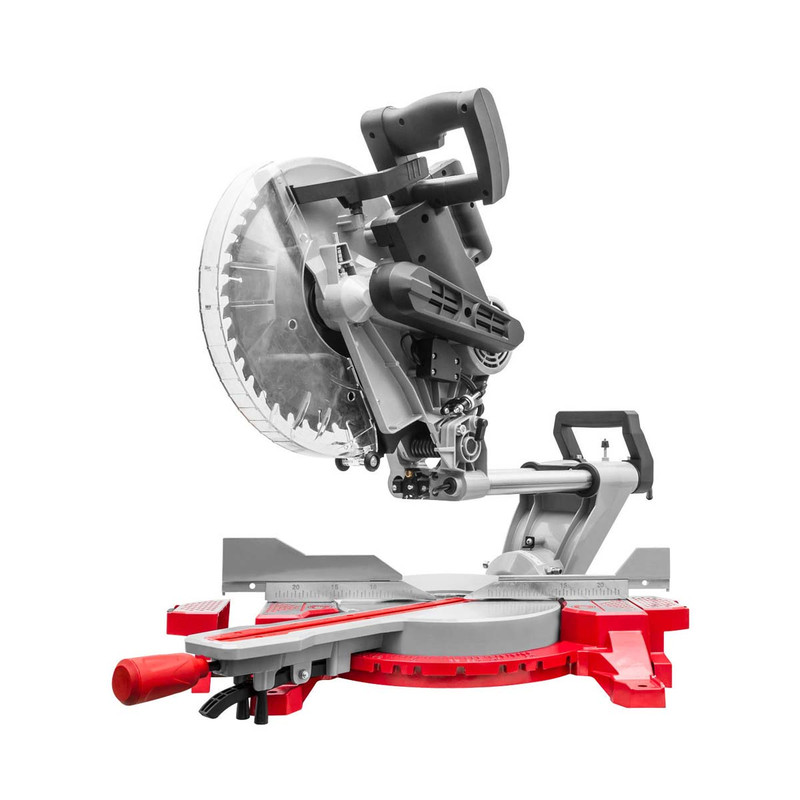

Holzmann KAP305ECO 305mm 2000W Double Bevel Sliding Mitre Saw 240V
The Holzmann KAP305ECO has a powerful 2000 W motor that can handle any material, a stable and precise sliding double bar guide that ensures smooth operation, and a 305mm high quality TCT sawblade that makes precise clean cuts and mitres. Whether you need to cut small or large boards, this machine can handle it. It has a 105 mm max. cutting height and a 330 mm cross-cut facility at 90°. Plus, it has a thin red laser that shows you exactly where the blade will cut. This is a high quality machine that is perfect for larger workshops and professional tradesmen who need a precision mitre saw.
KAP305ECO Features:
- Powerful 2000 W motor
- Drive belt system supports a low noise operation as well as a gentle mechanical treatment
- Double bevel sawing head left/right tiltable (-45°/+45°)
- Rotatablesawing head from -45° up to +45° - Mitre stop angles 45-31,6-22,5-0-22,5-31,6-45°
- Max. cutting height / width 105 mm / 330 mm
- Thin red laser line indicates cutting line
- Depth end stop included in delivery
- Stable and precise double bar guide
- Large aluminium die-cast base ensures high stability
- Suitable for making precise cross-cuts and mitres in solid timbers and narrow boards
KAP305ECO Specifications:
- Motor power in W: 2000
- Voltage: 240V
- Speed in rpm: 3800
- Protection class: II
- Engine type: IP20
- Cable length: 2 m
- Extraction connection in mm: Ø 37.5
- Installation dimension in mm: 890 x 600 x 490 (max 1140 x 1020 x 690)
- Max. Cutting height 90 ° in mm: 105
- Max. Cutting height 45 ° in mm: 60
- Max. Cutting length 90 ° in mm: 330
- Max. Cutting length 45 ° in mm: 230
What is Included:
- 1 x Holzmann KAP305ECO 305mm 2000W Double Bevel Sliding Mitre Saw
- 1 x tungsten carbide saw blade
- 1 x laser guide
- 1 x table extension
- 1 x user manual
