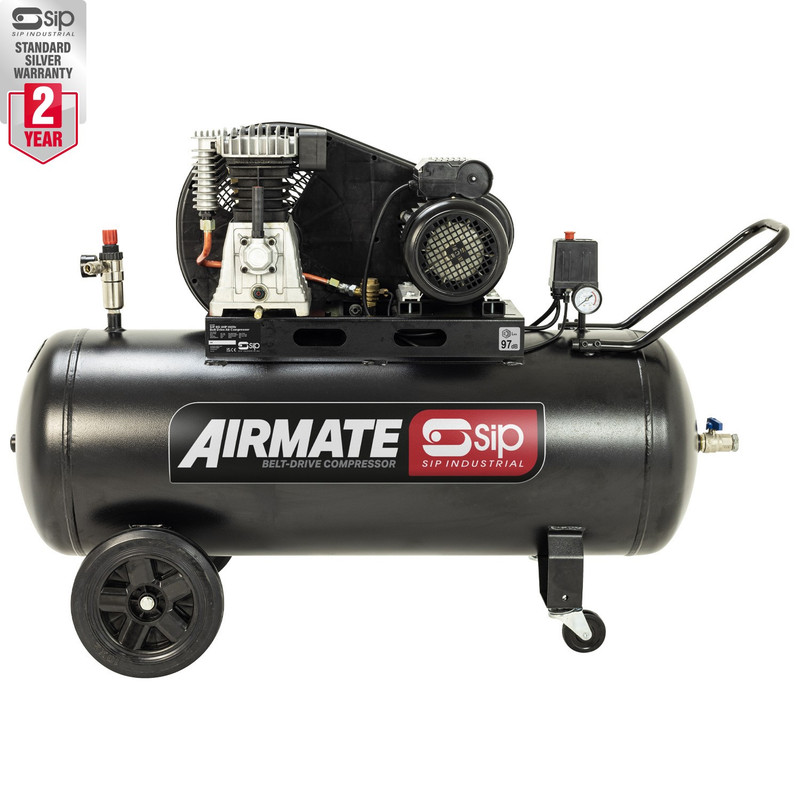

SIP 06476 BD 3HP 150L Belt Drive Compressor

Description

SIP 06476 BD 3HP 150L Belt Drive Compressor

Introducing the SIP 06476 BD 3hp 150 L Belt Drive Compressor—a robust and adaptable air compressor tailored for a wide range of applications in automotive, agricultural, and engineering environments. Engineered for daily use, this high-performance compressor features a larger pump that efficiently fills the receiver, resulting in a substantial 14CFM piston displacement and 10 CFM Free Air Delivery (FAD). This ensures a consistent air supply, making it perfect for pneumatic air tools and air compressor ring main applications. With its wheel-mounted design and U-handle, it offers full mobility in various work area settings, providing added flexibility and convenience. Ideal for automotive, agricultural, and engineering settings, this compressor is suitable for medium and large-sized work areas, excelling in pneumatic air tool applications.

06476 Features:

• Powerful belt drive transmission ensures consistent output for demanding applications.
• Heavy-duty motor (3hp / 2.2kW) enables the compressor to fully meet its performance capability.
• Bespoke belt guard improves airflow to the pump head for enhanced cooling and increased machine durability.
• Larger slow-running pump fills the receiver more quickly, enhancing air delivery.
• 14CFM piston displacement and 10 CFM Free Air Delivery (FAD) provide reliable performance.
• Slow-running pump helps reduce machine wear for longer running life.
• Aftercooler reduces moisture, enhancing corrosion protection and air quality.
• a 150 L receiver tank safely stores compressed air for application use at up to 10 bar air pressure.
• Built-in tank pressure and working pressure gauges optimise air delivery, providing accurate pressure displays.
• Adjustable air connectors and ball valves offer application versatility, with 2x adjustable connectors (0-10 bar) featuring air filter regulators.
• The 1x air receiver ball valve allows maximum airflow directly from the receiver.
• Features a 3m mains cable and operates from a 13A supply for flexibility, minimising the need for extension cables.
• Extra-large wheels and castors with U-handle ensure mobility around the work area, allowing full movement in various settings for increased flexibility.

06476 Specification:

• Input Supply: 230v (13A)
• Motor Power: 3hp (2.2kW)
• Receiver Size: 150ltr
• Piston Displacement: 14CFM (400ltr/min)
• Free Air Delivery (FAD): 10CFM (285ltr/min)
• Max. Air Pressure: 145psi (10bar)
• Noise Level: 97dB(A)
• Net Weight: 90.00kg
• Gross Weight: 98.00kg
• Product Dimensions: 820(H) x 1310(W) x 370mm(D)
• Packaged Dimensions: 980(H) x 1270(W) x 470mm(D)

What is included:

• SIP 06476 BD 3HP 150L Belt Drive Compressor
