Product Description

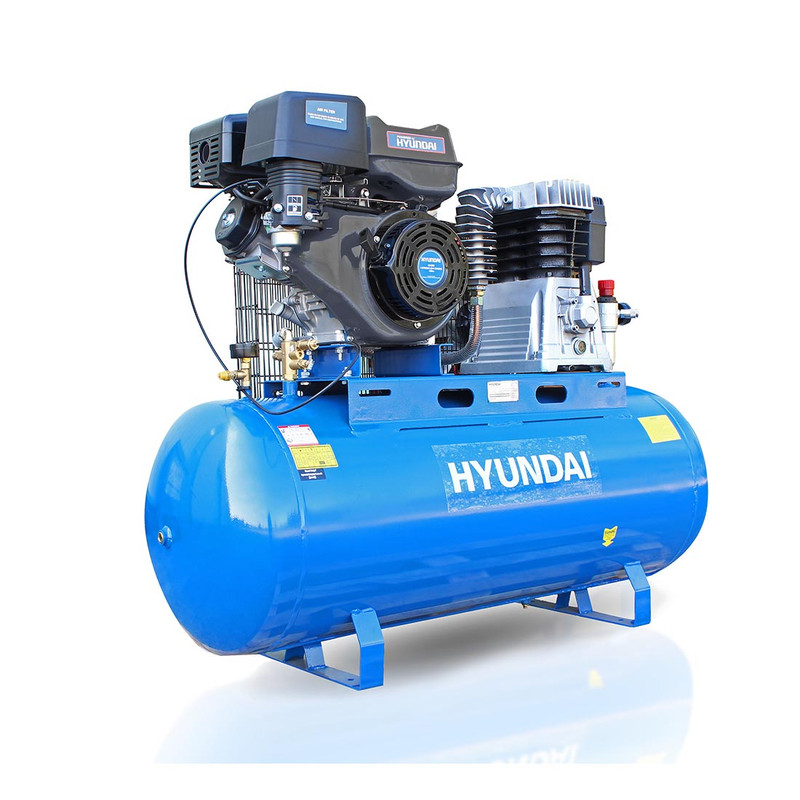

Hyundai HY140200PES 200L Floor-Mounted E-start Petrol Air Compressor 14hp 420cc

The HY140200PES is a powerful 14hp twin cylinder cast iron belt drive air compressor from Hyundai. Designed for professional workshops, mobile tyre fitting vehicles and trade applications the HY140200PES air compressor is ideal for powering heavy duty commercial vehicle 1” drive impact guns, inflating super single commercial vehicle tyres and general heavy mobile use.

HY140200PES Features:

• Powered by the Hyundai IC420 14hp electric start IC420 petrol engine.
• Twin cylinder belt drive slow running pump provides an air displacement of 29CFM / 800 litres per minute.
• Large 200 litre tank capacity.
• Fitted with Euro quick release connectors.
• Ideal for professional mobile workshop and commercial garage use.
• Covered by Hyundai 2 year warranty.
• Full spares available to maintain your air compressor for years to come.

HY140200PES Specification:

• Net Weight: 138kg
• Air Outlet Size (mm): 1/2" BSP thread and 2 x Euro Q/R Fittings
• Cut-in Pressure (PSI/Bar): 116/8
• Dimensions L x W x H (mm): 1320 x 470 x 1200
• Engine Model: 14hp Hyundai IC420E
• Engine Size: 420
• Speed (rpm): 3000
• Engine Type: Hyundai IC420 Single Cylinder
• Fuel Capacity (L): 6.5
• Fuel Type: Unleaded Petrol
• Horsepower (hp/kW): 14/9.67
• Oil Capacity (ml): 1100
• Pump Displacement (CFM / L/min): 29/800
• Pump Speed (RPM) (rpm): 1050
• Start Method: Recoil / Electric Start
• Tank Material: Rolled Steel
• Pump (RPM): 1000
• Air Flow - FAD: 600L/min / 21CFM
• Tank Capacity (litres): 200
• Maximum Pressure (psi): 145
• Maximum Pressure (bar): 10
• Air Displacement (LPM): 800
• Air Displacement (CFM): 29
• Air Flow - FAD (L/MIN): 600
• Air Flow - FAD (CFM): 21

What is included:

• 1x HY140200PES 200L Petrol Air Compressor 14hp 420cc
