Product Description

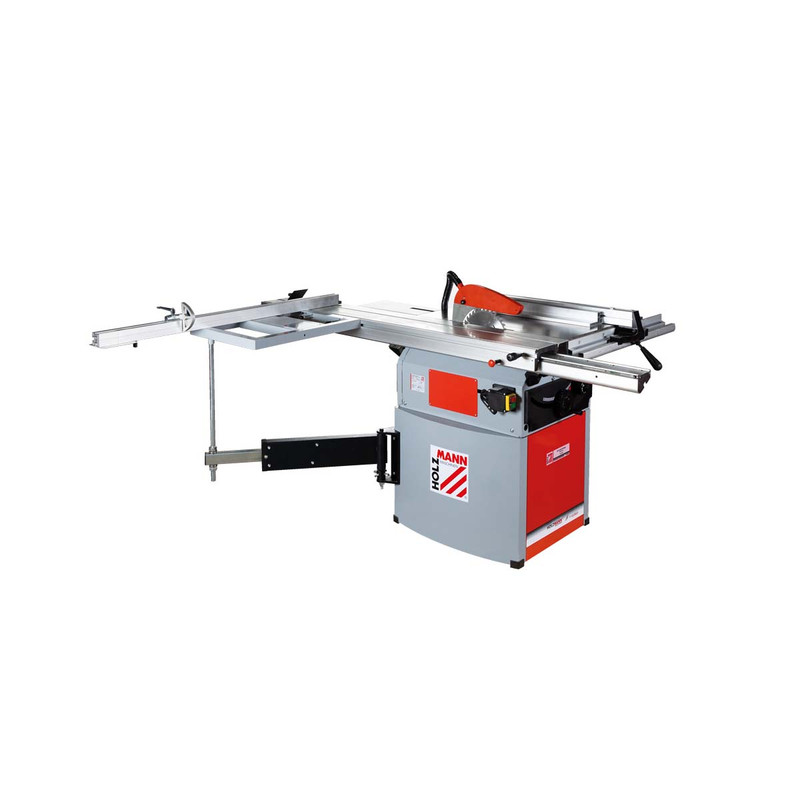

Holzmann TS250F 250mm Panel Sizing Saw 240V

The Holzmann TS250F is a mid-sized panel sizing table saw offering power, versatility, and accuracy all in the one package. Features include a powerful 2900 W motor, 1650 mm sliding table carriage offering a max. 1250 mm cross cutting capacity. Wider sheet material can be supported by the table width extension. Powerful and accurate machine for trimming sheet material and ripping down timbers.

TS250F Features:

• Precision panel sizing saw
• Powerful 2900 W motor (S6)
• Max cutting height 90° / 45° : 80 / 50mm
• height- and angle adjustable saw blade
• grey cast iron table with extension on the righthand side and at the back of the table
• smoothly running 1650 mm aluminium sliding table with rugged outrigger table incl. support roller
• cutting width at rip fence with max. 640mm
• sheet trimming length max. 1250 mm
• extractable mitre at rip fence with work piece end stop
• User-friendly, smooth and precise blade height and angle adjustment with hand wheel

TS250F Specifications:

• Motor power S6 in W: 2900
• Voltage: 240V / 50Hz
• Table size in mm: 800 x 350
• Table height in mm: 900
• Extraction connection in mm: Ø 100 (Ø30)
• Format sliding Table in mm: 1650 x 250
• Outrigger Table in mm: 595 x 460
• Table extension in mm: 405 x 210
• Table extension in mm: 800 x 320
• Installation dimension in mm: 2180 (-3225) x 2930 x 1150
• Max. Cutting height 90 ° in mm: 80
• Max.trimming length in mm: 1250
• Max. Cutting height 45 ° in mm: 50
• Cutting width at the rip fence in mm: 640
• Saw blade (/ hole) in mm: 254 (/ 30)
• Saw blade Speed in rpm: 4000
• Sound power level in dB (A): 95.7
• Sound pressure level in dB (A): 86.5
• Net weight in kg: 190
• Gross weight in kg: 233
• Packaging height in mm: 1,035
• Packaging width in mm: 760
• Packaging length in mm: 970

What is Included:

• 1 x Holzmann TS250F 250mm Panel Sizing Saw
• 1 x outrigger table
• 1 x table extension
• 1 x extendable cross-cutting stop including folding stop
• 1 x parallel stop
• 1 x trimming shoe
