Product Description

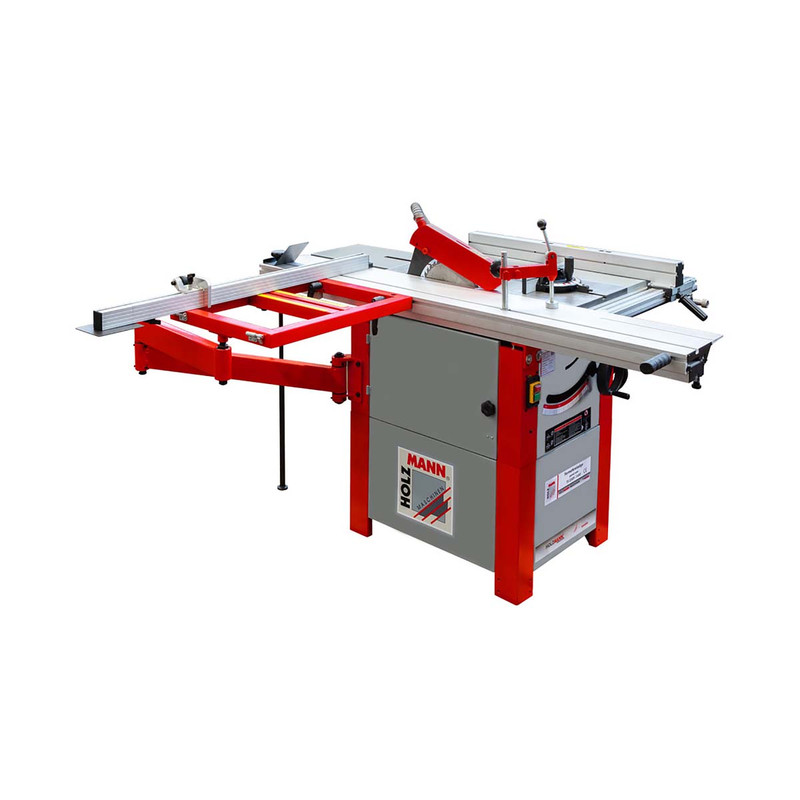

Holzmann TS250F1600 250mm 3100W Panel Sizing Saw 240V

The Holzmann TS250F1600 is a mid-sized panel sizing table saw offering power, versatility, and accuracy all in the one package. The machine features a powerful 3100 W motor, 1.6M sliding table carriage offering a max. 1400 mm cross cutting capacity. Wider sheet material can be supported by the table width extension. The TS250F1600 is the ideal mid-sized panel sizing table saw package for the semi-professional and serious woodworking enthusiast.

TS250F-1600 Features:

• Powerful 3100 W induction motor
• Cast iron table
• Rigid steel construction
• 250 mm Ø TCT sawblade
• 81 mm max. cutting height at 90°
• height- and angle adjustable saw blade
• grey cast iron table with extension on the right hand side and at the back of the table
• smoothly running 1600 mm aluminium sliding table with rugged outrigger table incl. support roller
• extractable mitre at rip fence with work piece end stop
• cutting width at rip fence with max. 590mm

TS250F-1600 Specifications:

• Motor power in W : 3100
• Voltage : 230 V
• Table size in mm : 760 x 350
• Table height in mm : 865
• Table extension in mm : 300×760 / 280×400
• Extraction connection Ø in mm : 100
• Format sliding Table in mm : 1600 x 230
• Max. Cutting height 90 ° in mm : 80
• Max.trimming length in mm : 1400
• Max. Cutting height 45 ° in mm : 60
• Cutting width at the rip fence in mm : 590
• Saw Blade Ø (bore) in mm : 250 (30)

What is Included:

• 1 x Holzmann TS250F1600 250mm 3100W Panel Sizing Saw
• 1 x T.C.T. circular saw blade Ø250mm
• 1 x extensions
• 1 x table extensions
• 1 x rip fence
• 1 x mitre fence
• 1 x telescopic fence
