Product Description

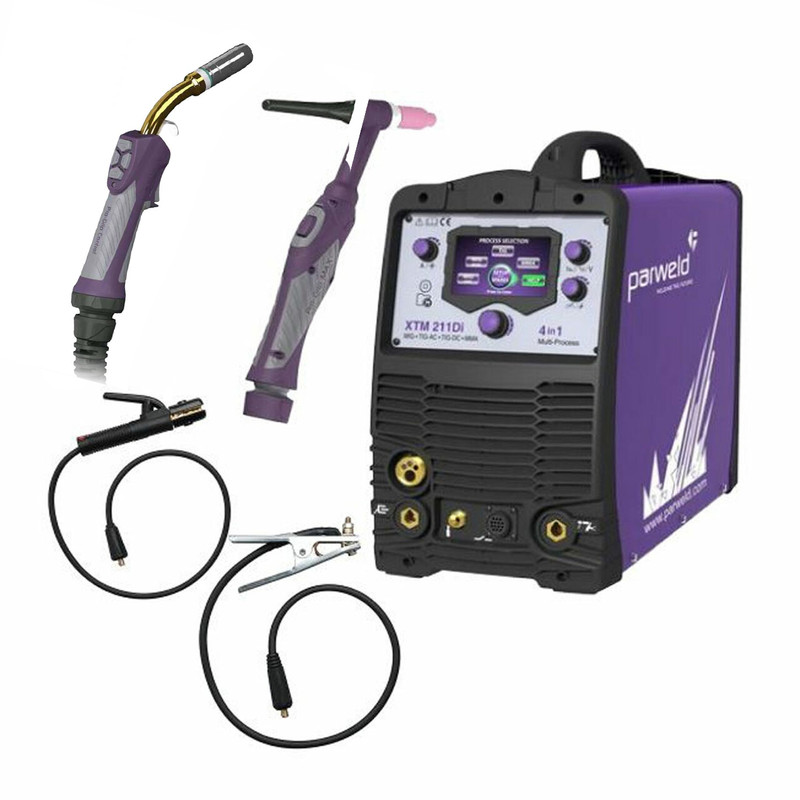

Parweld XTM211DI-P2 4 in 1 Multi-Process Inverter
The XTM 211Di MIG Inverter has 4 different processes available to the user making it ideal for the welding of Steels, Stainless Steels and Aluminium using the MIG, AC TIG, DC TIG or MMA process. The machine uses auto polarity switching so there is no need to change the work lead connections on the front of the machine. Instant swapping between the MIG and TIG processes with one touch of the torch trigger makes it well suited to pipe applications or multi process workshops. The multi-language digital user interface rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop.
XTM211DI Features:
- Large high quality colour screen with multi language easy to follow digital interface
- View and adjust machine parameters from the MIG torch handle
- HF Start TIG
- Instant swapping between MIG and TIG process with one touch of the torch trigger
- Rapid synergic setup for MIG, TIG & MMA
- MIG Weld, down to 0.9mm thick material
- Memory function for all processes to save and recall welding programs
- Supplied with MMA lead set, input cable and 2 gas hoses
- Pulse TIG function for superior arc control
XTM211DI Specification:
- Parameter: Value
- Style: Portable
- Machine Type: Inverter MIG/TIG/MMA
- Voltage: Range
- MIG: 14.5-24V
- TIG: 10.4-18.8V
- MMA: 20.4-28V
- Spool Size: 300mm (15kg) 200mm (5kg)
- Feed Box: 2 Roll
- Wire Size: 0.6-1.0mm
- Duty Cycle: 200A @ 25%
- Input Voltage: 110V / 230V (Smart Switching)
- Maximum Current: 140A / 200A
- Input: Current DC (Eff)
- MIG: - 21.4A @ 110V / 15A @ 230V
- TIG: - 20.5 @110V / 11.3A @ 230V
- MMA: - 20.6 @110V / 15.4A @ 230V
- Minimum Fuse Rating: 32A @ 110V / 16A @ 230V
- KVA: 3.7
- Generator Size: 7 KVA
- Enclosure Protection: IP23S
- Dimensions: (LxWxH mm) 615 x 275 x 495
- Weight: (kg) 27.8
What is included:
- 1 x Parweld XTM211DI-P2 4 in 1 Multi-Process Inverter
- 1 x MMA leads
- 1 x Twin gas hoses
- 1 x 3M 250A MIG torch 4 Button
- 1 x PRO TIG 4M torch with 3 button control
- 1 x Gas regulator
*Please note that this is shipped on a pallet.
