Product Description

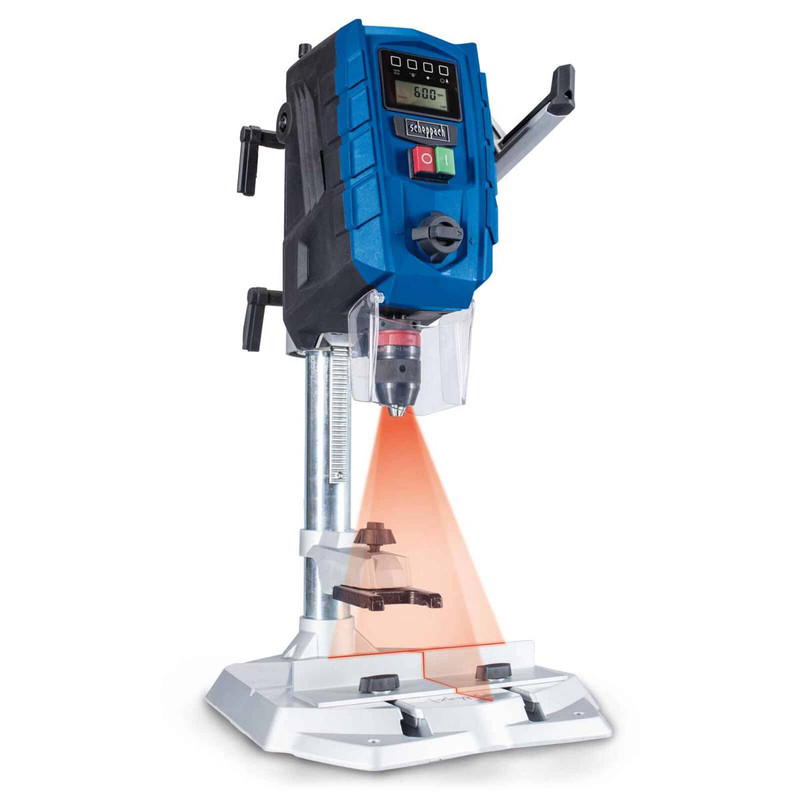

Scheppach DP60 Bench Pillar Drill 710W

The Scheppach DP60 Bench Pillar Drill is a powerful and accurate workshop drilling machine designed for precision work in wood, steel, plastic and other suitable materials. Its robust bench-mounted construction provides the stability and control required for accurate and repeatable drilling, making it suitable for both DIY enthusiasts and workshop users.

Powered by a 710W motor with a two-speed transmission, the DP60 provides a broad variable speed range from 170 to 2600rpm. Lower spindle speeds deliver greater control for demanding drilling applications, while higher speeds are suited to smaller drill bits and materials requiring faster cutting speeds.

The machine features electronic speed and depth displays to simplify accurate setup and repeat drilling. An integrated laser guide assists with precise hole positioning, while the quick-clamp system, parallel stop and depth stop help secure workpieces and maintain consistency across multiple drilling operations.

Built around a stable 330 x 300mm base and robust 46mm column, the DP60 is designed to provide dependable workshop performance. Combining a wide speed range, modern electronic controls and practical workpiece positioning features, it is an excellent solution where drilling accuracy and repeatability are essential.

DP60 Features:

• 710W electric motor provides powerful and dependable drilling performance
• Two-speed transmission with variable adjustment provides a broad 170–2600rpm speed range
• Digital speed and depth displays support accurate setup and repeatable drilling
• Integrated laser guide improves hole positioning and drilling precision
• Quick-clamp system helps secure workpieces firmly during operation
• Parallel stop supports accurate alignment for repetitive drilling tasks
• Depth stop allows controlled and consistent drilling depths
• Chuck guard provides additional protection around the drilling area
• Stable bench-mounted construction supports accurate workshop operation

DP60 Specification:

• Brand: Scheppach
• Model: DP60
• Article Number: 5906821905
• Drive Type: Electric
• Power: 710W / 1.0hp
• Transmission: 2-Speed
• Speed Range: 170–2600rpm
• Chuck Taper: B16
• Distance from Chuck to Column: 125mm
• Column Diameter: 46mm
• Column Length: 640mm
• Base Dimensions: 330 x 300mm
• Cable Length: 2m
• Appliance Class: Class II
• Degree of Protection: IP20
• Battery Included: No

What is included:

• 1 x Scheppach DP60 Drilling Machine
• 1 x Quick Clamp
• 1 x Base Plate
• 1 x Parallel Stop
• 1 x Handle
• 1 x Chuck Guard
• 2 x 3.0 x 12mm Screws
• 1 x Clamping Lever
• 1 x Depth Stop
• 1 x 4mm Allen Key
• 1 x 16mm Open-Ended Spanner
• 4 x M8 x 50mm Screws
• 4 x M8 Nuts
• 8 x Washers
• 1 x Operating Manual
