Product Description

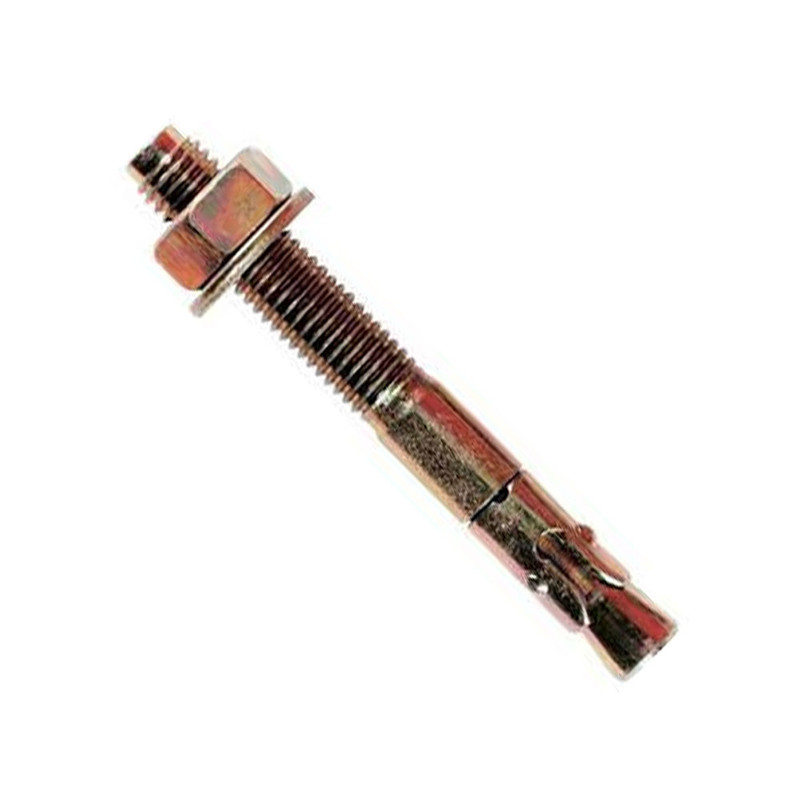

JCP Fixings TB12080 Zinc Yellow Passivated 12 x 80mm Throughbolts (20 Pack)

The Throughbolt is the ultimate "through fixing" with the hole diameter as the bolt diameter. It is ideal for bolting in place awkward fixtures without the need for marking out, removal and repositioning. It is a torque controlled anchor suitable for use in concrete over C20/25 strength.

TB12080 Features:

• Through Fixing
• Medium to heavy duty loads
• Torque controlled expansion
• Supplied pre-assembled for rapid installation

TB12080 Specification:

• Thread Diameter: 12mm
• Anchor length: 80mm
• Hole Diameter: 12mm
• Maximum Fixture Thickness: 5mm
• Fixture Clearance Hole: 14mm
• Thread Length: 30mm
• Embedment Depth: 60mm
• Minimum Hole Depth: 65mm
• Structure Thickness: 170mm
• Installation Torque Nm: 34

What is Included:

• 1 x JCP Fixings TB12080 Zinc Yellow Passivated 12 x 80mm Throughbolts (20 Pack)
