Product Description

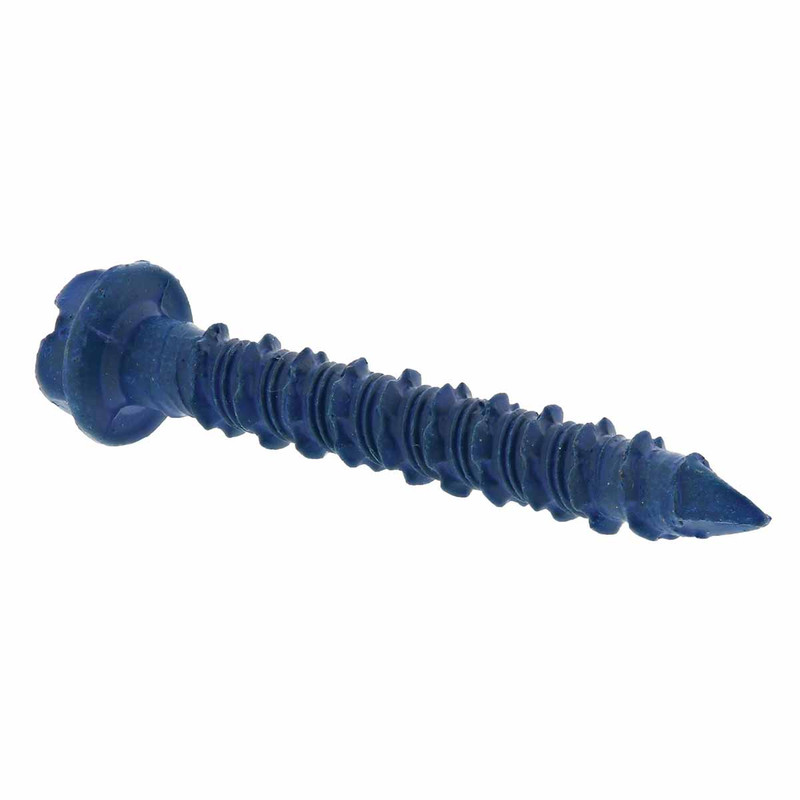

Spit 921503 Tapcon Concrete Screw Hexagonal Head Blue 5 x 57/32 (100 Pack)
The Spit 921503 Tapcon Concrete Screw Hexagonal Head Blue 5 x 57/32 (100 Pack) is a hex head self-tapping concrete screw designed for secure fixings into non-cracked concrete, bricks and blocks within the masonry screw category. Engineered to cut its own thread into the base material, it delivers a fast, clean installation without the need for plugs, making it ideal for professional trade use on site. The non-expansion design allows anchors to be placed close to edges and in tight centres without risking cracking or spalling of the substrate. With a 6 mm diameter and 57 mm anchor length, this Tapcon screw offers high load performance from a compact fixing, supported by a Blue Climaseal mechanical galvanised coating for corrosion resistance in dry interior environments. It is widely used for steel framing systems, railings, brackets, cable trays, suspended ceilings, ductwork, wood battens and general service fixings to masonry. Supplied in boxes of 100 screws, it provides a consistent, ready-to-use anchoring solution for repetitive installations.
921503 Features:
- Spit 921503 Tapcon Concrete Screw Hexagonal Head Blue 5 x 57/32 (100 Pack) provides a high-performance concrete anchoring solution for masonry fixings
- Hex head self-tapping design cuts its own thread in concrete, bricks and blocks for fast, reliable installation
- Suitable for non-cracked concrete substrates, supporting secure fixings in typical structural and service applications
- No expansion action allows close edge fixing and close spacing between anchors without risking substrate damage
- Removable anchor design enables temporary fixings that can be adjusted or taken down as site requirements change
- 6 mm diameter anchor with 57 mm anchor length balances high load capacity with compact fixing size
- Small drilling diameters reduce drilling time and wear on bits, helping to maximise installation productivity
- Blue Climaseal mechanical galvanised coating offers enhanced corrosion resistance for dry interior environments
- Carbon steel construction delivers robust performance for steel framing, railings, brackets, cable management and ductwork fixings
- Supplied in a 100 box for convenient stocking on site and consistent repeat fixings across larger projects
Specification
| top_feature: | Spit 921503 Tapcon Concrete Screw Hexagonal Head Blue 5 x 57/32 (100 Pack) provides a high-performance concrete anchoring solution for masonry fixings |
| top_feature: | Hex head self-tapping design cuts its own thread in concrete, bricks and blocks for fast, reliable installation |
| top_feature: | Suitable for non-cracked concrete substrates, supporting secure fixings in typical structural and service applications |
| top_feature: | No expansion action allows close edge fixing and close spacing between anchors without risking substrate damage |
| top_feature: | Removable anchor design enables temporary fixings that can be adjusted or taken down as site requirements change |
| top_feature: | 6 mm diameter anchor with 57 mm anchor length balances high load capacity with compact fixing size |
| top_feature: | Small drilling diameters reduce drilling time and wear on bits, helping to maximise installation productivity |
| top_feature: | Blue Climaseal mechanical galvanised coating offers enhanced corrosion resistance for dry interior environments |
| FQQ: | What type of fixing is the Spit 921503 Tapcon Concrete Screw Hexagonal Head Blue? |
| FAA: | It is a hex head, self-tapping concrete screw that cuts its own thread into masonry materials. It acts as a high-performance concrete anchor for fastening into concrete, brick and block. |
| FQQ: | What materials can the Spit 921503 Tapcon Concrete Screw be used in? |
| FAA: | It is suitable for use in concrete, masonry, blockwork, pre-cast hollow concrete beams and wood. It is also designed for use in bricks and blocks. |
| FQQ: | What are the dimensions and pack quantity of the Spit 921503 Tapcon Concrete Screw? |
| FAA: | This screw has an anchor diameter of 6 mm and an anchor length of 57 mm. It is supplied in a box of 100 screws. |
| FQQ: | What fixture thickness can the Spit 921503 Tapcon Concrete Screw accommodate? |
| FAA: | The screw suits fixture thicknesses up to 32 mm. This allows it to cover a wide range of light to medium duty applications. |
| FQQ: | Does the Spit 921503 Tapcon Concrete Screw require plugs or separate expansion anchors? |
| FAA: | No, the screw cuts its own thread directly into the base material and does not require a plug or separate expansion anchor. It replaces small diameter expansion anchors, plugs and screws in light to medium duty applications. |
| FQQ: | Is the Spit 921503 Tapcon Concrete Screw removable and suitable for temporary fixings? |
| FAA: | Yes, the anchor is removable and adjustable. This makes it suitable for temporary fixings where the screw may need to be taken out after use. |
| FQQ: | What drilling depth is required when installing the Spit 921503 Tapcon Concrete Screw? |
| FAA: | The minimum drilling depth for this screw is 35 mm. Small drilling diameters help to make setting fast and easy. |
| FQQ: | Can the Spit 921503 Tapcon Concrete Screw be installed close to edges or other fixings? |
| FAA: | Yes, the screw has no expansion, so it can be set close to edges and close to each other. This helps maximise fixing positions in restricted areas. |
| FQQ: | What type of coating does the Spit 921503 Tapcon Concrete Screw have? |
| FAA: | The screw has an electroplated and passivated zinc finish with a blue identifying coating. This blue coating provides corrosion-resistant protection in site conditions. |
| Product code: | 921503 |
| Product name: | Spit Tapcon HEX HEAD BLUE Concrete Screw |
| Anchor type: | Hex head self-tapping concrete screw |
| Substrates: | Non-cracked concrete, bricks, blocks |
| Diameter anchor: | 6 mm |
| Anchor length: | 57 mm |
| Min drilling depth: | 35 mm |
| Max fixing thickness: | 32 mm |
| Box quantity: | 100 |
| Material: | Carbon steel |
| Coating: | Mechanical galvanised with Blue Climaseal |
| Corrosion resistance - Kesternich (DIN 40018 2.0L): | 30 cycles - 10% or less rust |
| Corrosion resistance - salt spray (ASTM B117): | 720 hours - 10% or less rust |
| Recommended use environment: | Dry interior locations only |
| Approvals: | ICC-ESR 1671 for masonry |
| Included: | 1x Spit 921503 Tapcon HEX HEAD BLUE Concrete Screw box (100 screws) |
| brand-link-xt: | https://www.toolden.co.uk/brands/paslode/spit-pulsa-nail-guns/ |
| brand-name-xt: | https://cdn11.bigcommerce.com/s-hczpll0y/images/stencil/original/image-manager/v2-spit-brand-8.png |
| Country of Origin: | United Kingdom |
| screwsize: | 5 x 57mm |
| screwqty: | 100 |
| screwdrive: | Hex |
