Product Description

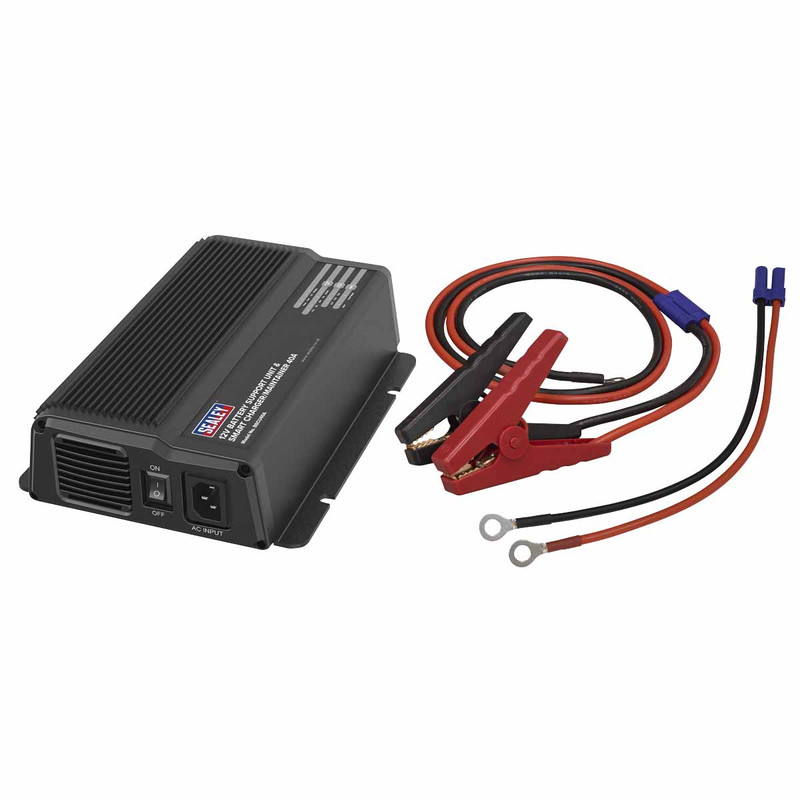

Sealey BSCU40A 12V Battery Support Unit & Smart Charger/Maintainer 40A

12V 40A Smart Battery Support Unit and charger designed to both charge 12V batteries and provide support for the battery during prolonged electronic diagnostic checks and reprogramming. Suitable for charging and maintaining a variety of VRLA, Gel, AGM/EFB, leisure and lithium batteries. Safety features include over-charge, over-heat, short circuit and reverse polarity protection. Temperature sensor allows accurate charging of battery even when cold. Compact design with mounting holes for permanent fitting. Once fully charged, battery may be left connected to be automatically conditioned and maintained. Optional Float mode from 13.2V, 13.5V and 13.8V so it can be matched to the manufacturer’s guidelines.

BSCU40A Features:

• Battery support unit - 12v 40a smart battery support unit and charger designed to both charge 12v batteries and provide support for the battery during prolonged electronic diagnostic checks and reprogramming.
• compatible battery types - suitable for charging and maintaining a variety of vrla, gel, agm/efb, leisure and lithium batteries.
• safety features - safety features include over-charge, over-heat, short circuit and reverse polarity protection.
• temperature sensor - temperature sensor allows accurate charging of battery even when cold.
• wall mountable - compact design with mounting holes for permanent fitting.
• automatic maintainig function - once fully charged, battery may be left connected to be automatically conditioned and maintained.
• adjustable float modes - optional float mode from 13.2v, 13.5v and 13.8v so it can be matched to the manufacturer’s guidelines.
• 2 year guarantee*.

BSCU40A Specification:

• Model No BSCU40A
• Brand: Sealey
• Cable & Clamp Length: 1.1m
• Nett Weight: 2kg
• Output: 12V
• Zero Volt Charging: Yes
• Battery Support/DC Supply Mode: Yes
• Supply (Current): 4.3A
• Supply (Current): 230V
• Plug Type: 3-Pin
• Power Supply Cable Length: 1.65m
• Cable and Clamp Length: 1.10m
• Charger Type:Traditional (T) or Intelligent (HF): HF
• Battery Range: 80-500Ah
• Max Size Battery (AH) Full charge in 12hrs from Discharged: 480Ah
• Output Charge Peak: 40A
• Output Start Peak: N/A
• Weight: 2kg
• Type of Battery:
• VRLA (Lead Acid): Yes
• GEL: Yes
• AGM/EFB: Yes
• Lithium: Yes
• Leisure (Deep Discharged): Yes

What is included:

• 1x Sealey BSCU40A 12V Battery Support Unit & Smart Charger/Maintainer 40A
