Product Description

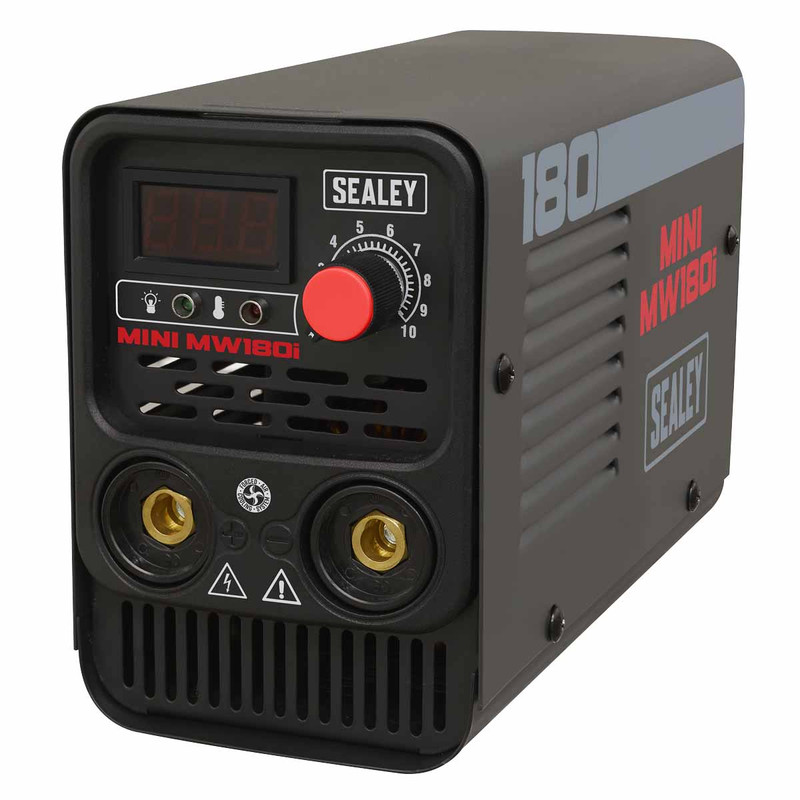

Sealey MINIMW180i Inverter Welder 180A/230V

Ultra-compact and lightweight unit weighing just 4kg approx. Portability allows the welder to be taken to the job at hand, ideal for mobile technicians. Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø5mm. Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions. Supplied with 1.6m 25mm² cable with electrode holder and a 1.4m 25mm² earth clamp and cable, both with 10-25 dinse connectors. Forced air cooling system.

MINIMW180i Features:

• Ultra compact and lightweight - ultra-compact and lightweight unit weighing just 4kg approx.
• ideal for a mobile technician - portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
• suitable for most arc/mma welding rods - unit can arc/mma weld a variety of rods including rutile, basic and stainless from ø1.6mm up to ø5mm.
• user friendly functions - features led display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
• supplied with - supplied with 1.6m 25mm² cable with electrode holder and a 1.4m 25mm² earth clamp and cable, both with 10-25 dinse connectors.

MINIMW180i Specification:

• Model No MINIMW180i
• Brand: Sealey
• Nett Weight: 4.1kg
• Welding Current: 20-180A
• Duty Cycle: 60% @ 180A, 100% @ 140A
• Absorbed Power: 7.8kW
• Electrode Capacity: 1.6-5.0mm
• Supply: 230V - 16A*
• Plug Type: Bare Wire
• Power Supply Cable Length: 2m
• IP Rating: IP21S
• Weight: 4.7kg
• *Note To achieve maximum power a 16A supply may be required.

What is included:

• 1x Sealey MINIMW180i Inverter Welder 180A/230V
