Product Description

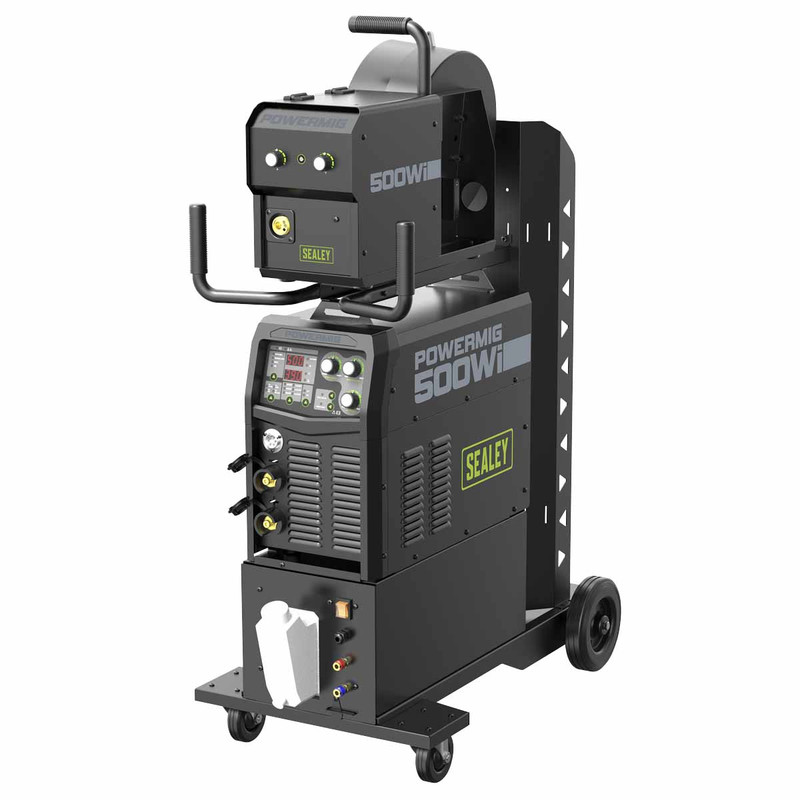

Sealey POWERMIG500Wi 500A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder with Portable Wire Feeder & Water Cooler 400V 3ph

Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians. Fitted with a portable wire feeder allowing access into high or tight spaces that otherwise would not be possible. In-built water cooler allows the torch to remain cooler for longer enhancing efficiency and productivity. Maximum output of 500A making it ideal for welding a large variety of metals including Steel, Stainless Steel up to 20mm. 2T/4T torch trigger function allowing greater precision during longer welds. Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder. Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm. Electrode capacity from 1.6mm to 5mm. Duty Cycle: MIG 60% @ 500A, MMA 60% @ 500A, TIG 60% 500A. POWERMIG500Wi is also supplied with a water cooler to prolong duty cycle and efficiency.

POWERMIG500Wi Features:

• Multi process inverter welder - multi process igbt inverter gas/gasless mig/tig/mma welder suitable for professional fabricators and workshops, as well as mechanics and technicians.
• portable wire feeder – fitted with a portable wire feeder allowing access into high or tight spaces that otherwise would not be possible.
• water cooled – in-built water cooler allows the torch to remain cooler for longer enhancing efficiency and productivity.
• 500a max output - maximum output of 500a making it ideal for welding a large variety of metals including steel, stainless steel up to 20mm.
• 2t/4t trigger function - 2t/4t torch trigger function allowing greater precision during longer welds.
• accessories included - supplied with 2m power cable, 2m earth clamp, 3m euro mig torch and 2m electrode holder.
• wire capacity - wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm.
• electrode capacity - electrode capacity from 1.6mm to 5mm.
• 3 year guarantee*.

POWERMIG500Wi Specification:

• Model No POWERMIG500Wi
• Brand: Sealey
• Nett Weight: 55.7kg
• Welding Current: 30-500A
• Wire Capacity: 5-15kg
• Electrode Capacity: 1.6-5mm
• Duty Cycle MIG: 60% @ 500A 100% @ 388A
• Duty Cycle TIG: 60% @ 500A 100% @ 388A
• Duty Cycle MMA: 60% @ 500A 100% @ 388A
• Gas Type: CO2, Argon, CO2/Argon Mix
• Mig Torch (inc): 3m Euro Non-Live Torch
• Supply: 400V 3ph
• Plug Type: Bare Wire
• Power Supply Cable Length: 2m
• Weight: 55.7kg
• IP Rating: IP21S
• Absorbed Power: 19.04kW
• Input Current: 39.5A (MMA), 40A (MIG)
• Output Voltage: 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG)
• No Load Voltage: 85V (MMA), 85V (MIG)
• Efficeincy: 0.8
• Specifications for Water Cooler:
• Supply: 230V - 50Hz
• Power: 370W
• Coolant: Distilled Water
• Max Pressure: 3kg/cm²
• Feed Rate: 8L/min
• Tank Capacity: 6L
• Weight: 15kg
• IP Rating: IP21S
• Note* In freezing conditions add antifreeze to the coolant.

What is included:

• 1x Sealey POWERMIG500Wi 500A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder with Portable Wire Feeder & Water Cooler 400V 3ph
