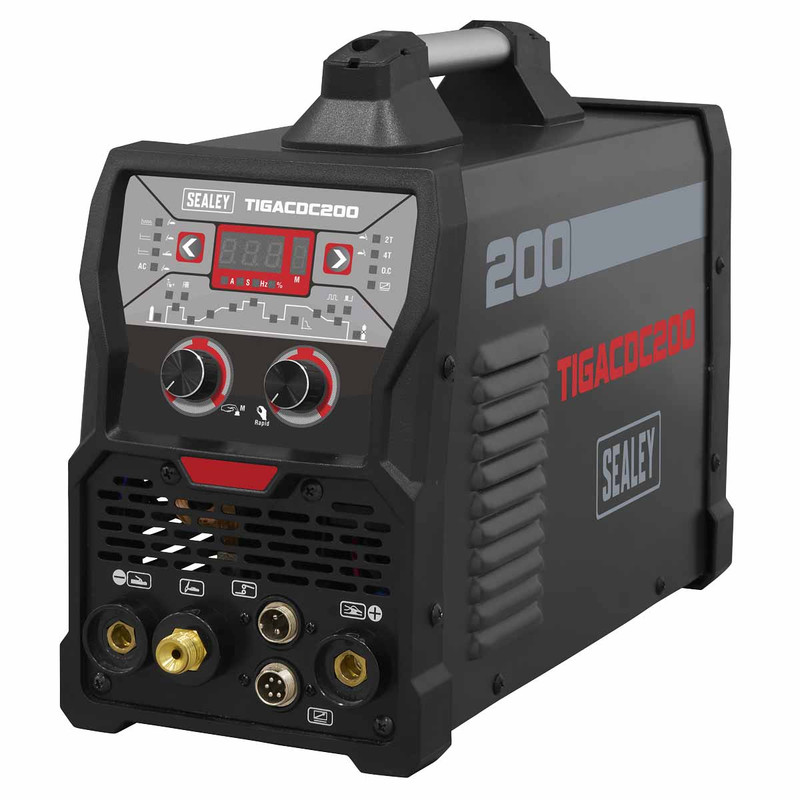

Sealey TIGACDC200 200A TIG/MMA AC/DC Pulse Inverter Welder 230V

IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A. Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium. 20-Stage parameter adjustment program to suit welder's requirements. Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician. Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption. Suitable for MMA/ARC welding using the lift start method for better weld quality. Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal for when greater control is required.

TIGACDC200 Features:

• Igbt inverter technology - igbt inverter technology fitted with fan-cooled ac/dc power supply suitable for both tig and mma/arc welding applications up to 200a.
• suitable for welding a vartiety of metals - suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium.
• multi-stage inverter - 20-stage parameter adjustment program to suit welder's requirements.
• lightweight and portable – weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician.
• featuring – features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
• lift start - suitable for mma/arc welding using the lift start method for better weld quality.
• accessories supplied - supplied with earth clamp, tig torch and accessories, electrode holder and foot pedal.

TIGACDC200 Specification:

• Model No TIGACDC200
• Brand: Sealey
• Nett Weight: 8.5kg
• Power Output: 10-200A
• Duty Cycle: AC - 100% @ 110A, 60% @ 141A, 30% @ 200A DC - 100% @ 93A, 60% @ 120A, 30% @170A
• Electrode Capacity: Ø1.6-4mm
• Absorbed Power: 5.4KW
• Supply: 230V*
• Insulation Class: F
• Protection: IP21S
• Note: *to achieve maxiumum power a 32A supply may be required.

What is included:

• 1x Sealey TIGACDC200 200A TIG/MMA AC/DC Pulse Inverter Welder 230V
