Product Description

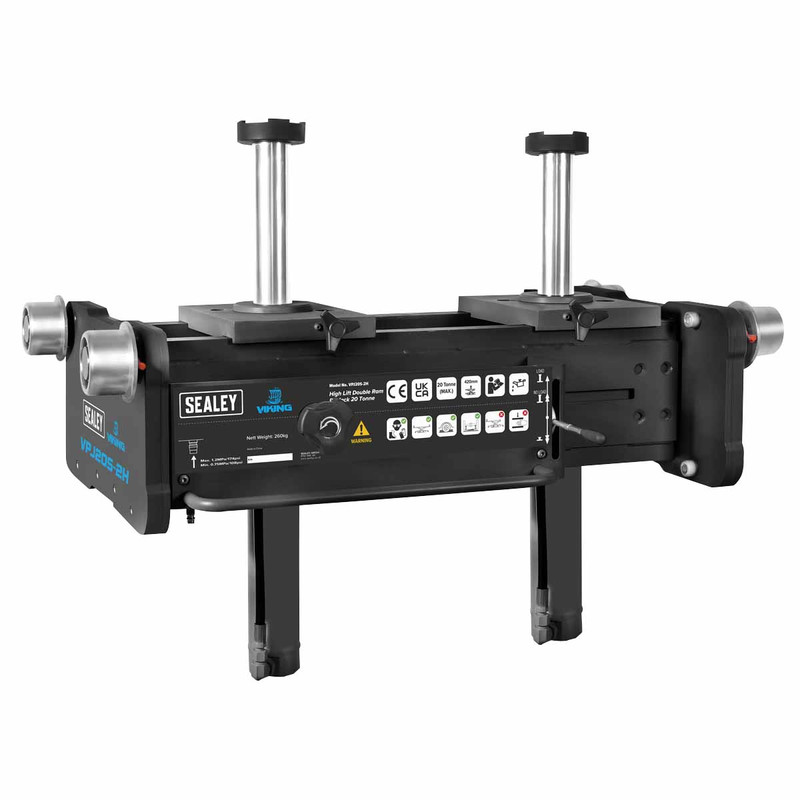

Sealey VPJ20S-2H Viking Pit Jack 20 Tonne High Lift Double Ram

Fitted with leaf spring support bearings for easy glide transversing the ram. Full 420mm lifting stroke for high axled vehicles. Shut off valves allow twin or single ram lifts. Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles. Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift. Fitted with deadman controls and a limited descent control valve. Manufactured to suit pit widths between 680-960mm. Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.

VPJ20S-2H Features:

• Easy glide - fitted with leaf spring support bearings for easy glide transversing the ram.
• high lift - full 420mm lifting stroke for high axled vehicles.
• independent ram lift - shut off valves allow twin or single ram lifts.
• pneumatic control - air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• quick lift - rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.
• safe descent - fitted with deadman controls and a limited descent control valve.
• adjustable fit - manufactured to suit pit widths between 680-960mm.
• convenience - large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
• 3 year guarantee*.

VPJ20S-2H Specification:

• Model No VPJ20S-2H
• Beam Lift: 420mm
• Brand: Viking
• Capacity: 20 Tonne
• Load Arm Reach: N/A
• Nett Weight: 260kg
• Optional Accessories: VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2HSS - Integrated Safety Stand.
• Support Arm Reach: N/A

What is included:

• 1x Sealey VPJ20S-2H Viking Pit Jack 20 Tonne High Lift Double Ram
