Product Description

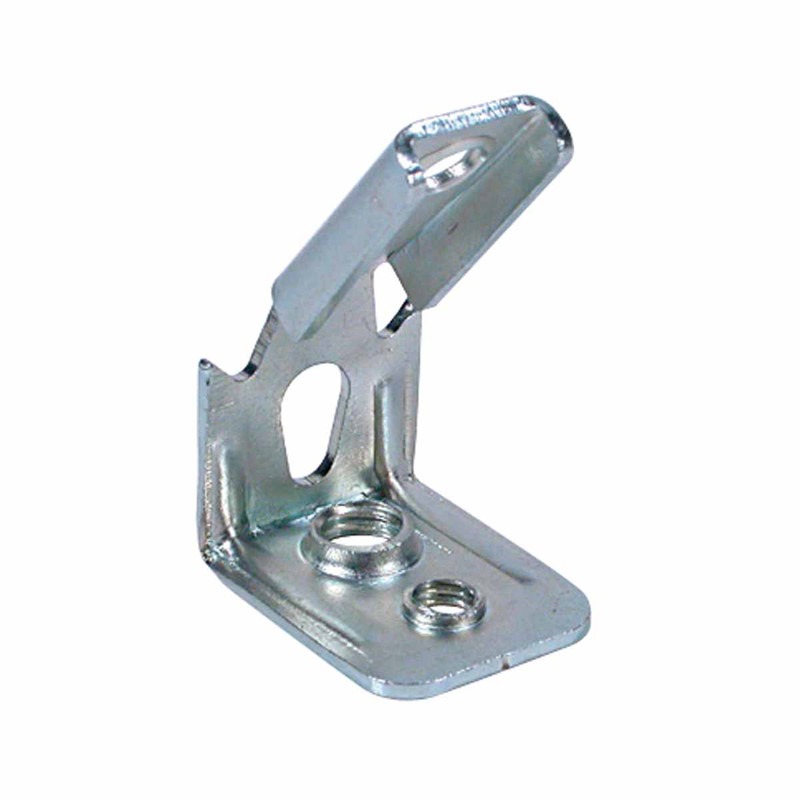

Spit 011430 Threaded Rod Hanger M6-M8 (100 Pack)
The Spit 011430 Threaded Rod Hanger M6-M8 (100 Pack) is a heavy-duty metal clip designed for suspending threaded rod, chains and suspension cables from steel or concrete substrates. Used within the Spit Pulsa fixing system, it offers a compact, reliable solution for supporting building services such as pipework, cable trays and ducting in commercial and industrial environments. The TRH-CLIP design features a slide-on channel and lateral insertion, enabling quick, safe installation onto suitable pins with minimal disruption on site. Manufactured from 1.5 mm E24 steel with reinforcing ribs, it provides robust support for static applications, while dual M6/M8 threaded holes increase flexibility and reduce the number of different clips required. An electro zinc coating of 7-15 µm helps protect against corrosion in typical indoor conditions. This product is suitable for use with Spit P800E tools and recommended HC6 and C6 pins, and is supplied as a box of 100 clips for efficient stocking and repeat use.
11430 Features:
- Spit 011430 Threaded Rod Hanger M6-M8 (100 Pack) provides a fast, secure way to suspend threaded rod, chains or cables from steel and concrete structures
- Slide-on channel with lateral insertion allows quick positioning of the clip on the pin for efficient installation in tight spaces
- Thick E24 steel construction with reinforcing ribs delivers robust support for static applications
- Dual M6 and M8 threaded holes maximise flexibility, reducing the need for multiple clip types on site
- Electro zinc coating 7-15 µm helps protect the metal clip against corrosion in typical indoor environments
- Compatible with Spit Pulsa P800E tools and HC6 and C6 pin ranges for reliable fixing into steel and concrete
- Designed for static loads with recommended load data provided to support safe, compliant installations
- Suitable for suspending threaded rod up to 600 mm in length for services such as pipework, cable trays and ducting
- Optional installation with 6 mm drill and anchor offers an alternative fixing method where direct fastening is not possible
- Supplied in a 100 pack to support larger projects and repeat installations across commercial and industrial sites
Specification
| top_feature: | Spit 011430 Threaded Rod Hanger M6-M8 (100 Pack) provides a fast, secure way to suspend threaded rod, chains or cables from steel and concrete structures |
| top_feature: | Slide-on channel with lateral insertion allows quick positioning of the clip on the pin for efficient installation in tight spaces |
| top_feature: | Thick E24 steel construction with reinforcing ribs delivers robust support for static applications |
| top_feature: | Dual M6 and M8 threaded holes maximise flexibility, reducing the need for multiple clip types on site |
| top_feature: | Electro zinc coating 7-15 µm helps protect the metal clip against corrosion in typical indoor environments |
| top_feature: | Compatible with Spit Pulsa P800E tools and HC6 and C6 pin ranges for reliable fixing into steel and concrete |
| top_feature: | Designed for static loads with recommended load data provided to support safe, compliant installations |
| top_feature: | Suitable for suspending threaded rod up to 600 mm in length for services such as pipework, cable trays and ducting |
| FQQ: | What is the Spit 011430 Threaded Rod Hanger used for? |
| FAA: | It is a metal clip designed to suspend threaded rod (M6/M8), chains or suspension cables from steel or concrete surfaces. |
| FQQ: | What size threaded rod is compatible with the Spit 011430 hanger? |
| FAA: | The clip is suitable for use with both M6 and M8 threaded rod, giving flexibility on site. |
| FQQ: | How many clips are included in the Spit 011430 Threaded Rod Hanger pack? |
| FAA: | Each pack contains 100 threaded rod hanger clips. |
| FQQ: | From what material is the Spit 011430 Threaded Rod Hanger made? |
| FAA: | The hanger is manufactured from thick steel with reinforcing ribs for extra strength and rigidity. |
| FQQ: | Does the Spit 011430 Threaded Rod Hanger have any corrosion protection? |
| FAA: | Yes, it has an electro zinc or electrolytic galvanised coating that protects the clip against corrosion. |
| FQQ: | What are the main applications for the Spit 011430 Threaded Rod Hanger? |
| FAA: | It is intended for the installation of suspended light duty or lowered, lightweight components such as cable management and similar services. |
| FQQ: | Is the Spit 011430 Threaded Rod Hanger an alternative to traditional anchors? |
| FAA: | Yes, it is described as an ideal alternative to traditional drop-in or impact anchors for suspending fixings. |
| FQQ: | How is the Spit 011430 Threaded Rod Hanger installed? |
| FAA: | The clip features a slide-on channel for pin guidance with lateral insertion for fast, safe installation, and it can also be installed using an optional drill and 6mm anchor. |
| FQQ: | What tools or fasteners can be used with the Spit 011430 Threaded Rod Hanger? |
| FAA: | The hanger can be fixed using Spit Pulsa nail guns such as the Pulsa 700E and 800E, and can be fastened with C6 or SC6 nails. |
| FQQ: | On which base materials can the Spit 011430 Threaded Rod Hanger be used? |
| FAA: | It is suitable for use on non-cracked concrete and steel substrates. |
| Product name: | Spit 011430 Threaded Rod Hanger M6-M8 (100 Pack) |
| Type: | Threaded rod hanger metal clip |
| Model code: | 011430 |
| Item number: | 07700720 |
| Stock code: | 20320 |
| Thread size compatibility: | M6, M8 |
| Maximum rod length: | 600 mm |
| Material: | Steel E24 |
| Material thickness: | 1.5 mm |
| Coating: | Electro zinc, 7-15 µm |
| Application type: | Static applications only |
| Tool compatibility: | Spit Pulsa P800E |
| Recommended pins for steel: | HC6-15 |
| Recommended pins for concrete C50/60 and prestressed concrete: | HC6-15, HC6-17, HC6-22 |
| Recommended pins for concrete up to C30/37: | C6-20, C6-25 |
| Pack quantity: | 100 clips |
| Pipe conduit size: | M6-M8 |
| Recommended load HC6-15: | 1.5 kN |
| Characteristic resistance HC6-15: | 5.0 kN |
| TRH-CLIP displacement at recommended load HC6-15: | 9.5 mm |
| Recommended load HC6 range ? C20/25 Hnom ? 15 mm: | 0.10 kN |
| TRH-CLIP displacement at recommended load HC6 range ? C20/25 Hnom ? 15 mm: | 0.4 mm |
| Fire test report number: | 05-158/A (CSTB) |
| Characteristic resistance under fire exposure C20/25 Hnom: | 15 mm, 30 minutes=0.25 kN |
| Characteristic resistance under fire exposure C20/25 Hnom: | 15 mm, 60 minutes=0.13 kN |
| Characteristic resistance under fire exposure C20/25 Hnom: | 15 mm, 90 minutes=0.02 kN |
| Included: | 1x Spit 011430 Threaded Rod Hanger M6-M8 box (100 clips) |
