Spit 058661 Tapcon5 Xtrem Self Tapping Screws 40mm (100 Pack)

Description

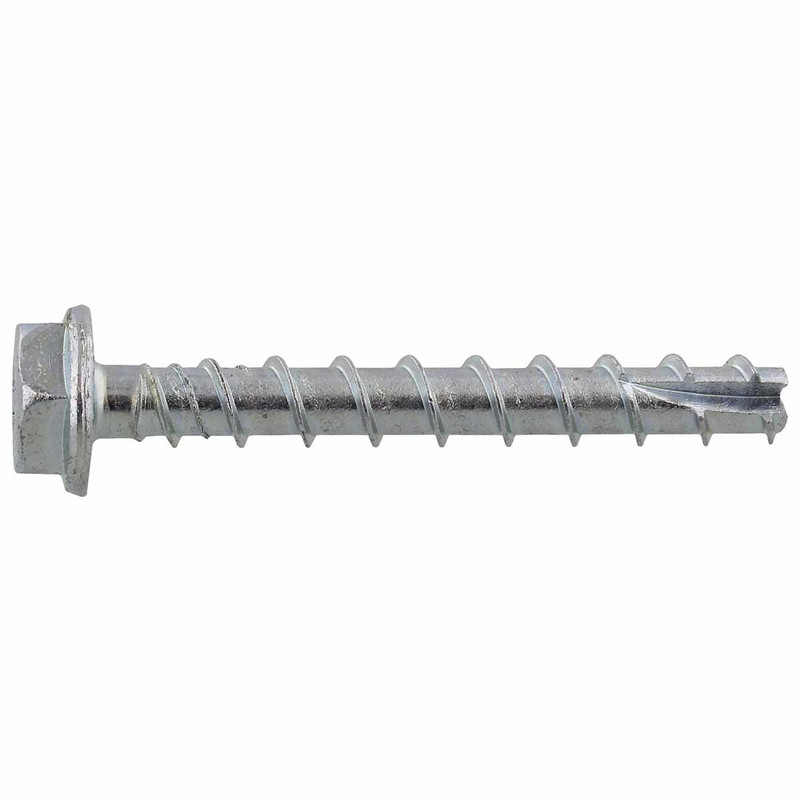

Spit 058661 Tapcon5 Xtrem Self Tapping Screws 40mm (100 Pack)

The Spit 058661 Tapcon5 Xtrem Self Tapping Screws are high-performance concrete screws designed for use in both cracked and non-cracked concrete. With ETA Option 1 approval and C1 seismic certification for Ø6, they are suitable for demanding structural and safety-critical applications.

Engineered for reliability and ease of installation, these screws feature anti-rotation grooves under the head to prevent overtightening, along with sharp notches at the tip for easier engagement in varying concrete qualities. The Torx-compatible hex head ensures secure installation, even in hard-to-reach areas, while the robust manufacturing process guarantees consistent performance.

058661 Features:

• ETA Option 1 approved for cracked and non-cracked concrete.
• C1 seismic approval for Ø6 applications.
• Fire approved for added safety.
• Anti-rotation grooves under the head reduce overtightening.
• Sharp tip notches for easier and faster engagement.
• Torx recess on hex head for versatile installation.
• Robust and fully integrated manufacturing process.

058661 Application:

• Cable trays.
• Hanging services from ceilings or walls.
• HVAC installations.
• Frame bottom rails.
• Cladding brackets.
• Window frames.
• Railings.
• Temporary fixings.
• Scaffolding.
• Safety barriers.
• Pallet racking.

058661 Specification:

• MPN: 058661
• Base Material: Cracked Concrete, Hollow Core Concrete Slab, Non-Cracked Concrete
• Drill Hole Diameter: 6.0 mm
• Anchor Length: 40 mm
• Recess Size: SW 13 + TX 30
• Min. Embedment Depth: 35.0 mm
• Max. Embedment Depth: 35 mm
• Max. Fixing Thickness: 5 mm
• Clearance Diameter: 8 mm
• Min. Drilling Depth: 40 mm
• Anchor Wrench Size: 13.0 mm
• Product Material: Carbon steel
• Coating: Zinc Coated
• Diameter Anchor: 6.0 mm
• Head Type: Hexagonal head
• Min. Thickness Base Material: 80 mm
• Min. Edge Distance: 35 mm
• Min. Fixing Distance: 35 mm
• Base Material Colour: Grey

What is included:

• 100x Spit 058661 Tapcon5 Xtrem Self Tapping Screws 40mm
