Product Description

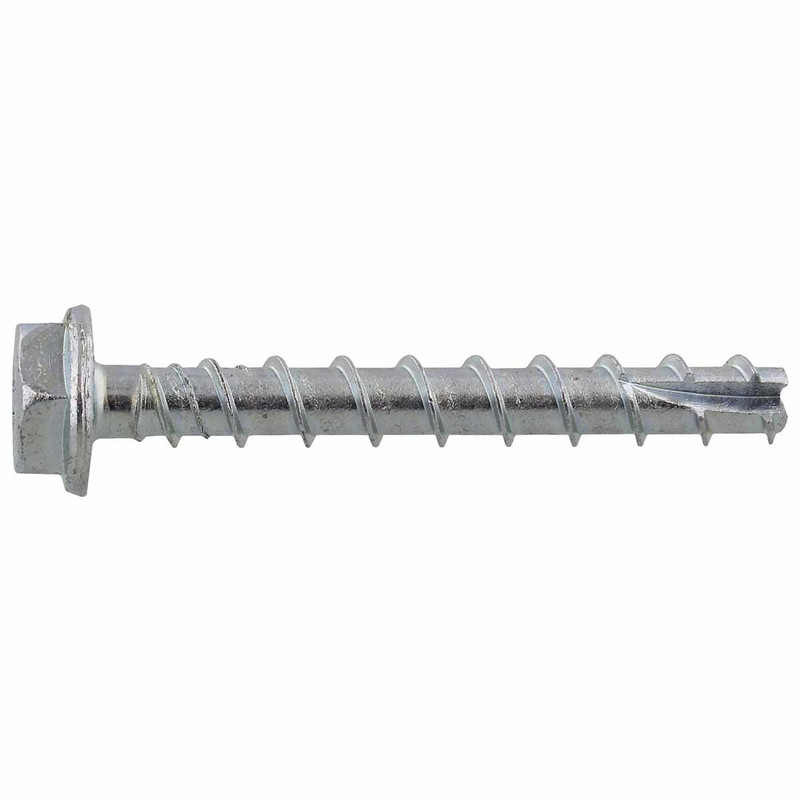

Spit 058664 Tapcon5 Xtrem Self Tapping Screw 60mm (100 Pack)

The Spit 058664 Tapcon5 Xtrem Self Tapping Screws are designed for high-performance anchoring in both cracked and non-cracked concrete. With ETA Option 1 and C1 seismic approval for Ø6, they provide reliable fixing in demanding applications.

Featuring anti-rotation grooves to prevent overtightening and sharp tip notches for easy engagement, these screws ensure consistent installation performance. The Torx-compatible hex head allows secure fixing even in confined or difficult areas.

058664 Features:

• ETA Option 1 approved for cracked and non-cracked concrete.
• C1 seismic approval for Ø6 applications.
• Fire approved.
• Anti-rotation grooves reduce overtightening.
• Sharp tip notches improve engagement.
• Torx-compatible hex head for versatility.

058664 Application:

• Cable trays.
• Hanging services from ceilings or walls.
• HVAC installations.
• Frame bottom rails.
• Cladding brackets.
• Window frames.
• Railings.
• Temporary fixings.
• Scaffolding.
• Safety barriers.
• Pallet racking.

058664 Specification:

• MPN: 058664
• Base Material: Cracked Concrete, Hollow Core Concrete Slab, Non-Cracked Concrete
• Drill Hole Diameter: 6.0 mm
• Anchor Length: 60 mm
• Recess Size: SW 13 + TX 30
• Min. Embedment Depth: 35.0 mm
• Max. Embedment Depth: 55 mm
• Max. Fixing Thickness: 25 mm
• Clearance Diameter: 8 mm
• Min. Drilling Depth: 40 mm
• Anchor Wrench Size: 13.0 mm
• Product Material: Carbon steel
• Coating: Zinc Coated
• Diameter Anchor: 6.0 mm
• Head Type: Hexagonal head
• Min. Thickness Base Material: 80 mm
• Min. Edge Distance: 35 mm
• Min. Fixing Distance: 35 mm
• Base Material Colour: Grey

What is included:

• 100x Spit 058664 Tapcon5 Xtrem Self Tapping Screw 60mm
