Product Description

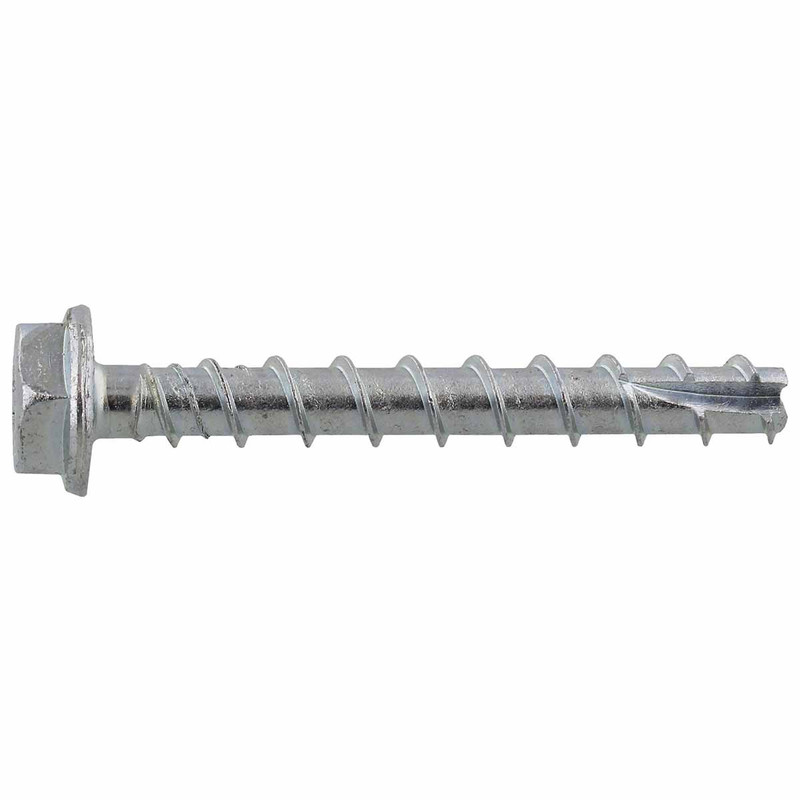

Spit 058665 Tapcon5 Xtrem Self Tapping Screw 80mm (100 Pack)

The Spit 058665 Tapcon5 Xtrem Self Tapping Screws are engineered for high-strength anchoring in concrete, suitable for both cracked and non-cracked substrates. With ETA Option 1 and seismic approval, they deliver dependable performance in structural applications.

The advanced design includes anti-rotation grooves and sharp engagement notches, ensuring consistent installation while reducing the risk of overtightening. Ideal for professional use across a wide range of fixing applications.

058665 Features:

• ETA Option 1 approved for concrete applications.
• C1 seismic and fire approved.
• Anti-rotation grooves prevent overtightening.
• Sharp tip notches for easy installation.
• Durable zinc coated finish.

058665 Application:

• Cable trays.
• Hanging services from ceilings or walls.
• HVAC installations.
• Frame bottom rails.
• Cladding brackets.
• Window frames.
• Railings.
• Temporary fixings.
• Scaffolding.
• Safety barriers.
• Pallet racking.

058665 Specification:

• MPN: 058665
• Base Material: Cracked Concrete, Hollow Core Concrete Slab, Non-Cracked Concrete
• Drill Hole Diameter: 6.0 mm
• Anchor Length: 80 mm
• Recess Size: SW 13 + TX 30
• Min. Embedment Depth: 35.0 mm
• Max. Embedment Depth: 55 mm
• Max. Fixing Thickness: 45 mm
• Clearance Diameter: 8 mm
• Min. Drilling Depth: 40 mm
• Anchor Wrench Size: 13.0 mm
• Product Material: Carbon steel
• Coating: Zinc Coated
• Diameter Anchor: 6.0 mm
• Head Type: Hexagonal head
• Base Material Colour: Grey

What is included:

• 100x Spit 058665 Tapcon5 Xtrem Self Tapping Screw 80mm (100 Pack)
