Product Description

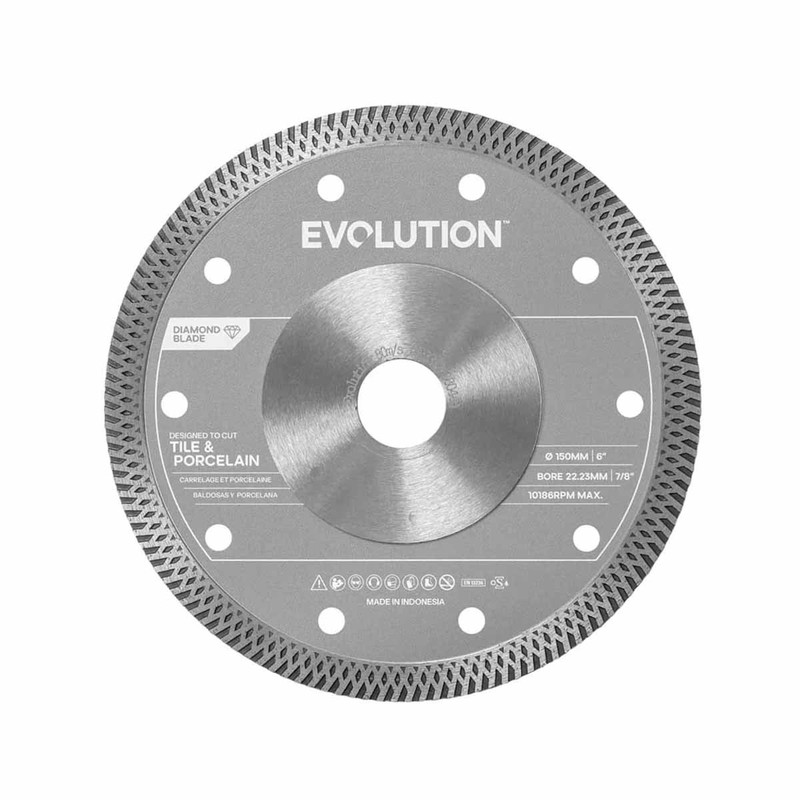

Evolution PCD150SEG-CS Porcelain & Tile Diamond Disc Cutter Blade 150mm x 22.2mm

The Evolution PCD150SEG-CS 150mm Porcelain & Tile Diamond Disc Cutter Blade is designed for fast, accurate cutting through hard porcelain paving slabs, ceramic tiles and natural stone. Featuring a specialist turbo mesh diamond rim, it delivers smooth, controlled cutting while helping reduce chipping and achieve cleaner finished edges.

Its reinforced stabiliser ring minimises blade flex and vibration for improved cutting accuracy, while the thin-kerf design reduces resistance and heat build-up. Featuring a 22.23mm bore, the blade is compatible with Evolution R150DCT disc cutters, including the R150DCT-PRO, making it ideal for professional tiling, landscaping and paving applications.

PCD150SEG-CS Features:

• Specialist diamond blade designed for cutting porcelain tiles and paving slabs
• 150mm blade diameter with 22.23mm bore
• Turbo mesh diamond rim provides fast, clean and controlled cutting
• Continuous cutting edge helps minimise chipping and material breakout
• Reinforced stabiliser ring reduces vibration and blade flex
• Thin-kerf design reduces cutting resistance and heat build-up
• Provides accurate, straight cuts through dense porcelain materials
• Suitable for porcelain, ceramic and natural stone tiles
• Maximum cutting depth of 40mm when used with Evolution R150DCT disc cutters
• Compatible with Evolution R150DCT and R150DCT-PRO disc cutters
• Optimised for use with the R150DCT-PRO dual-sided water supply
• Continuous water application recommended for porcelain cutting

PCD150SEG-CS Specification:

• Product Type: Porcelain & Tile Diamond Disc Cutter Blade
• Blade Diameter: 150mm
• Bore Diameter: 22.23mm
• Blade Type: Diamond
• Rim Type: Continuous Turbo Mesh
• Maximum Speed: 10,168rpm
• Blade Body Thickness: 1mm
• Reinforcing Ring Thickness: 3.3mm
• Cutting Segment Thickness: 1.6mm
• Cutting Segment Height: 10mm
• Maximum Cutting Depth: 40mm (Evolution R150DCT)
• Suitable Materials: Porcelain, Ceramic Tiles, Natural Stone Tiles
• Compatible Tools: Evolution R150DCT Range and Suitable 150mm Disc Cutters

What is included:

• 1x Evolution PCD150SEG-CS Porcelain & Tile Diamond Disc Cutter Blade 150mm x 22.2mm
