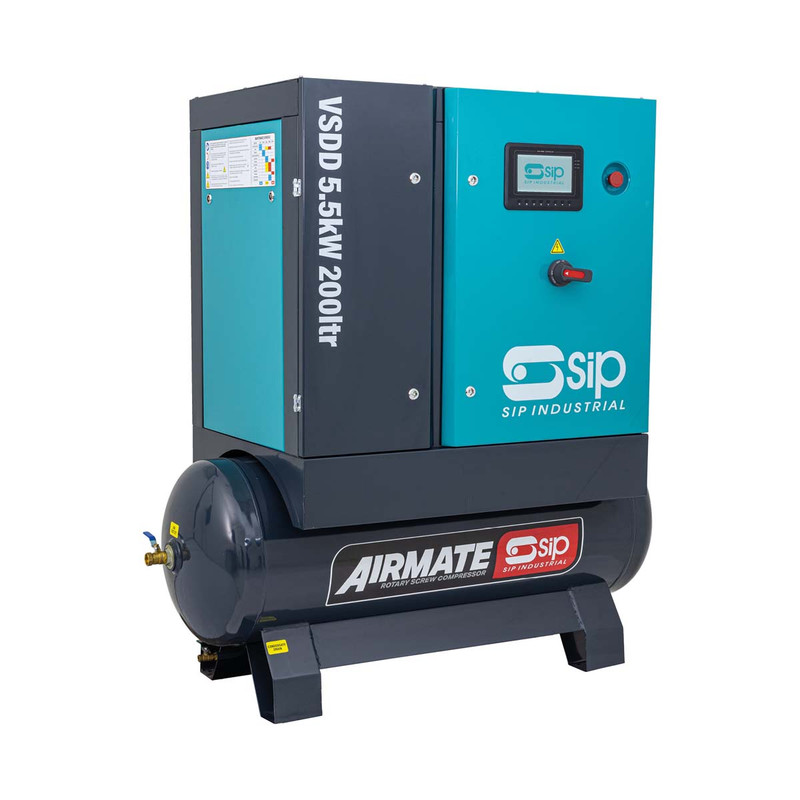

SIP 08258 VSDD 5.5kW 8bar 200ltr 400v Rotary Screw Compressor

The SIP VSDD 5.5kW 8bar 200ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use or where multiple operators require compressed air at one time. With a motor output of 5.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 200ltr receiver tank.

08258 Features:

• Direct drive transmission for improved power transfer
• Variable speed 5.5kW motor delivers even power distribution
• Heavy-duty silenced cabinet ensures reduced noise operation
• Colour touchscreen for real-time diagnostic information
• Easy access cabinet panel for maintenance and service
• All-in-one design minimises lost work area space

08258 Specifications:

• ITEM NO. 08258
• Input Supply 400v (32A)
• Rated Input: 7kW
• Motor Power: 5.5kW (7hp)
• IE4 Motor: Yes
• Max. Pressure: 116psi (8bar)
• Free Air Delivery (FAD): 25CFM (720ltr/min)
• Receiver Size: 200ltr
• Cooling Type: Fan Cooled
• Transmission Type: Direct Drive
• Start-Up Mode: Inverter Soft Start
• Refrigerated Dryer: N/A
• Outlet Connector: 3/4" BSPP
• Noise Level: 62dB(A)

What is Included:

• 1x SIP 08258 VSDD 5.5kW 8bar 200ltr 400v Rotary Screw Compressor
