Product Description

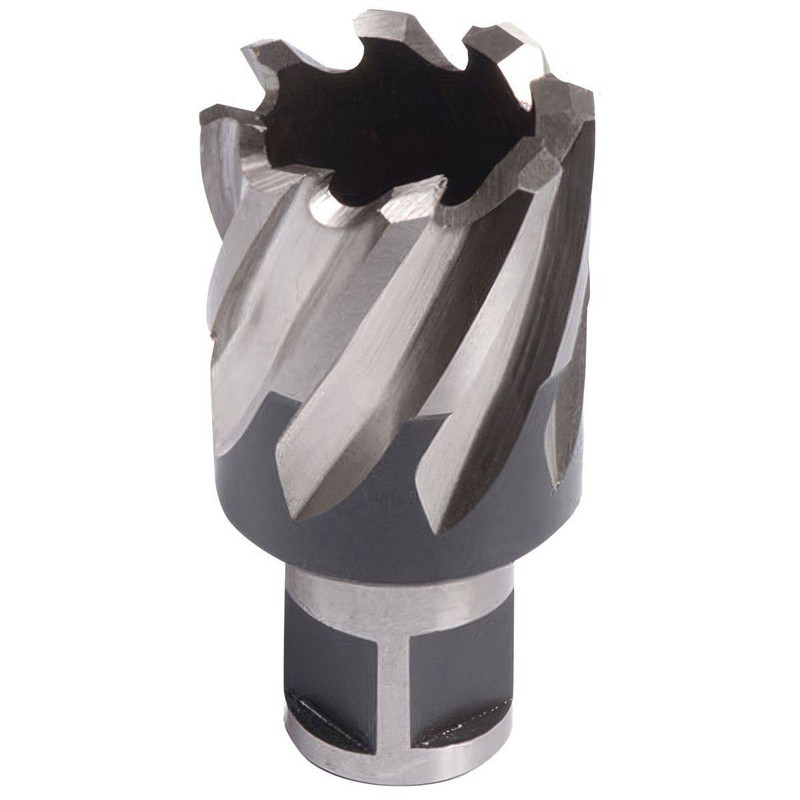

Evolution HT59S Short Broaching Cutter 59mm
The Evolution HT59S Short Broaching Cutter 59mm is a specialist hollow cutter designed for producing accurate circular holes in steel within metal fabrication, construction and maintenance environments. With a 59mm diameter and short pattern body, it is optimised for shallow hole production where access is limited or where a compact cutter is preferred. Manufactured from high-grade M-2 cutting tool steel, it delivers reliable performance in demanding conditions, while the carefully engineered spiral flute design enhances stability, chip evacuation and heat control during cutting. The cutters geometry is tailored to maximise material removal and help reduce wear, supporting consistent results over repeated use. A precise pin pilot fit ensures accurate centring without restricting coolant flow, helping to protect both the tool and workpiece. Featuring a Weldon shank connection, the Evolution HT59S Short Broaching Cutter 59mm is compatible with suitable magnetic drills and broaching systems using this standard interface.
HT59S Features:
- Evolution HT59S Short Broaching Cutter 59mm delivers precise circular cutting in steel for demanding fabrication and construction tasks
- 59mm diameter capacity allows the creation of large, accurate holes in structural and plate steel
- Short broaching cutter design with 25mm maximum cutting depth is optimised for shallow holes and tight access applications
- Manufactured from special M-2 cutting tool steel for consistent performance in tough materials
- Refined spiral flute design improves stability and chip evacuation to help reduce heat build-up during cutting
- Optimised cutting geometry maximises material removal while helping to minimise tool wear
- Accurate pin pilot fit supports reliable centring without obstructing coolant flow through the cutter
- Weldon shank connection provides secure, precise mounting to compatible magnetic drills and broaching systems
- Ideal for professional metalworking, fabrication and maintenance jobs where repeatable, high-quality holes are required
- Part of Evolutions broaching cutter range, offering compatibility with a wide range of steelworking setups
Warranty Information
1 Month GuaranteeSpecification
| brand-name-xt: | https://cdn11.bigcommerce.com/s-hczpll0y/images/stencil/original/image-manager/evolution-brandlogo-8.png?t=1773918846 |
| brand-link-xt: | https://www.toolden.co.uk/tool-brands/evolution/ |
| Country of Origin: | United Kingdom |
| top_feature: | Evolution HT59S Short Broaching Cutter 59mm delivers precise circular cutting in steel for demanding fabrication and construction tasks |
| top_feature: | 59mm diameter capacity allows the creation of large, accurate holes in structural and plate steel |
| top_feature: | Short broaching cutter design with 25mm maximum cutting depth is optimised for shallow holes and tight access applications |
| top_feature: | Manufactured from special M-2 cutting tool steel for consistent performance in tough materials |
| top_feature: | Refined spiral flute design improves stability and chip evacuation to help reduce heat build-up during cutting |
| top_feature: | Optimised cutting geometry maximises material removal while helping to minimise tool wear |
| top_feature: | Accurate pin pilot fit supports reliable centring without obstructing coolant flow through the cutter |
| top_feature: | Weldon shank connection provides secure, precise mounting to compatible magnetic drills and broaching systems |
| top_feature: | Ideal for professional metalworking, fabrication and maintenance jobs where repeatable, high-quality holes are required |
| top_feature: | Part of Evolutions broaching cutter range, offering compatibility with a wide range of steelworking setups |
| Included: | 1 x Evolution HT59S Short Broaching Cutter 59mm |
| Product name: | Evolution HT59S Short Broaching Cutter 59mm |
| Brand: | Evolution |
| Model code: | HT59S |
| Tool type: | Short broaching cutter |
| Diameter: | 59mm |
| Maximum cutting depth: | 25mm |
| Material: | M-2 cutting tool steel |
| Shank type: | Weldon |
| FQQ: | What size is the Evolution HT59S Short Broaching Cutter? |
| FAA: | It is 59mm in diameter with a short series cutting depth of 25mm. |
| FQQ: | What material is the HT59S manufactured from? |
| FAA: | It is made from fully ground M2 high?speed steel for durability. |
| FQQ: | Is this cutter suitable for magnetic drills? |
| FAA: | Yes, Evolution short broaching cutters are suitable for use in magnetic drills and are designed to fit most makes. |
| FQQ: | Does the HT59S have a universal fitting? |
| FAA: | Yes, it is described as having a universal fitting for magnetic drills. |
| FQQ: | Where is the Evolution short broaching cutter made? |
| FAA: | Listings state that it is made in Britain. |
| FQQ: | What are the advantages over standard annular cutting bits? |
| FAA: | The M2 steel construction helps it last longer and cut more holes, offering better economy, quality and performance. |
| FQQ: | What series lengths are available in the Evolution broaching cutter range? |
| FAA: | Short cutters are 25.4mm deep and long cutters are 50mm deep. |
| FQQ: | Is there a long series version of the 59mm cutter? |
| FAA: | Yes, a 59mm long series version with a 50mm cutting depth is available. |
| FQQ: | What size range is available in the Evolution broaching cutter range? |
| FAA: | The range covers diameters from 12mm to 65mm, including short and long options. |
| FQQ: | Are short broaching cutter kits available? |
| FAA: | Yes, Evolution offers short (25mm) broaching cutter kits in assorted diameters, supplied with a pilot pin and suitable for magnetic drills. |
