Product Description

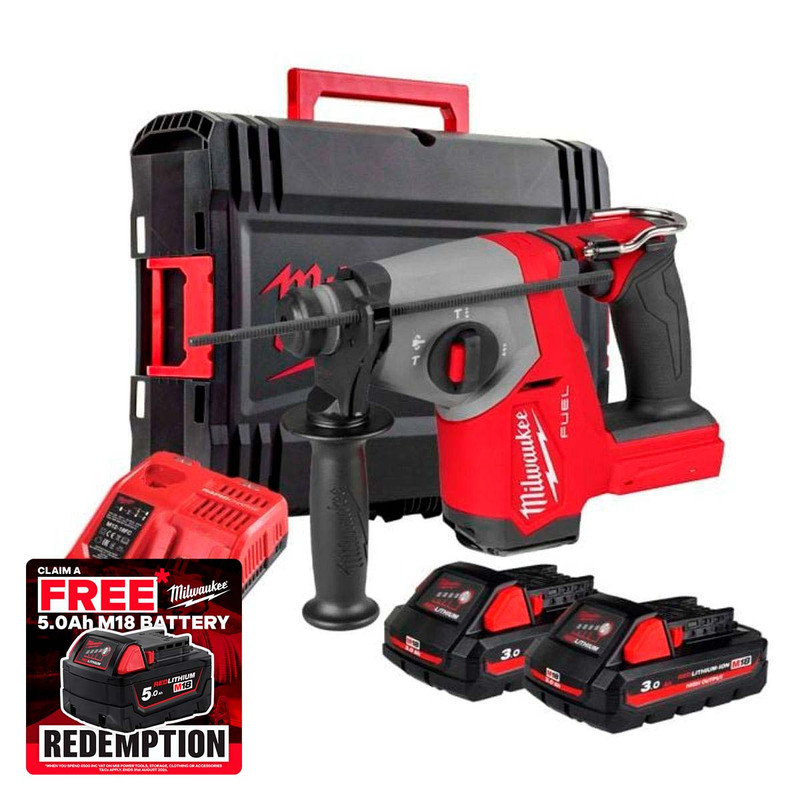

Milwaukee M18 FHAC16-302X SDS+ High Performance 4-Mode 16mm Hammer Drill with 2x 3.0Ah Batteries, Charger and Case

The Milwaukee M18 FHAC16-302X SDS+ High Performance 4-Mode 16mm Hammer Drill with 2x 3.0Ah Batteries, Charger and Case is a compact, cordless rotary hammer designed for fast drilling and light chiselling in concrete and masonry. Built on the M18 FUEL™ platform, it combines a POWERSTATE™ brushless motor, REDLINK PLUS™ intelligence and HIGH OUTPUT™ 3.0Ah batteries to deliver 1.7 J of impact energy and class-leading drilling speed, while remaining lightweight and easy to handle overhead or in tight spaces. The 4-mode selector offers rotary hammer, hammer only, rotation only and variolock chisel positions, giving electricians, plumbers and general builders the flexibility they need for anchor fixing, conduit runs and small breaking tasks. An AUTOSTOP™ function and electronic clutch help manage kickback, and the integrated anti-vibration system with AVS side handle reduces fatigue during extended use. Supplied with two M18™ HIGH OUTPUT™ 3.0Ah batteries, M12-18 FC fast charger, side handle, depth gauge, grease and HD carry case, it is fully compatible with the Milwaukee M18™ battery system.

M18 FHAC16-302X Features:

• Compact 16 mm SDS+ rotary hammer design maximises manoeuvrability and comfort when drilling in concrete and masonry.
• POWERSTATE™ brushless motor delivers 1.7 J of impact energy for fast, efficient drilling and chiselling in tough materials.
• 4-mode operation (rotary hammer, hammer only, rotation only and variolock chisel position) provides versatile performance across fixing and light breaking tasks.
• AUTOSTOP™ safety function shuts down the Milwaukee M18 FHAC16-302X in bind-up situations to help protect the user from sudden kickback.
• Anti-vibration system (AVS) and anti-vibration side handle reduce vibration exposure, supporting more comfortable use over extended periods.
• High percussion rate up to 5080 bpm and no-load speed up to 1400 rpm optimise drilling speed in concrete up to 16 mm diameter.
• Flexible M18™ HIGH OUTPUT™ 3.0 Ah battery system offers excellent runtime, drilling up to 58 holes Ø10 x 50 mm per charge.
• Electronic clutch and overload protection help safeguard the gearbox and electronics during demanding site applications.
• All-metal gearbox and robust SDS+ chuck ensure durable bit retention for professional trade use.
• Supplied with 2 x 3.0 Ah REDLITHIUM™ HIGH OUTPUT™ batteries, fast charger, side handle, depth gauge, grease and HD carry case for organised transport and storage.

M18 FHAC16-302X Specification:

• Brand: Milwaukee
• Model number: M18 FHAC16-302X
• System: M18™ FUEL™ cordless SDS-Plus rotary hammer
• Voltage: 18 V
• Battery chemistry: Li-Ion REDLITHIUM™ HIGH OUTPUT™
• Battery capacity: 3.0 Ah
• Number of batteries supplied: 2
• Impact energy (EPTA): 1.7 J
• Max drilling capacity in concrete: 16 mm
• Optimised drilling capacity in concrete: 5 – 12 mm
• No-load speed: 0 – 1400 rpm
• Max percussion rate: 5080 bpm
• Drilling modes: Rotary hammer, hammer only, rotation only, variolock chisel position
• Chuck type: SDS+
• Tool weight with battery: 2.6 kg
• Vibration level drilling: 13.6 m/s²
• Handle type: Rubber overmould grip with AVS side handle
• Overload protection: Current and thermal overload protection
• Supplied in: HD box carry case

What is included:

• 1x Milwaukee M18 FHAC16 18V FUEL 16mm SDS+ Hammer Drill
• 1x Side handle
• 1x Depth gauge
• 1x Tube of grease
• 2x M18 HB3 HIGH OUTPUT 3.0Ah REDLITHIUM™ batteries
• 1x M12-18 FC fast charger
• 1x HD box carry case
