Description

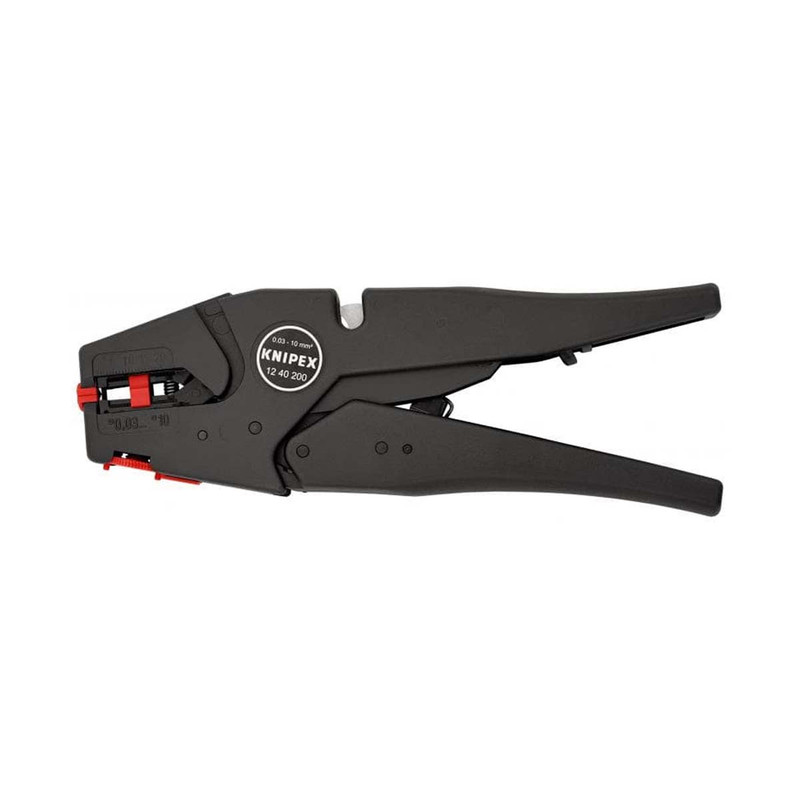

Knipex 12 40 200 Self-Adjusting Insulation Stripper 0.03-10mm
Knipex Self-Adjusting Insulation Stripper used for single, multiple and fine stranded conductors with plastic or rubber insulating. Adapts automatically to the respective cable cross-section, preventing damage to the conductor. The cutting depth can be adjusted for different insulation materials.
Use the wire cutter for copper and aluminium wires, multiple stranded up to 10.0 mm2 and single stranded up to 6.0 mm2. Features a smooth operating mechanism, with stripping blades and clamping jaws that are easily replaceable.
The body is made from reinforced plastic fibreglass so it is lightweight. The blade is made from special tool steel that is oil-hardened. For thin ribbon cables up to 13/32 inches width in a single pass.
12 40 200 Features:
- For thin ribbon cables up to 10.0 mm width in a single pass
- For single, multiple and fine stranded conductors with plastic or rubber insulation
- Adapts automatically to the respective cable cross-section; prevents damage to the conductor
- Cutting depth can be adjusted for different insulation materials
- With wire cutter for copper and aluminium wires, multiple stranded up to 10 mm² and single stranded up to 6 mm²
- Smoothly operating mechanism
- Stripping blades and clamping jaws easily replaceable
- Low weight
- Body: glass fibre reinforced plastic
- Blade: special tool steel, oil-hardened
12 40 200 Specification:
- Weight: 202 g
- Dimensions: 200 x 95 x 21 mm
- REACH compliant: contains SVHC
- RoHS compliant: not applicable
- Stripping capacities in square millimetres: 0.03 — 10.0 mm²
- Length stop: 3 – 18 mm
- AWG: 32 — 8
What is included:
- 1x 12 40 200 Self-Adjusting Insulation Stripper 0.03-10mm
