Description

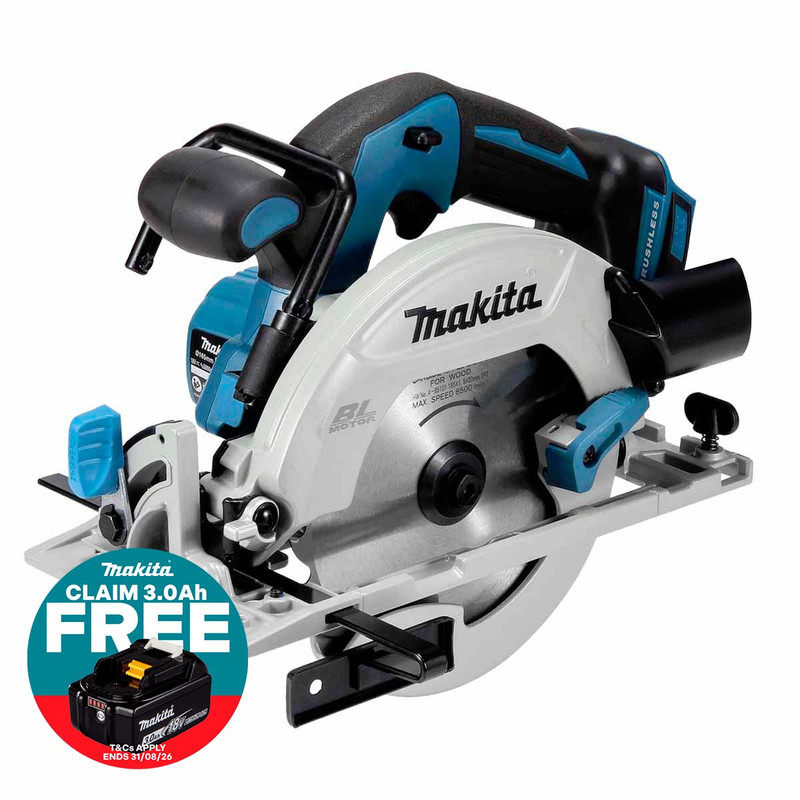

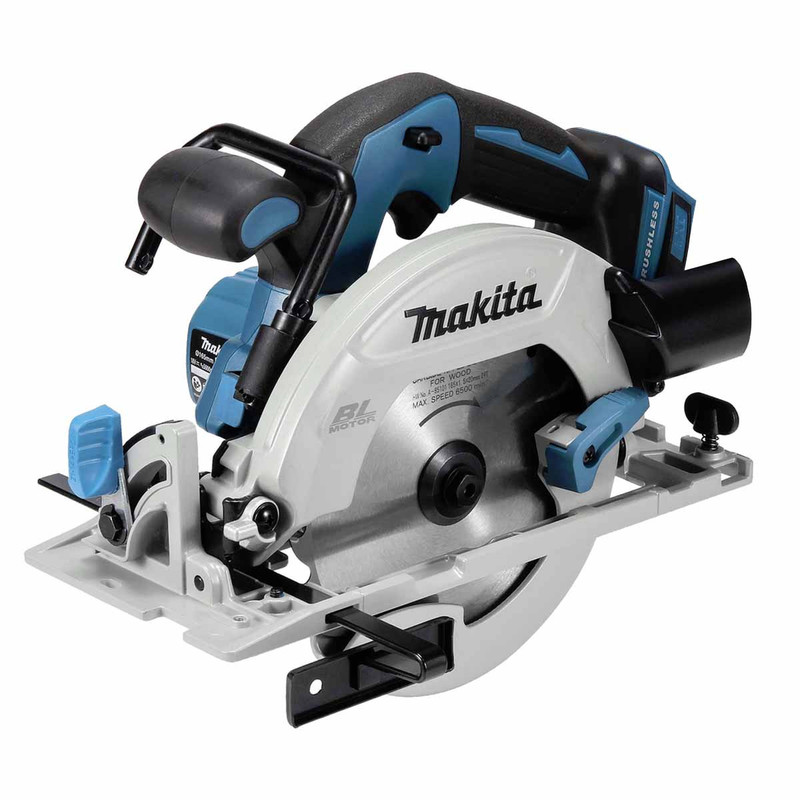

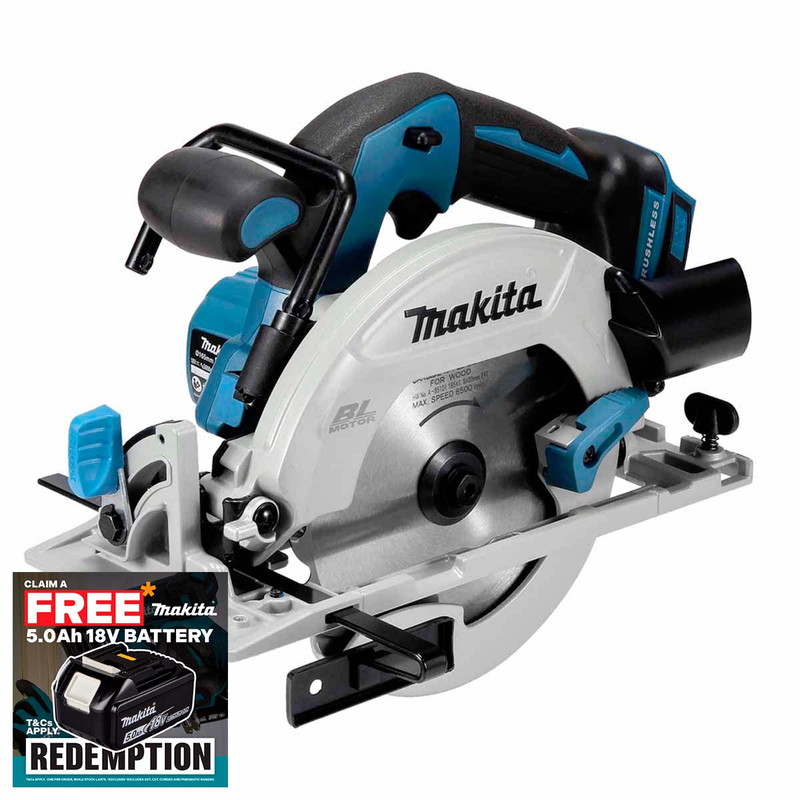

Makita DHS680Z LXT 18V Brushless 165mm Circular Saw (Body Only)
The Makita DHS680Z LXT 18V Brushless 165mm Circular Saw (Body Only) is a professional cordless power tool designed for fast, accurate cutting in timber and sheet materials on site and in the workshop. As part of the Makita 18V LXT cordless power tools range, it offers the freedom to work away from mains power while maintaining the performance expected from a trade-rated circular saw. A high?efficiency brushless motor delivers up to 5,000rpm no?load speed, while Automatic Speed Control adjusts torque and speed to suit the material and load, helping to maintain smooth, controlled cuts. The 165mm blade provides a maximum cutting depth of 57mm at 90 degrees and 41mm at 45 degrees, with bevel capacity up to 50 degrees for versatile framing and roofing work. Twin LED lights, a blower function and rear dust exhaust port improve visibility of the cutting line, and the compact, lightweight design with soft?grip handle supports comfortable all?day use. The Makita DHS680Z is supplied as a bare unit without batteries, charger or case, ready to integrate into an existing Makita 18V LXT kit.
DHS680Z Features:
- Brushless BL motor in the Makita DHS680Z LXT 18V Brushless 165mm Circular Saw delivers higher efficiency and reduced maintenance for demanding cutting tasks
- 18V LXT Li-ion cordless platform provides portable power across the Makita range, ideal for site work away from mains supply
- 165mm TCT saw blade with 20mm bore offers a generous 57mm maximum cutting depth at 90° for common construction timbers and sheet materials
- Automatic Speed Control / ADT adjusts cutting speed and torque according to load to optimise performance and cut quality
- Electric brake and soft start improve control and safety when starting and stopping cuts on the job
- Twin LED job lights, blower function and rear dust exhaust port help keep the cutting line clear and visible for accurate results
- Compact, lightweight design around 3.0–3.3kg with ergonomic soft-grip handle reduces fatigue during prolonged use
- Large base and bevel capacity up to 50° provide stable, precise cuts for framing, roofing and general carpentry applications
- Battery fuel gauge and battery protection system help monitor charge level and protect packs from over-discharge
- Supplied body only, allowing professionals to use existing Makita 18V LXT batteries and chargers to maximise system value
DHS680Z Specification:
- Brand: Makita
- Model: DHS680Z
- Product type: Cordless circular saw
- Battery platform: 18V LXT Li-ion
- Voltage: 18V
- Battery chemistry: Li-ion
- Battery technology: LXT
- Power supply: Cordless
- Brushless motor: Yes
- Blade diameter: 165mm
- Bore diameter: 20mm
- Max cutting depth at 90°: 57mm
- Max cutting depth at 45°: 41mm
- Max cutting depth at 50°: 37mm
- Max bevel range: 0–50°
- No load speed: 5,000rpm
- Maximum output power: 680W
- Noise sound pressure level: 83dB(A)
- Noise sound power level: 94dB(A)
- Noise uncertainty K factor: 3dB(A)
- Vibration cutting wood: 2.5m/s²
- Vibration K factor: 1.5m/s²
- Tool weight without battery: 3.0kg
- Tool weight with battery: 3.0–3.3kg
- Dimensions (L x W x H): 350 x 170 x 238mm
- Blade type supplied: 24-tooth TCT saw blade
- Dust extraction: Rear dust exhaust port with removable dust nozzle
- Electronic brake: Yes
- Soft start: Yes
- Electronic current limiter: Yes
- Automatic Speed Control / ADT: Yes
- LED job light: Twin LED lights
- Battery fuel gauge: Yes
- Guide rail compatibility: Yes, with guide rail adaptor
- Buying option: Body only
What is included:
- 1x Makita DHS680Z 18V LXT Brushless 165mm Circular Saw body
- 1x 165mm 24-tooth TCT saw blade
- 1x Parallel guide / guide rule
- 1x Hex wrench
- 1x Dust nozzle / dust extraction port
