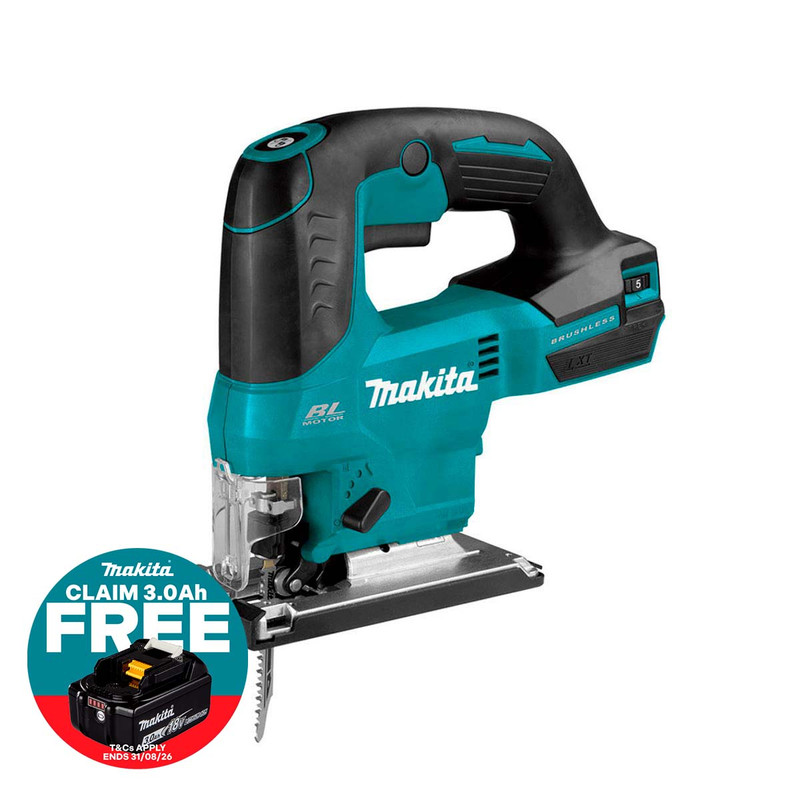

Makita DJV184Z LXT 18V Brushless Top Handle Jigsaw (Body Only)

Description

Makita DJV184Z LXT 18V Brushless Top Handle Jigsaw (Body Only)

The Makita DJV184Z LXT 18V Brushless Top Handle Jigsaw (Body Only) is a cordless power tool designed for fast, accurate cutting in wood, metal and plastics on site or in the workshop. As part of the Makita 18V LXT cordless power tools range, it combines a compact top handle layout with a brushless motor to deliver strong cutting performance while keeping weight and vibration low. Three orbital settings plus straight cutting allow you to balance speed and finish, while variable speed control up to 3,000 strokes per minute supports precise work on curves, notches and detailed cuts. Soft start, electric brake and anti-restart functions improve control and safety, and the integrated LED light and forced dust collection help keep the cutting line visible. The die-cast aluminium base plate bevels up to 45 degrees left and right for mitre and scribe cuts. The Makita DJV184Z is supplied as a body only jigsaw and typically includes a hex wrench and cover plate, ready to pair with your existing Makita 18V LXT Li-Ion batteries.

DJV184Z Features:

• Makita DJV184Z LXT 18V Brushless Top Handle Jigsaw delivers high cutting performance for demanding trade applications
• Brushless motor design improves efficiency and durability, helping to maximise runtime from Makita 18V LXT batteries
• Three-stage orbital action plus straight cutting mode allows you to optimise cut speed and finish across wood, metal and plastics
• Tool-less blade clamp enables fast, one-handed blade changes to keep work flowing on site
• Variable speed control up to 3,000 strokes per minute provides precise control when cutting curves, notches and detailed shapes
• Soft start and "soft no load" functions reduce start-up kick and vibration, improving accuracy and comfort
• Integrated LED work light and dust collection port help maintain a clear view of the cutting line in typical power tool conditions
• Compact, lightweight top handle design offers excellent manoeuvrability when working on sheet materials and fitted components
• Die-cast aluminium base plate bevels up to 45° left and right for accurate mitre and scribe cuts
• Electric brake and anti-restart function enhance user safety when working around other cordless power tools

DJV184Z Specification:

• Product name: Makita DJV184Z LXT 18V Brushless Top Handle Jigsaw (Body Only)
• Brand: Makita
• Voltage: 18V
• Battery platform: LXT 18V Li-Ion
• Motor type: Brushless
• Stroke length: 23mm
• Strokes per minute: 0–3,000spm
• Max cutting capacity in wood: 135mm
• Max cutting capacity in aluminium: 20mm
• Max cutting capacity in steel: 10mm
• Shank type: Universal
• Base plate material: Die-cast aluminium
• Bevel capacity: 0–45° left and right
• Noise sound pressure: 82dB(A)
• Noise sound power: 93dB(A)
• Noise K factor: 3dB(A)
• Vibration cutting chipboard: 7.4m/sec²
• Vibration cutting sheet metal: 5.1m/sec²
• Vibration K factor: 1.5m/sec²
• Net weight: 2.1–2.4kg
• Dimensions (L x W x H): 259 x 78 x 205mm
• Dust collection: Forced dust collection
• Work light: Double LED with standby light-up function
• Orbital settings: 3 orbital settings plus straight cutting
• Blade change: Tool-less blade clamp
• Electric brake: Yes
• Soft start: Yes
• Soft no load function: Yes
• Anti-restart function: Yes
• Lock-on function: Yes

What is included:

• 1x Makita DJV184Z 18V LXT Brushless Top Handle Jigsaw Body Only
• 1x Hex wrench
• 1x Cover plate
