Product Description

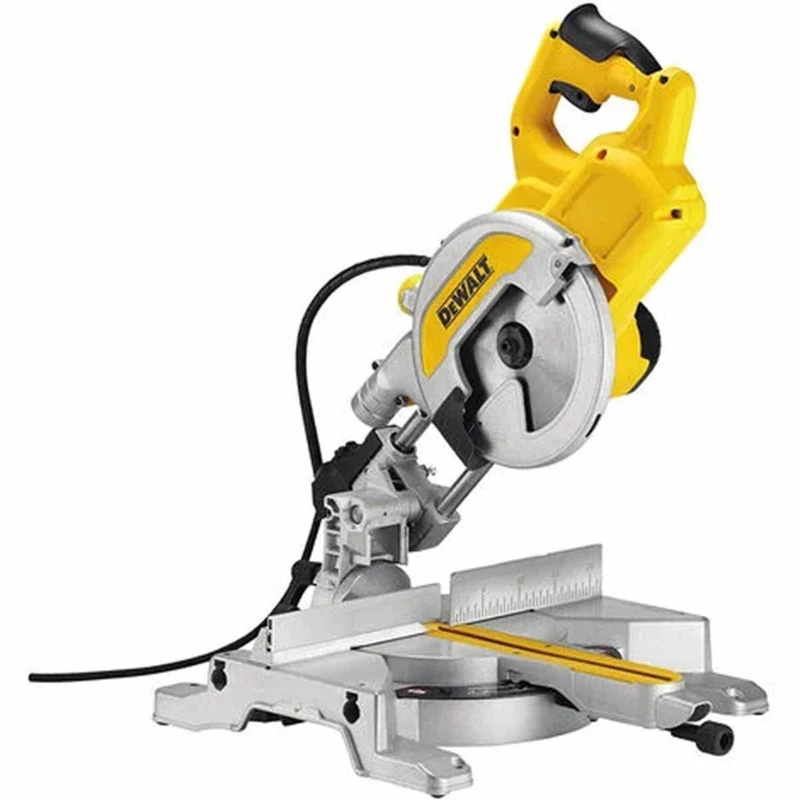

DeWalt DWS777-LX 216mm Sliding Compound Mitre Saw 1800W 110V

The DeWalt DWS777 216mm XPS Crosscut Mitre Saw is a hugely improved upgrade from the previous design. The dust port is compatible with DEWALT Airlock, and it includes XPS Shadow Line cut technology for precise alignment. It features a classic pull-and-tilt design. This saw is more precise and robust thanks to redesigned fence and base that adhere to modern standards. With the new head lock feature, users can now set the saw's head and limit the traverse, which is ideal for trimming and groove cutting. Featuring permanent left and right hand fences that have measurements on them, as well as 5 pre-set mitre stops at 0°, 15°, 22.5°, 30°, and 45°.

DWS777 Features:

• New 1850 Watt motor for powerful cutting in all materials
• Sliding left hand fence with measuring scale for improved material support and management
• Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
• The classic saw design improved and updated for the modern userImproved dust extraction efficiency
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications
• Compact internal rail design for huge cutting capacity in a highly transportable format
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation

DWS777 Specification

• Blade Speed: 6300 rpm
• Blade Bore [Metric]: 30 mm
• Max. Cutting Capacity (90°/90°) [Metric]: 270 x 62 mm
• Max. Cutting Capacity (45°/90°) [Metric]: 189 x 62 mm
• Product Height [Metric]: 590 mm
• Product Weight [Metric]: 14 Kg
• Blade Diameter [Metric]: 216 mm
• Power Output: 1100 W
• Depth [Metric]: 550 mm
• Max. Cutting Capacity (90°/45°) [Metric]: 173 X 62 mm
• Power Source: Corded
• Power Input: 1800 W
• Product Length [Metric]: 490 mm

What is Included:

• 1x DWS777-LX 216mm Sliding Compound Mitre Saw 1800W 110V
• 1x TCT tooth saw blade
• 1x Blade Allen Keys
• 1x Material Clamp

*Please note that 110V machines require a transformer plug and are not suitable for standard 240V UK sockets. Please see our range of 240V products for domestic purposes.
