Product Description

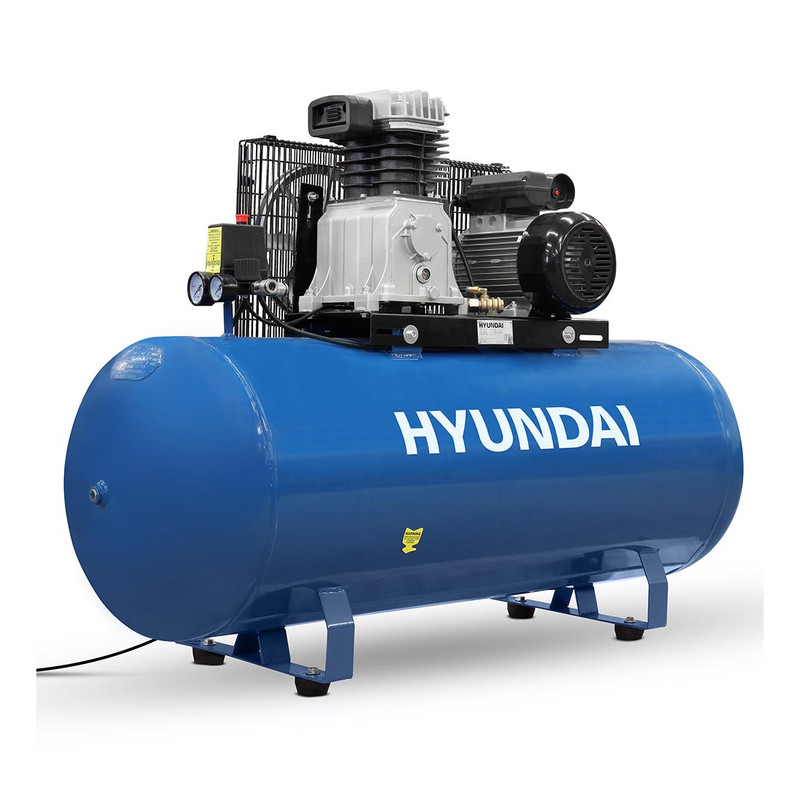

Hyundai HY3200S 200L Floor-Mounted Belt Drive Air Compressor 3hp 230V

The HY3200S is slow running belt drive air compressor for professional and commercial users, built to tackle the toughest requirements on a daily basis. This heavy duty air compressor has the capacity needed for powering mechanical, industrial and workshop tasks.

HY3200S Features:

• HY3200S air compressor designed for commercial and professional workshop use.
• A belt drive air compressor, powered by an efficient 230v 3hp electric motor.
• The large 200L rolled steel air tank provides the capacity for powering you through the most demanding of jobs.
• Single phase air compressor, with a displacement of 14cfm and a maximum pressure of 145psi / 10 bar.
• Ideal for workshop use.
• Covered by Hyundai 2 year warranty.
• Full spares are available to maintain your air compressor for years to come.

HY3200S Specification:

• Air Outlet Euro type: Quick release
• Connection Method / Cable Length (m): Hard Wired 13A 3 Pin UK Plug
• Cut-In Pressure (PSI/Bar): 116psi / 8bar
• Cut-Out Pressure (PSI/Bar): 145psi / 10bar
• Drive Type: Poly V Belt Drive
• Frequency (Hz): 50
• Maximum Pressure (PSI/Bar): 145psi / 10bar
• Motor Power (hp/kW): 3hp / 2.2kW
• Outlet Pressure: Regulation Type Adjustable
• Overall Dimensions (H x W x L) (mm): L x W x H (mm) 1460x460x1140
• Phase: Single
• Displacement (Cubic Feet Per Minute - L/min): 14Cubic Feet Per Minute / 396
• Rated Motor Speed (RPM) (rpm): 2850rpm
• Tank Capacity (L): 200
• Tank Material: Rolled Steel
• Voltage (V): 230v
• Model: HY3200S
• Noise @ 7m (dB): 70
• Net Weight (kg): 110
• Pump (RPM): 1050
• Air Flow - FAD 300L/min / 11CFM
• Tank Capacity (litres): 200
• Maximum Pressure (psi): 145
• Maximum Pressure (bar): 10
• Air Displacement (LPM): 396
• Air Displacement (CFM): 14
• Air Flow - FAD (L/MIN): 300
• Air Flow - FAD (CFM): 11

What is included:

• 1x HY3200S 200L Belt Drive Air Compressor 3hp 230V
